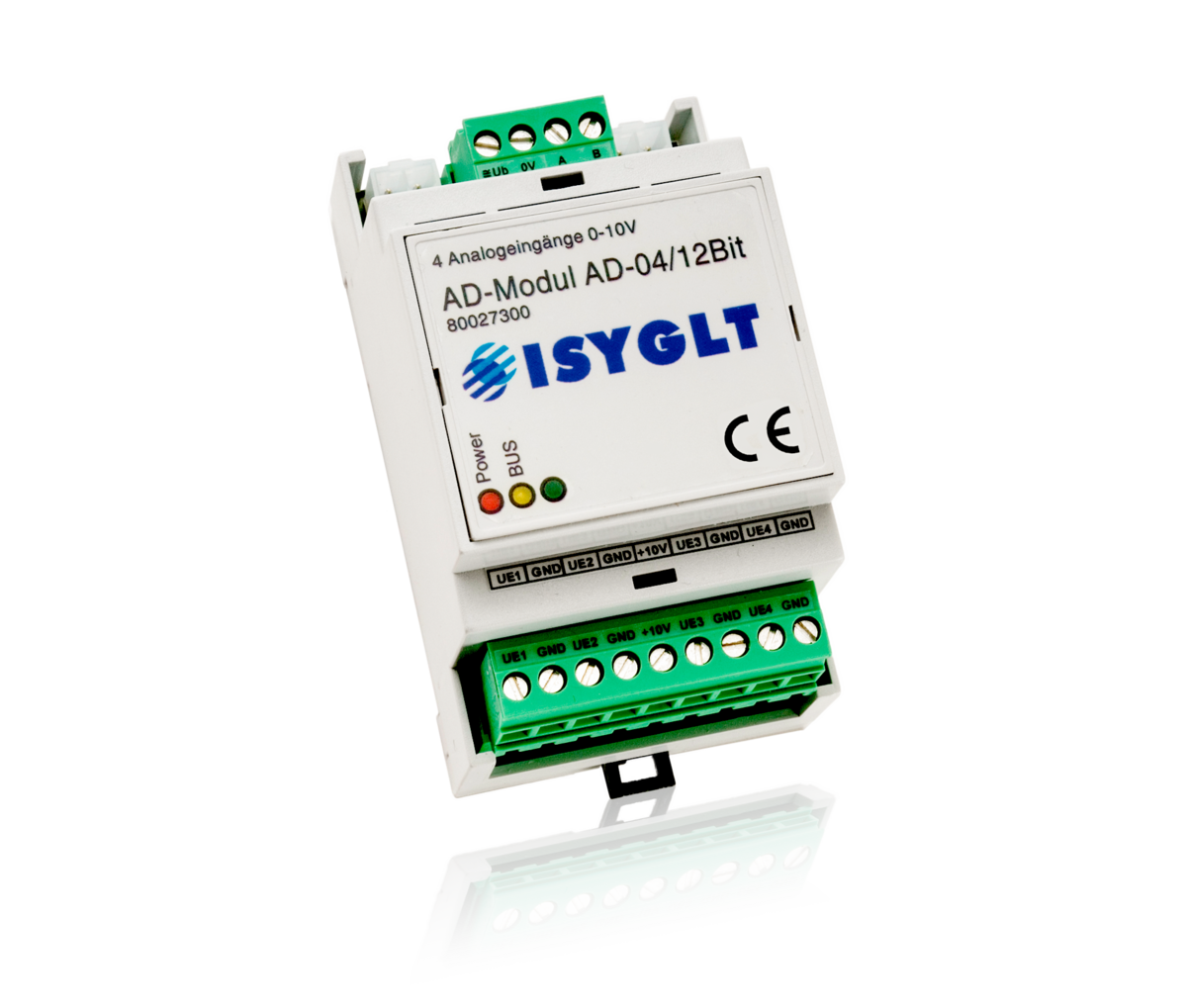

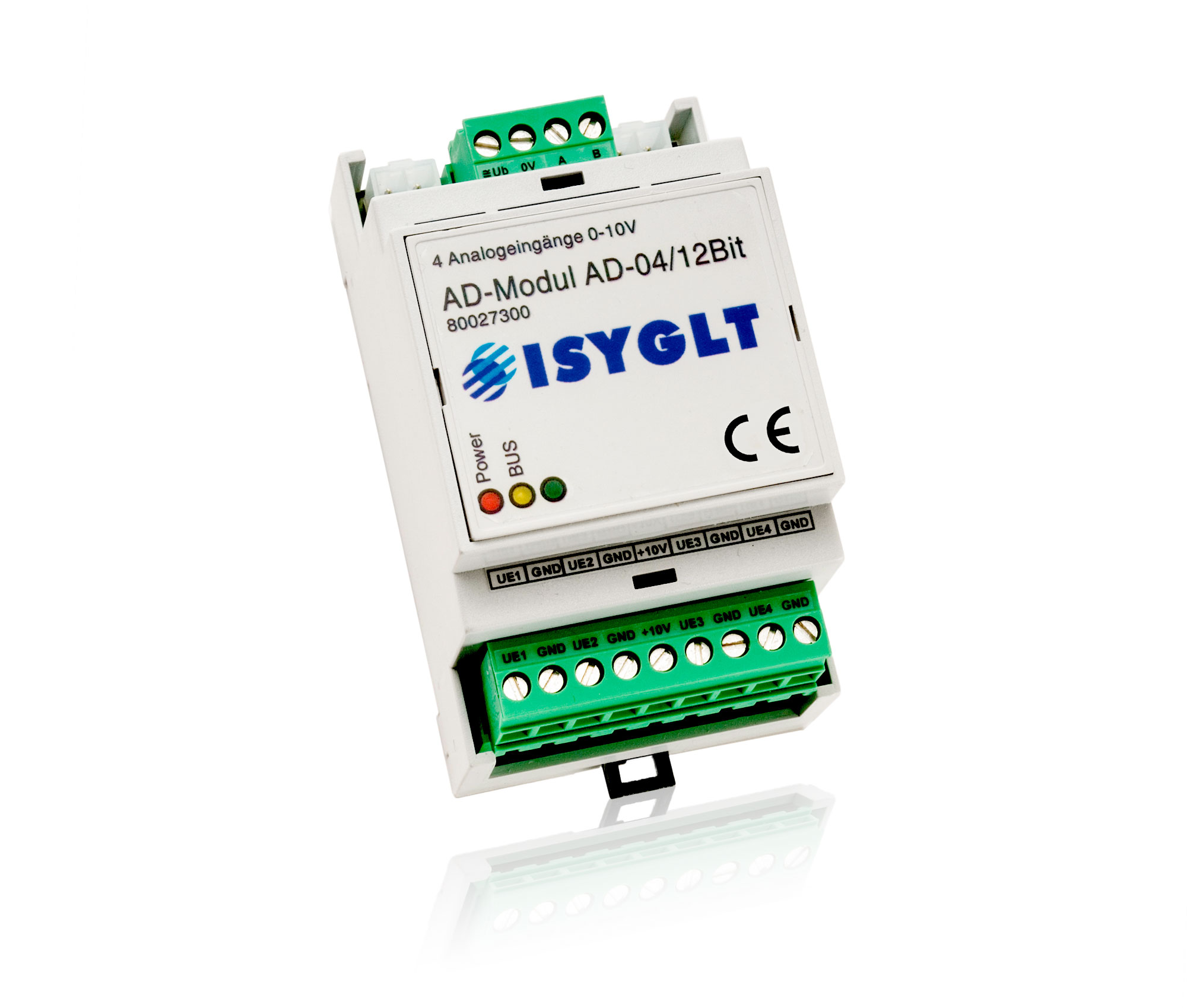

Analog Module AD-04/12Bit

Analog Input Module with 4 analog inputs for reading in 0-10V sensors.

Quick Facts

  • 4 analog inputs 0-10V, 8 or 12 bit resolution
  • reference voltage +10V
  • reading in sensors

The Analog Module is used to read in 4 separate analog values 0-10V into the subnet. The resolution of each channel is 12 bits. The individual analog channels are available in the Master Module for further links, depending on the application purpose.

Electrical Data

Operating voltage 12V-35V DC or 12V-27V AC
Current consumption max. 100mA at 35V, max. 140mA at 24V, max. 180mA at 12V
Input voltage 4 analog channels 12 bit resolution 0-10V (at 47kOhm)
Reference voltage output 1 output +10V, output current max. 10mA short-circuit proof
Isolation voltage 300V (subnet / analog inputs, reference voltage)
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection screw terminals pluggable
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85% r.h. non-condensing
Protection class IP30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 3 HP
Dimensions WxHxD 53x90x59mm
Weight 230g

Ordering Data and Conformity

Type designation AD-04/12BIT
Article no. 80027300
Make ISYGLT
Conformity CE

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located under the cover of the module.

Special function DIP switch 1

DIP-1 Setting
OFFNormal operation
ONCompensation (for long analog feed lines)



Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError BUS
blinkingInterference-free data transmission via the BUS line

Pin Assignment

4-pole plug top

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)

2x P-COM connectors

P-COM Subnet and operating voltage

9-pole plug below

UE1 Analog input 1
GND 0V Analog input
UE2 Analog input 2
GND 0V Analog input
+10V Reference voltage
UE3 Analog input 3
GND 0V Analog input
UE4 Analog input 4
GND 0V Analog input
