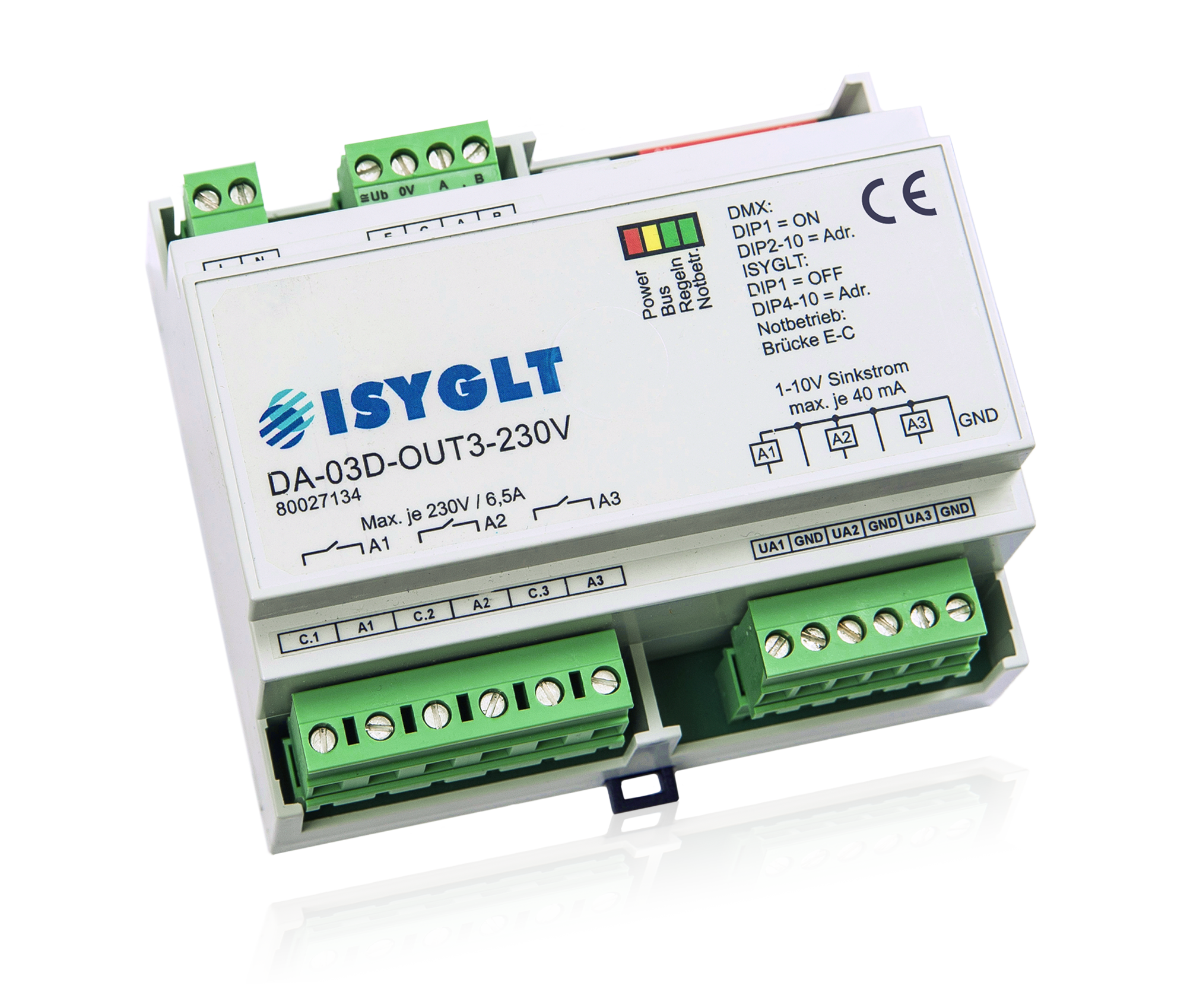

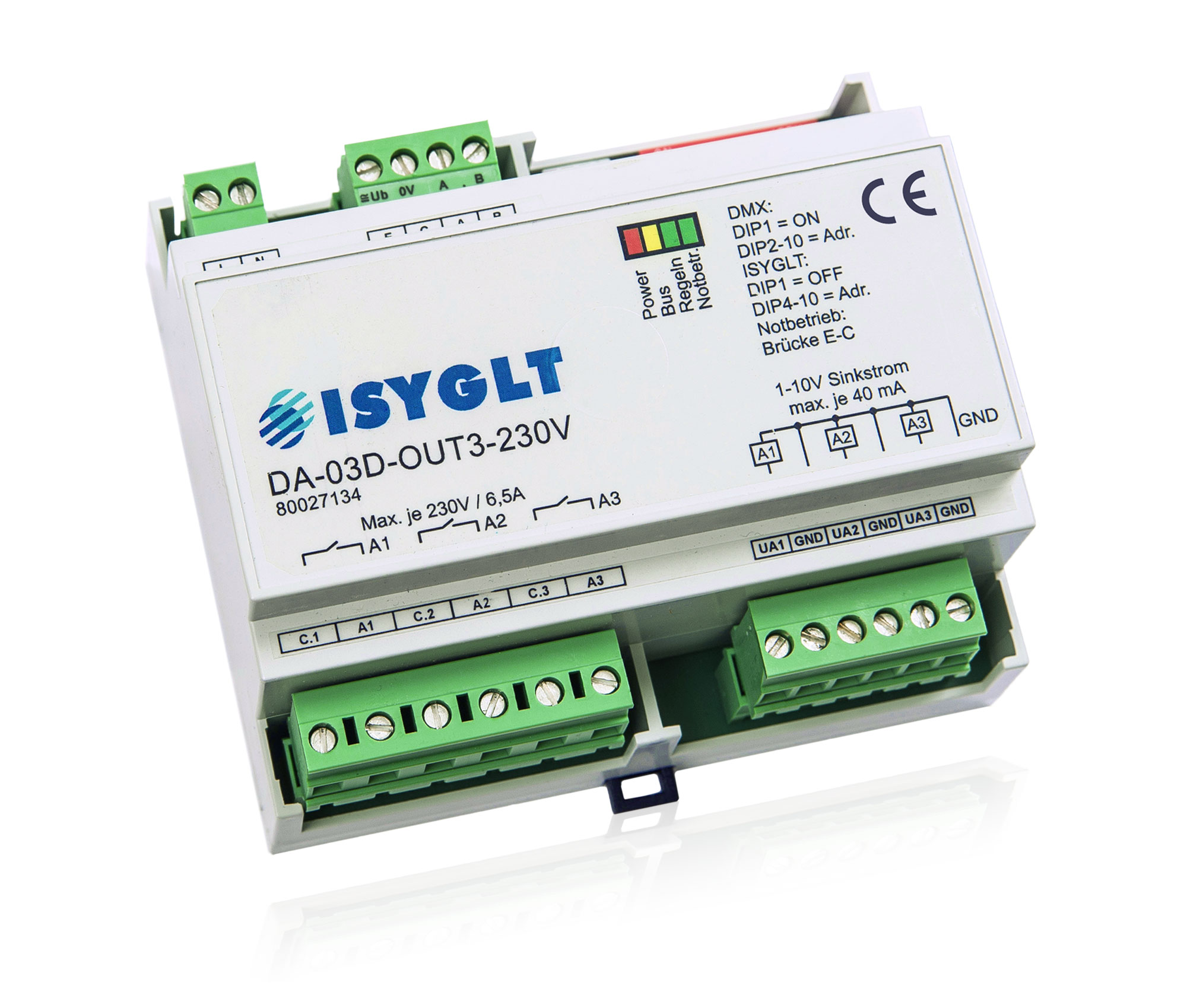

Analog Module DA-03D-OUT3-230V

Analog Output Module with 3 independent analog outputs for controlling dimmed fluorescent lamps with 1-10V ECGs. Each analog output has a relay switching output with a load capacity of 230V 1500VA.

Quick Facts

  • 3 analog outputs 1-10V
  • relay switching output to each analog output
  • control of dimmed fluorescent lamps (ECG 1-10V)
  • special function: emergency operation

The DA-03D-OUT3-230V Module is designed for the control of dimmed fluorescent lamps with ECG 1-10V. There are 3 analog outputs 1-10V available, each of which can be loaded with 40mA. Each analog output has a relay switching output with a load capacity of 230V 1500VA. These relay outputs are designed with a triac pre-ignition for the high inrush currents of the ECGs and are automatically activated depending on the analog values.

The following functions can be performed independently by the DA module:

  • Calculation of increases with time constants from 0.5 seconds to 12 hours
  • Autonomous running from current analog ACTUAL values to preset analog SETPOINT values at a preset speed (optionally in a preset time)
  • Feedback of the termination of the analog value output after the execution of time functions
  • Stop function during the execution of time functions
  • OVERSAMPLING error correction (With the so-called "OVERSAMPLING", the DA module automatically corrects the jumps in the analog values caused by the cycle times of the BUS system. For this purpose, the analog values between the BUS cycles are converted by linearisation into the resolution from 8 to 12 bits. This avoids visible steps when dimming fluorescent lamps, for example. During programming the OVERSAMPLING is called SOFT function.)
  • Execution of blinking functions
  • Adaptation to different light sources and dimmers

Electrical Data

Operating voltage 230V 50/60Hz
Operating voltage BUS 12V to 35V DC
Current consumption BUS 10mA (24V)
Output voltage 3 analog channels, 8 bit (internal 12 bit) resolution 1-10V
Sink current (1-10V) 40mA per channel
Relay output 3 outputs 230V 1500VA (max. 6.5A) with triac zero voltage switch
Isolation voltage 500V (subnet / analog outputs)
Connection pluggable screw terminals
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Protection class in non-installed state IP30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP
Dimensions WxHxD 106x90x59mm
Weight 280g

Ordering Data and Conformity

Type designation DA-03D-OUT3-230V
Article no. 80027134
Conformity CE

DIP switch

10-pole DIP switch for setting the ISYGLT BUS address (0-127) or DMX address is located at the top right of the module's terminals.

Special function DIP switch 1

DIP-1 Setting
OFFISYGLT operation: DIP4-10 ISYGLT address
ONDMX operation: DIP2-10 DMX address

Function Indicators (LEDs on the Module)

redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOffNo BUS and timeout waiting time expired
OnNo BUS, but timeout waiting time has not yet expired
blinkingInterference-free data transmission via the BUS line
greenRegelnblinkingSignals the regulation of the outputs (LED blinks until the desired final value is reached)
greenNotbetriebOffEmergency operation inactive
OnEmergency operation active

Parameterisation with ProgramDesigner

In the ISYGLT ProgramDesigner there are various parameterisation possibilities:

  • Basic settings: minimum and maximum values, as well as dimming curves
  • Special: speed interpretation, oversampling and feedback
  • Digital outputs, derivative time, switch-on threshold and switch-off delay
  • Emergency operation
  • User curves

Pin Assignment

2-pole plug top left

L L-230V Operating voltage for module
N N-230V Operating voltage for module

4-pole plug top center

E Emergency operating input (connection E-C)
C Emergency operating input (connection E-C)
A Subnet (BUS A, RS-485)
B Subnet (BUS B, RS-485)

6-pole plug below left

C.1 Common for A1
A1 Output 1
C.2 Common for A2
A2 Output 2
C.3 Common for A3
A3 Output 3

6-pole plug below right

UA1 Analog output channel 1
GND Ground channel 1
UA2 Analog output channel 2
GND Ground channel 2
UA3 Analog output channel 3
GND Ground channel 3


Article no.: 80027134

Analog output module with 3 independent analog outputs for controlling dimmed fluorescent lamps with 1-10V ECGs. For each analog output there is a relay switching output with a load capacity of 230V / 1500VA.
