EnOcean Gateway GW-EnOcean-08

EnOcean Gateway for wireless connection of sensors and actuators, such as additional pushbuttons, temperature sensors, motion sensors, etc. to the ISYGLT BUS technology.

Quick Facts

  • wireless integration of sensors / actuators into existing installations
  • wireless control of lighting systems without BUS line with ISYGLT or DALI
  • preserves valuable building fabric, no further cables necessary

The EnOcean Gateway is used to connect EnOcean sensors/actuators (max. 30 EnOcean S/A), such as pushbuttons, remote controls, temperature sensors, etc. to the ISYGLT BUS technology. The Gateway can manage up to 8 virtual sensor/actuator modules. In turn, up to 4 sensors/actuators can be operated on each virtual sensor/actuator module. The EnOcean-ISYGLT-01 and EnOcean-DALI-01 sensor/actuator modules can also be integrated.

Electrical Data

Supply voltage 9-24V DC
Current consumption 15mA
Connection RJ10 plug, RS-485-BUS
Assembly screwing, gluing, inserting

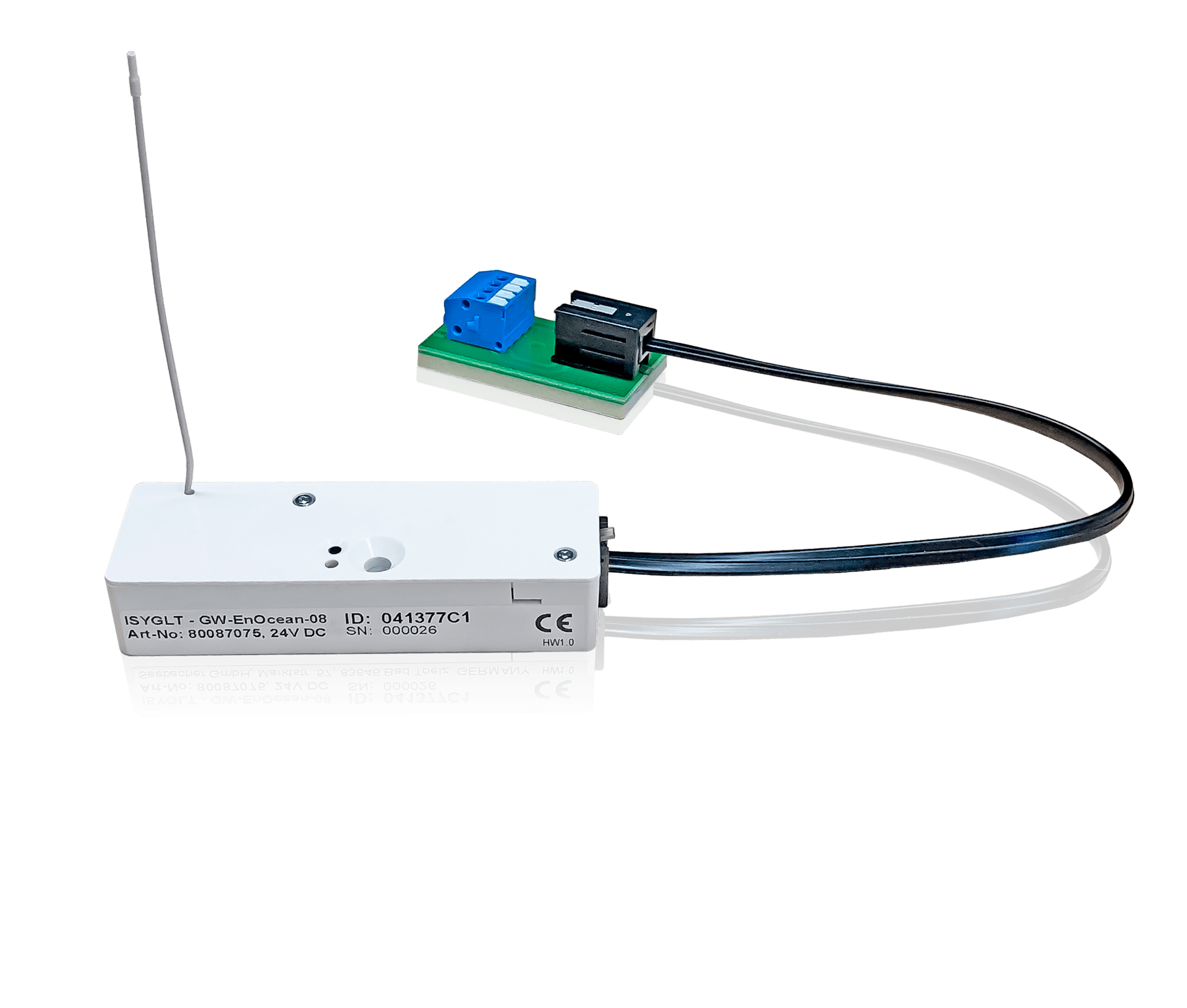

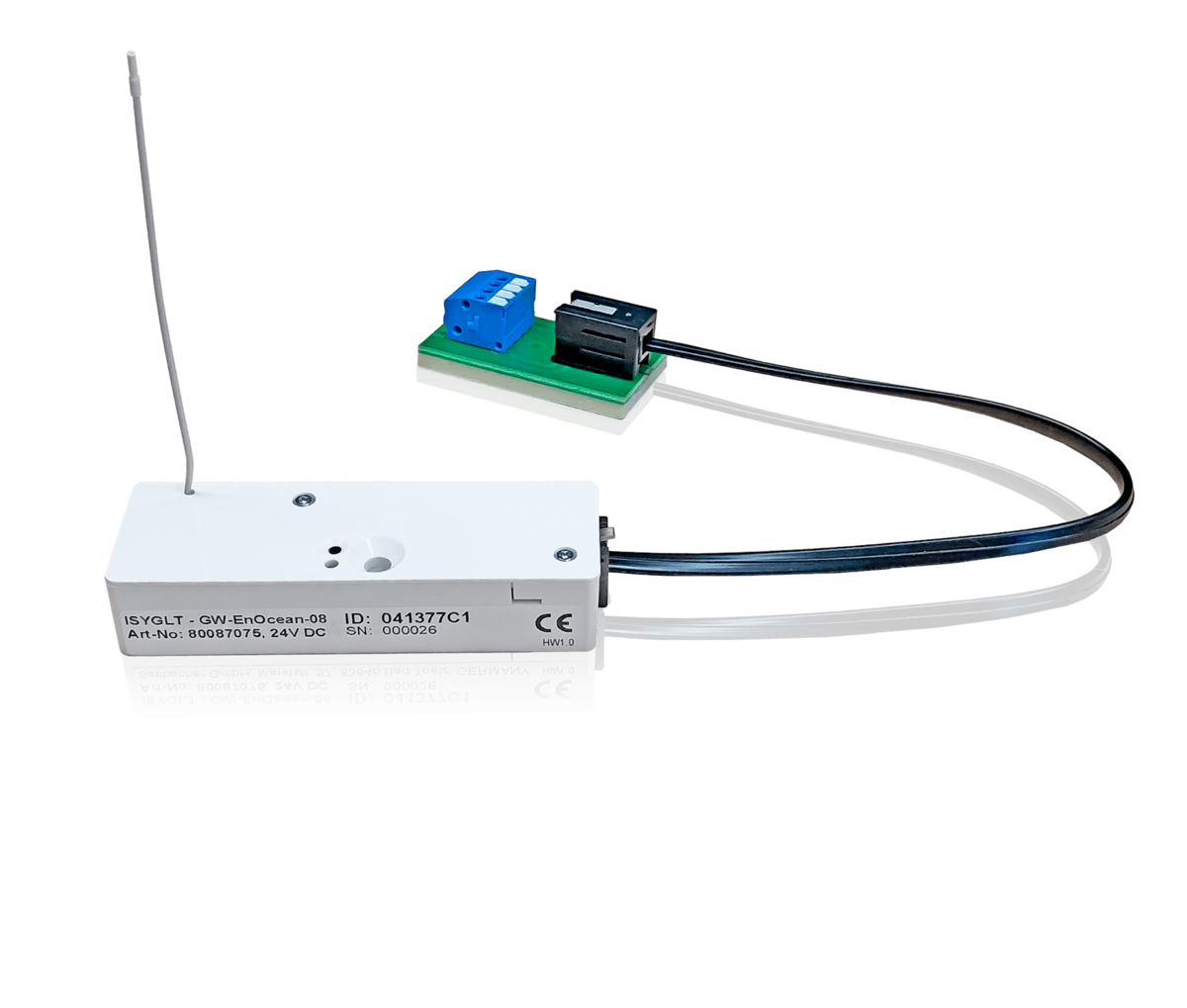

Scope of delivery 20cm cable, RJ10 distributor
Operating temperature -20°C to +65°C
Storage temperature -20°C to +70°C
Humidity 0-85% r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design Mini PVC housing
Dimensions LxWxD 79.5 x 25.5 x 16mm
Weight 37g (incl. cable and connection adapter)

Ordering Data and Conformity

Type designation GW-EnOcean-08
Article no. 80087075
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Wiring Diagrams

Commissioning

The module has no DIP switches.
The address is set via the virtual addressing module "ISYGLT-ADR" in the ProgramDesigner.

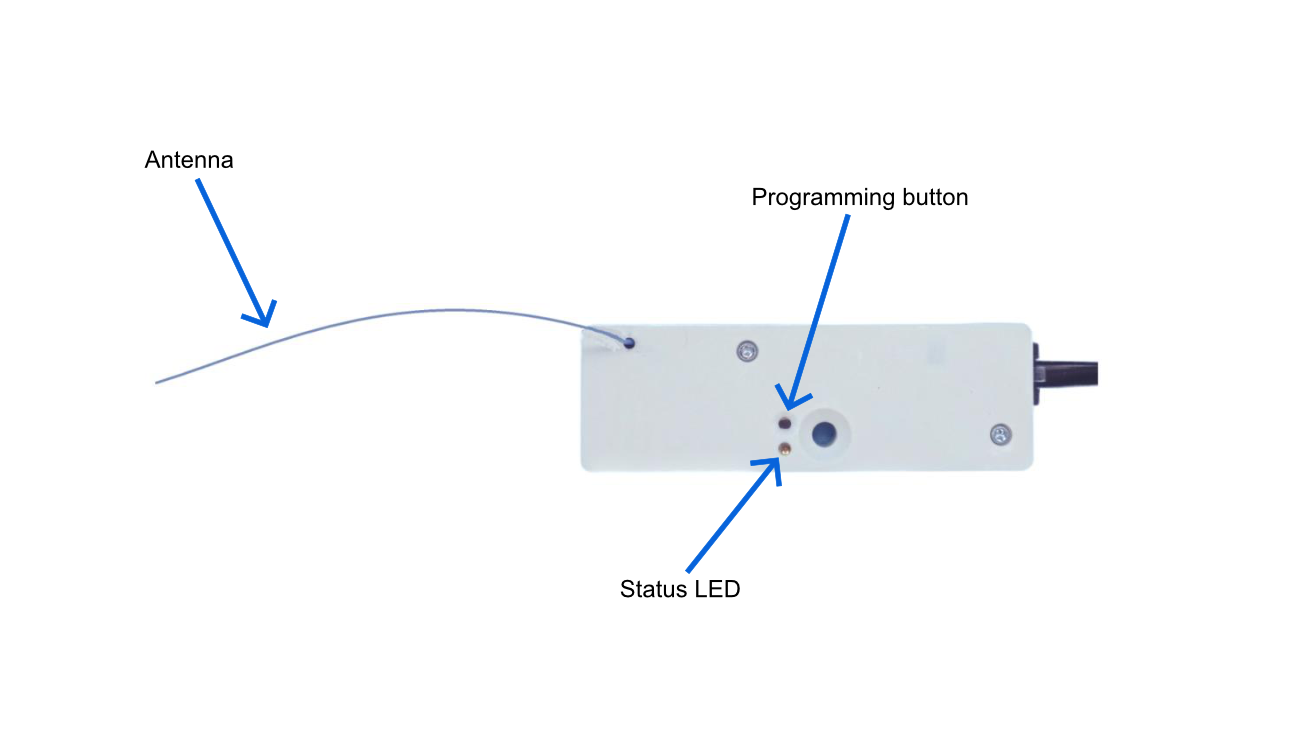

State of the status LED
LED stateMeaning
Flashes slowlyThe module is ready for operation in delivery state without BUS address.
Flashes quicklyThe module is ready for programming and addressing.
OFFThe module has been successfully programmed and uses 1-8 BUS addresses (check via simulator (debugger) in ProgramDesigner).



Programming mode
Programming buttonOperating mode
Push > 3sThe module changes to the address programming mode (LED flashes quickly). Now the addressing can be done with the ProgramDesigner.
Briefly pushExiting the address programming mode
Push > 8sReset - the module is returned to the delivery state without address(es).

Coupling to EnOcean components is carried out in the ProgramDesigner. Information on this and on the virtual sensor/actuator modules can be found in the current ProgramDesigner version in the "EnOcean" module group.

These virtual modules get a BUS address. The EnOcean components are configured in the parameters of the virtual modules. The virtual sensor/actuator modules are also automatically assigned to the gateway by the BUS address assignment of the gateway module.

Each ISYGLT GW-EnOcean-08 can manage up to 8 sensor/actuator modules.


Software


Pin Assignment

4-pole plug

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)
