Digital IN Module IN-02U-S4

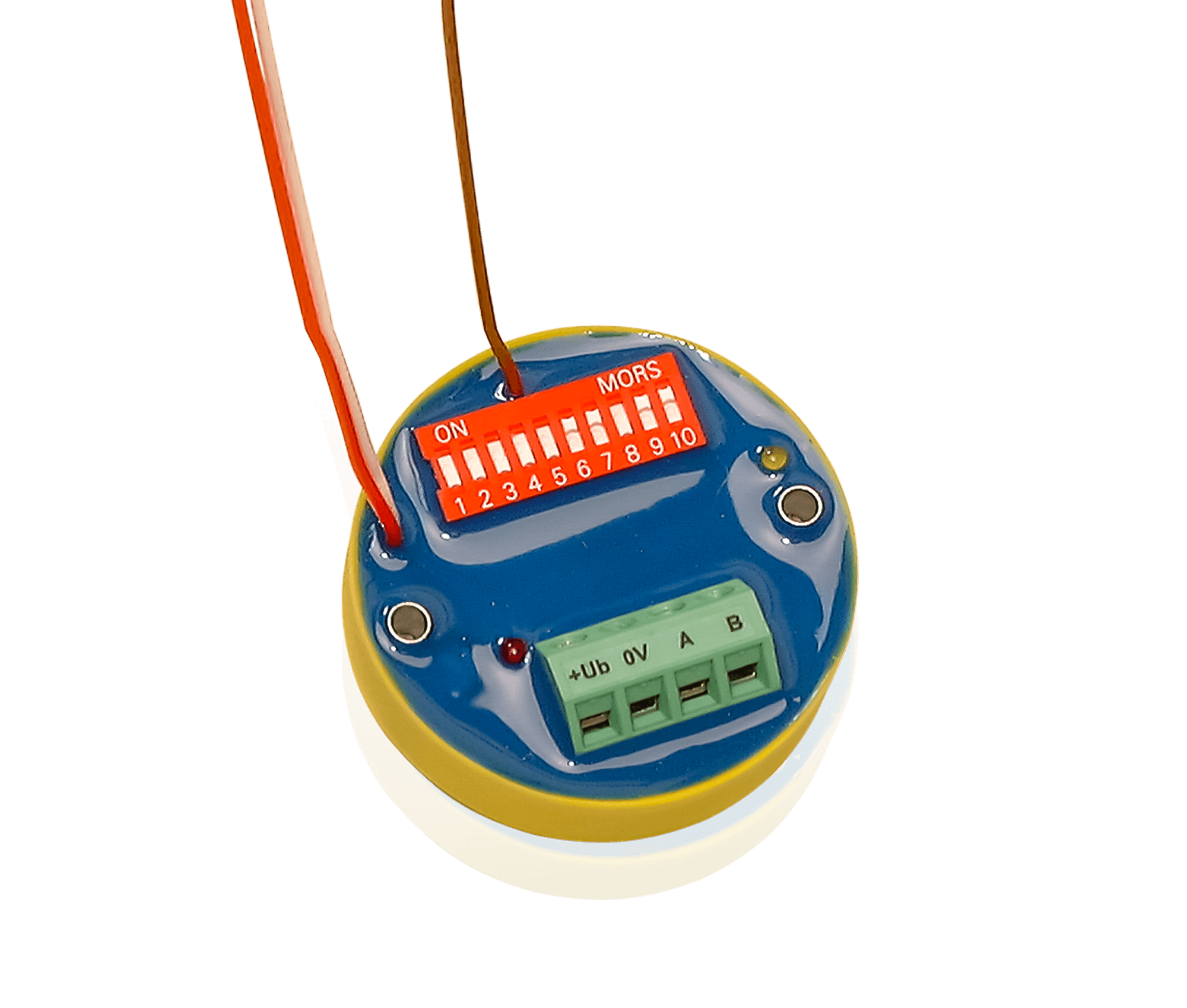

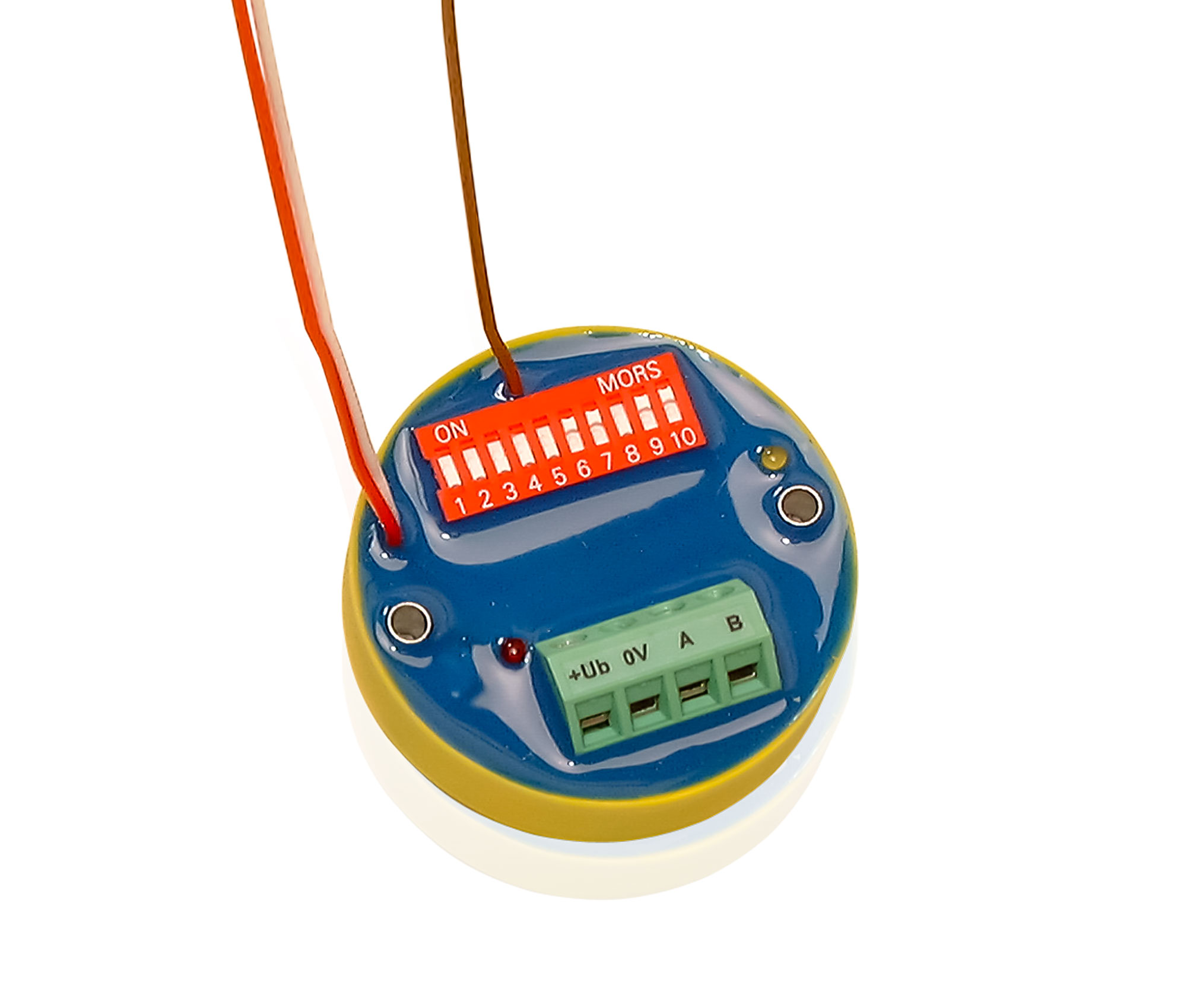

Flush-mounted Input Module for connecting conventional pushbuttons and switches to the subnet. The module can be used to transfer 2 commands to the BUS system. This module offers the possibility of subaddress management.

Quick Facts

  • 2 digital inputs
  • Subaddress management
  • Connecting standard buttons
  • Evaluation of presence sensors
  • Systems with many addresses in one subnet

The flush-mounted IN Module is used to connect conventional pushbuttons and switches to the subnet. With the module 2 independent commands can be transferred to the BUS system. The buttons/switches are connected by means of wires. The difference to the standard IN-02U Module lies in the possibility of subaddress management. With this it is possible that four IN-02U-S4 Modules share one address.

Type designation IN-02U-S4
Article no. 80024024
Operating voltage 12-27V DC or 12-27V AC
Current consumption 5mA at 24V DC
Inputs 2x 12-30V DC, 5mA (potential-free contact) via optocoupler (4.7kOhm)
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection screw terminals 2.5mm² for BUS, solid wires 0.8mm for inputs
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0...85 % r.h. non-condensing
Protection class IP 20
Design encapsulated in yellow plastic cap for installation in commercially available flush-mounted boxes or third-party devices
Dimensions DxH 50x18mm
Weight approx. 90g
Make ISYGLT
Conformity CE

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the module.

Special function DIP switches 9 and 10

SubaddressDIP-9 DIP-10Corresponds in the program to the outputs
0OFFOFFE**.1E**.2
1OFFONE**.3E**.4
2ONOFFE**.5E**.6
3ONONE**.7E**.8

Each four of these modules share one module address.

Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOffError BUS
blinkingInterference-free data transmission via the BUS line

Pin Assignment

4-pole connector

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (subnet RS-485)
B BUS B (subnet RS-485)

3-pole wire connector

White Input 1
Brown Input 2
Red COM.A (+Ub-1V)
