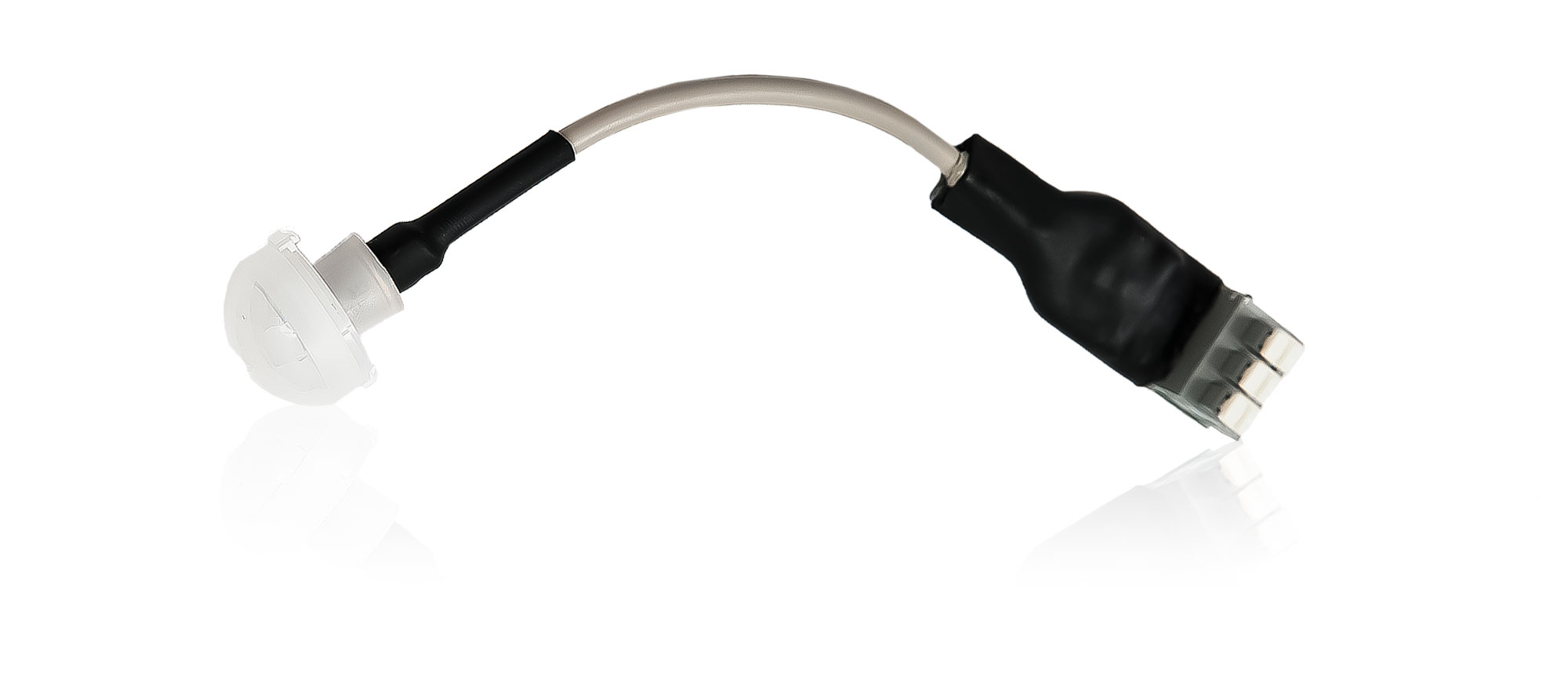

Motion Sensor BW-06

The detection range of the Mini Motion Sensor is optimised for high rooms up to 12.5m. The BW-06 requires 24V and has an output that outputs the motion impulses. Optimum function is guaranteed by the connection to a binary input of an I/O Module.

Quick Facts

  • Range max. 27.8m x 33m (at 12m room height)
  • Detection angle oval 93° x 102°
  • Highly sensitive PIR sensor
  • Miniature design

The ISYGLT BW-06 Motion Sensor is based on passive infrared monitoring technology. The very small round lens is used here to monitor 92 zones in a radial manner. The detection range is optimised for high rooms up to 12.5m. Due to the integrated line amplifier, the length of the control line up to the I/O Module or 24V power module can be up to 100m.

Due to its small size, the Motion Sensor can be easily integrated into devices or lamps. As a delivery variant we also offer a version under the type designation "ISYGLT BW-06-UP" for mounting on commercially available switch boxes. If required, please inquire about the possibilities for corresponding switch ranges from the various manufacturers.

Electrical Data

Operating voltage 12V to 30V DC
Current consumption max. 10mA without load
Output Vin -1.5V, 200mA short-circuit proof PNP, max. 100m cable length to input module
Connection spring type terminal 3-pole 2x 0.25 - 0.75mm² each
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0-85 % r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design white plastic lens for gluing into devices or luminaires
Dimensions DxH 22 x 20.2mm + 125mm cable
Weight 11g without flush-mounted cover plate

Ordering Data and Conformity

Type designation BW-06
Article no. 80087191
Conformity CE

Note 1: For reliable detection, the sensor must rise at least 5.6 mm from the mounting plate.
Note 2: Due to the design, a correspondingly deep drilling is sufficient for panel mounting.
Note 3: The height measurement does not include any residues of the shape cut.

Tender Documents

Instruction Manuals

Wiring Diagrams

Information on the detection range

Pin Assignment

3-pole connection

Ub Operating voltage +24V DC
0V Operating voltage 0V DC
OUT Switching output (pulses +24V DC)

Additional Equipment

  • 80085032 ISYGLT - LSR ball protection basket for sensor protection


Type designation Article no. Description
BW-06-UP 80087192 Mini Motion Sensor for mounting in flush-mounted box; supplied in switch range
BW-06-AP 80087193 Mini Motion Sensor in surface-mounted housing


Article no.: 80087191

The detection range of the Mini Motion Sensor is optimized for high rooms up to 12.5m. The BW-06 requires 24V and has an output which issues the motion pulses. Optimum function is guaranteed by connecting it to a binary input of an I/O module.
