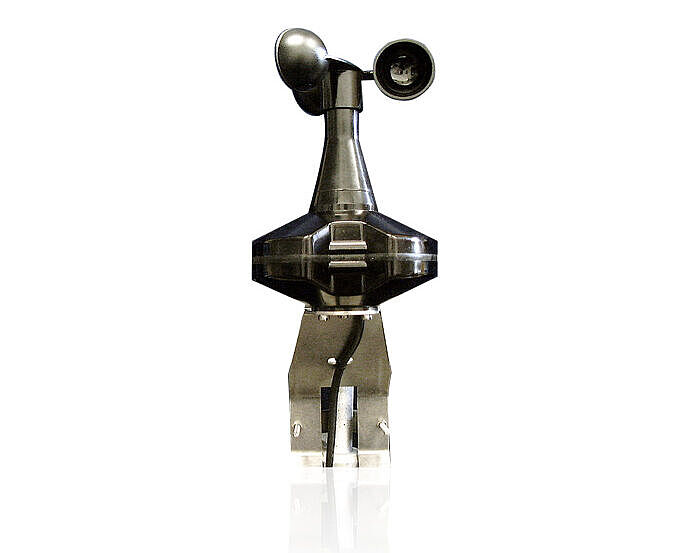

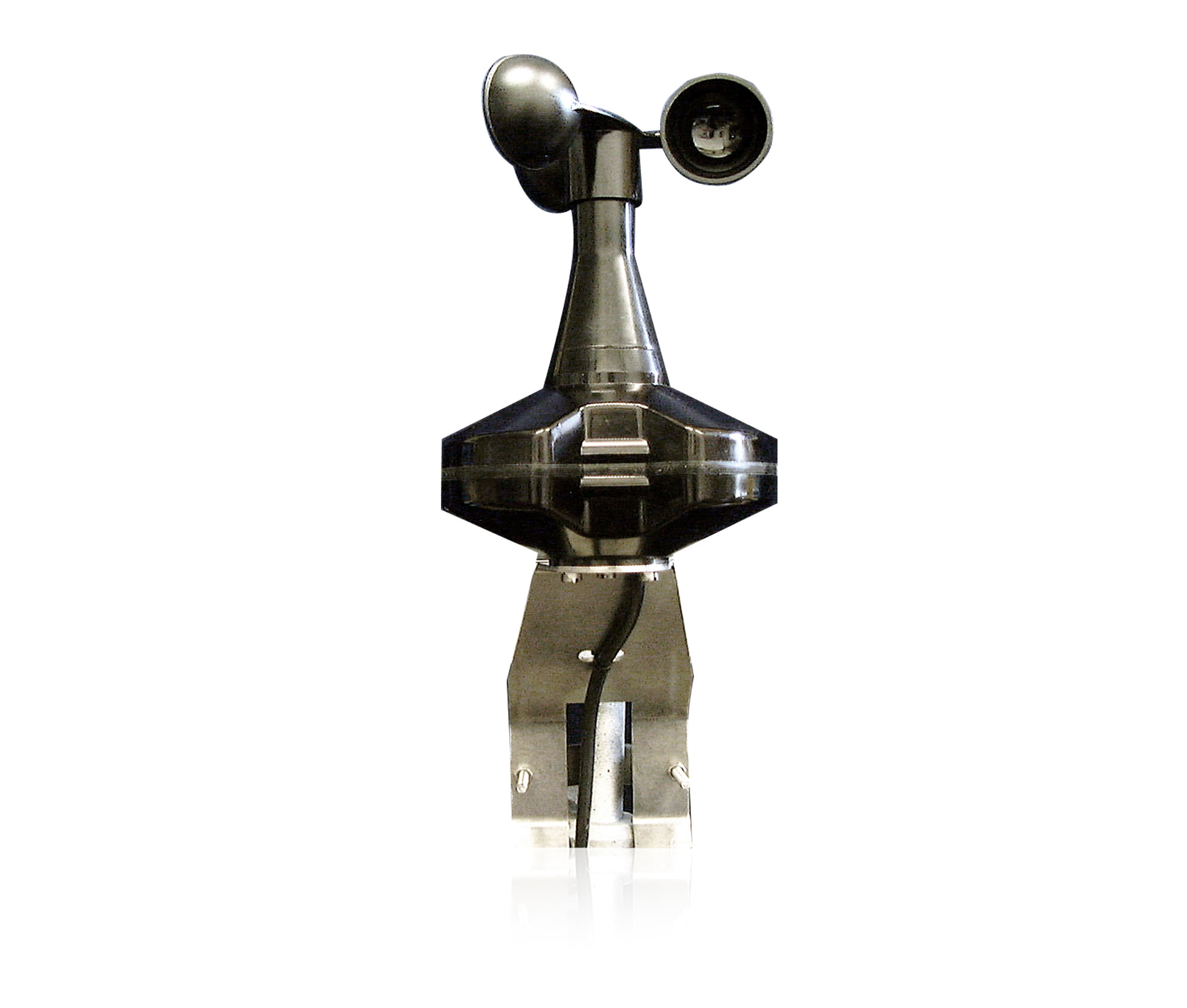

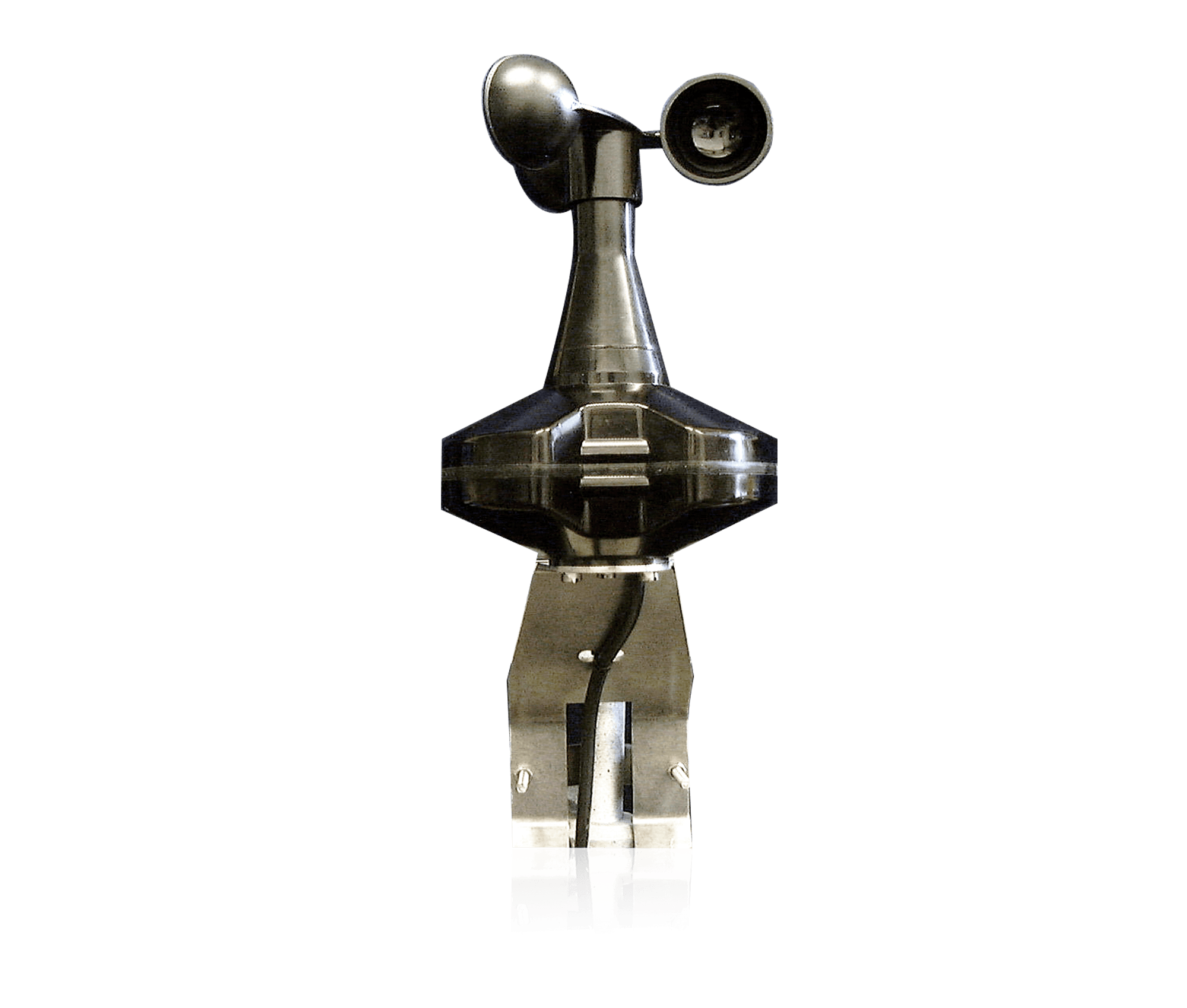

Weather Combi Sensor WG-NW-KOMBI

The Weather Combi Sensor is used to measure the meteorological parameters precipitation, wind speed and brightness in east, south and west direction.

The data is transferred to the ISYGLT Master via the WSM-01E Module.

Quick Facts

  • Wind speed
  • Rain
  • Brightness
  • Dew protection

The Weather Combi Sensor is used to measure the meteorological parameters: precipitation (yes/no), horizontal wind speed and brightness in east, south and west direction. These are output as electrical analog current or voltage signals and read into the ISYGLT system via the ISYGLT Weather Sensor connection box or the WSM-01E Module for further processing.
The measured values are used, for example, to control downstream safety devices for awnings, external blinds, etc.
The sensor electronics are heated as protection against condensation, but there is no heating for the impeller. Therefore, the sensor should only be used for systems in which ice build-up and icing pose no danger! For applications sensitive to icing, we recommend our wind sensor compact.
When using mounting adapters (angle, cross bar, etc.), a possible influence of turbulence must be taken into account.

Choice of installation location
On flat roofs, the Weather Combi Sensor should be installed at a height of 3m and in the middle of the roof instead of at the edge of the roof so that any preferred directions are avoided.
To ensure that the brightness sensors clearly detect the position of the sun, the Weather Combi Sensor must be aligned with a compass so that the precipitation window points north. This ensures that the brightness sensors are assigned according to the direction of the compass.

The Weather Combi Sensor is designed for mounting on a mast tube (Ø 35-50mm). This type of mounting allows the sensor to be easily aligned as described above. The sensor should not be affected by obstacles or shadows on any side. The electrical connection is carried out according to the wiring diagram.
Attention! Installation and operation under weather conditions is only permitted in vertical position.

When properly installed, the device is maintenance-free. Heavy environmental pollution can cause the wind speed sensor to clog the gap between the rotating and stationary parts. This gap must always be kept clean so that the cup star turns smoothly. This can be obviously checked at low wind speeds. If the cup star only starts at higher wind speeds or not at all, an inspection by the manufacturer is recommended.
Furthermore, the housing area under which the brightness and precipitation sensors are located should be as free as possible from dust deposits in order not to falsify the measured values. Rain provides a largely independent cleaning of the housing surfaces.

Dew protection
The device has an internal dew protection. It serves to protect the inside of the housing against condensation. It is not capable of protecting the housing from icing.

Electrical Data

Operating voltage 24V DC +/- 25% or 24V AC +/- 15%
Current consumption 150mA without dew protection / approx. 600mA with dew protection
Ambient temperature -40°C...+60°C
Storage temperature -40...+70°C
Humidity 0...100 % r.h. non-condensing
Cable 10m long, LiYCY 16 x 0.14 mm², UV-resistant, maximum 100m when supplied with nominal 24V and min. wire cross-section of 0.5mm²
Mounting stainless steel bracket on mast

Weather Data

Wind speed

Measuring range1...40m/s


Precipitation detection

Measuring rangeprecipitation yes/no
Sensitivityfine drizzle
Electrical output0V = precipitation; 10V = no precipitation
Switch-on delayapprox. 15 precipitation particles in 60 seconds
Switch-off delayapprox. 2min
Output load> 100 kOhm


Brightness detection

Measuring range0-150 kLux
Spectral range700...1.050nm
Electrical output3x 0...10V (= 0...150kLux), east, south and west direction



Measuring range0-250 lux
Spectral range700...1.050nm
Electrical output1x 0...10V (= 0...250 lux)

Design, Dimensions, Weight

Design plastic housing, for mounting on a mast tube (Ø 35-50mm)
Dimensions (HxD) 335x130mm
Weight 1550g

Ordering Data and Conformity

Type designation WG-NW-KOMBI
Article no. 80086030
Conformity CE

Tender Documents

Instruction Manuals

Parameterisation with ProgramDesigner

Information on the parameterisation can be found at the Weather Sensor Module WSM-01E.

Pin Assignment

Connecting cable

NumberWire colourFunction
1WhiteSupply voltage + at 24V DC or 24V AC
2BrownSupply voltage - at 24V DC or 24V AC
3GreenPrecipitation detector (+)
4YellowCommon analog GND
5GreyBrightness sensor; west (+)
6OrangeBrightness sensor; south (+)
7BlueBrightness sensor; east (+)
8RedWind speed (+)
11White/BrownTwilight value
12Black/BrownCommon analog GND
13White/YellowReserve (TXD-)
14White/OrangeReserve (TXD+)
15White/RedReserve (RXD-)
16White/BlackReserve (RXD+)

To top

Additional Equipment

  • Weather Sensor Module WSM-01E
  • Mast tube (Ø 35-50mm)
  • Bracket for wall
  • Adapter for traverse
  • Traverse


Article no.: 80086030

The Weather Combi Sensor is used to measure the meteorological parameters precipitation, wind speed and brightness in east, south and west direction. Via the WSM-01E module the data are transmitted to the ISYGLT Master.
