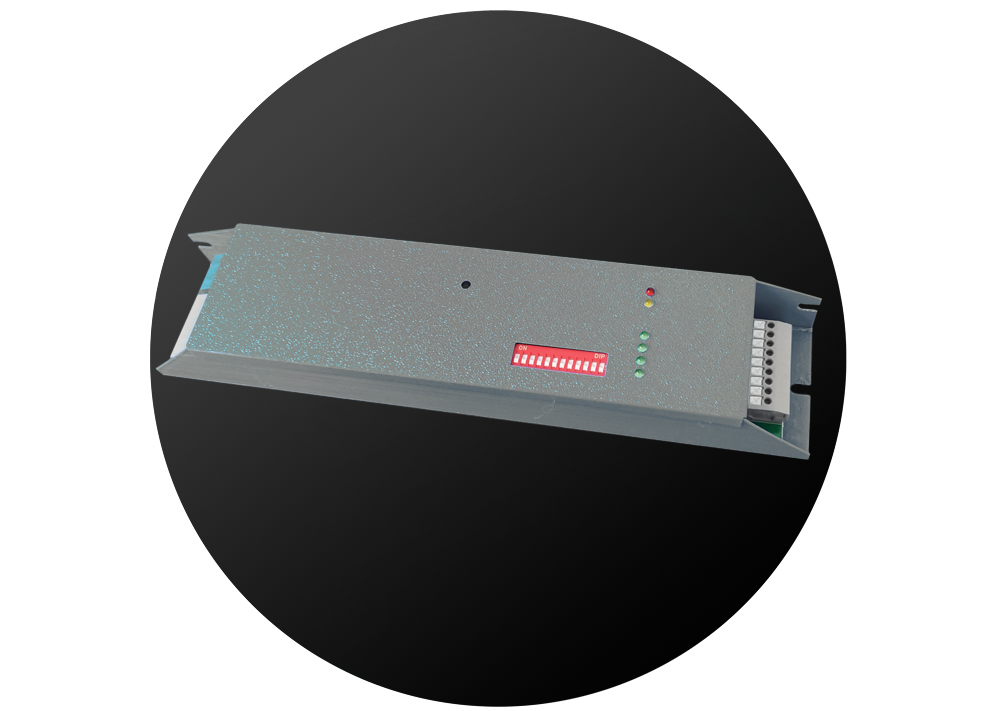

OUT NOW! Our new LED dimmer LED-04B-ANA-V2
Perfect dimming of light in theatres, event halls and concert halls
With this dimmer, LEDs can be dimmed down to 0% precisely and without flickering. Our non-PWM dimmer is suitable for all types of LEDs that can be controlled via constant current or unregulated constant voltage up to 52V.
Non-PWM dimmer
This dimmer works completely without pulse width modulation. It makes it perfectly possible to control the brightness of the LEDs between 0% and 100% with a dimming resolution of 19 bits (internal resolution). The LED dimmer can be set from speed calculation to absolute time calculation by parameterising each channel. This allows all conceivable control tasks to be easily implemented: from individual light dimming to use for complex light and colour scenarios.
To the LED-04B-ANA-V2 product page
Our ISYGLT system, which we also use to programme the functions of all systems, is also available for optimum integration. The ISYGLT system offers the best combination of performance / speed and reliability / failure safety in compliance with all standards, including emergency lighting functions. Added to this are the almost infinite possibilities of ISYGLT's free programmability.
More about technical details:
- 4 dimming channels 250mA to 1550mA
- Dimming 0-100%, internal 19-bit resolution
- ISYGLT or DMX512 8/16-bit protocol, DMX-RDM and DALI
- NON-PWM flicker-free dimming (amplitude/analogue dimming)
Depending on the configuration and LED type, this dimmer can control LEDs with a total output of up to 300W (4x 75W). Channel coupling is possible for LEDs with higher currents. When coupling, the physical outputs can be defined as main current and precision current. For the output with the precision current definition, we recommend calibrating a lower current (e.g. 300mA). This allows the dimmer to be dimmed up very smoothly from the lowest dimming range, especially for LEDs with high currents (e.g. 2500mA).
Areas of use:
We recommend this dimmer for all areas and applications where perfect dimming down to the minimum and - thanks to analogue dimming - healthy and camera-compatible dimming of the lighting is important.
- Planetarium
- Theatres
- Museum, gallery, exhibition
- Clinic and nursing home
- Office and other workplaces
- School and educational institution
- Hotel and conference room
- Shopping centre and shop
Special functions and options of the LED-04B-ANA-V2:
- Calculation of rise times from 0.5 seconds to 12 hours
- Self-controlled movement from current ACTUAL values to specified TARGET values at a specified speed (optionally in a specified time)
- Protocols: ISYGLT, DMX 8-bit, DMX-16B (L-H), DMX-16Bit (H-L), DMX-RDM, DALI-II, DT6 and DT8
- 19-bit analogue resolution - this corresponds to 524,288 steps from 0-100%
- Standardised power definitions for all protocols
- Synchronisation function for current setting, minimum value synchronisation mode
- Channel coupling function with optional definition of a precision channel
- ‘Smooth switch-off’ function
- Current limiting function for commissioning (e.g. if luminaires for the painter are still covered)
- Customisation for different LED modules
- Complex emergency operation function
Data sheet, wiring diagrams and detailed technical data can be found here:
