We call our switching actuators I/O Modules. In addition to the output contacts, the I/O Modules also have binary inputs. There are different designs and modules for different applications, whose inputs/outputs have different physical properties.
ISYGLT I/O Modules
-

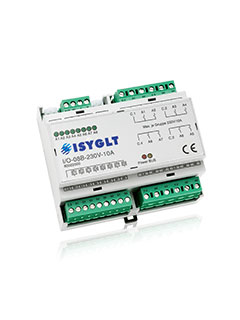

I/O-08B-230V-10A
I/O module with 8 binary inputs and 8 relay outputs. For control tasks that are switched with 230V. -
I/O-08B-24V-1A
I/O module with 8 binary inputs and 8 relay outputs. For control tasks that only require low voltages. -

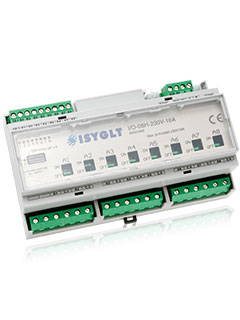

I/O-08H-230V-16A
I/O module with 8 optocoupler inputs 12-48V AC/DC and 8 relay outputs 230V/16A with manual actuation lever. Various parameterizable special functions. -

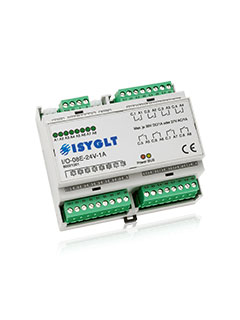

I/O-08E-24V-1A
I/O module with 8 binary inputs and 8 photomos relay outputs for applications with increased switching frequencies. -

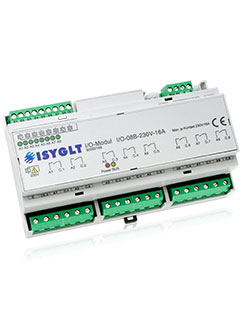

I/O-08B-230V-16A
I/O module with 8 binary inputs and 8 relay outputs. For control tasks that are switched up to 230V/16A. -
I/O-04B-230V-16A
I/O module with 4 binary inputs and 4 relay outputs. For control tasks that are switched with 230V. -

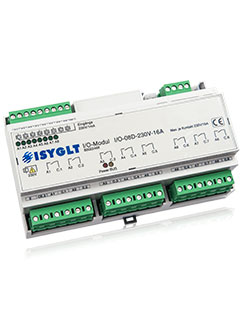

I/O-08D-230V-16A
I/O module with 8 optocoupler inputs 230V AC and 8 relay outputs 230V/16A. Special functions: 1 emergency input, emergency operation circuit. -
IN-02UC
Flush-mounted input module for coupling conventional pushbuttons and switches to the subnet. With this module 2 commands can be transferred to the BUS system. -

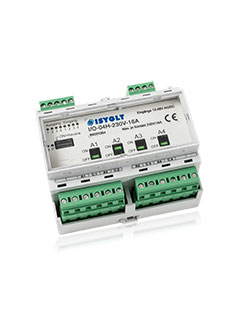

I/O-04H-230V-16A
I/O module with 4 optocoupler inputs 12-48V AC/DC and 4 relay outputs 230V/16A with manual actuation lever. Various parameterizable special functions. -
IN-02U
Flush-mounted input module for connecting conventional pushbuttons and switches to the subnet. With this module 2 commands can be transferred to the BUS system. -

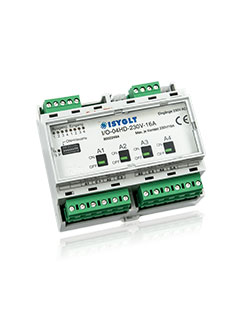

I/O-04HD-230V-16A
I/O module with 4 optocoupler inputs 230V and 4 relay outputs 230V/16A with manual actuation lever. Various parameterizable special functions. -
IN-02U-S4
Flush-mounted input module for connecting conventional pushbuttons and switches to the subnet. With this module 2 commands can be transferred to the BUS system. This module offers the possibility of sub address management. -
I/O-04B-230V-12A
I/O module with 4 binary inputs and 4 relay outputs. For control tasks that are switched with 230V. -
IN-02BW
Flush-mounted module for coupling 2 ISYGLT motion sensors BW-01 to the subnet. -
I/O-02E-PI
Module for controlling a linear motor with pulse generator for exact positioning. -
I/O-02L-230V-10A
I/O module with 2 binary inputs and 2 relay outputs for 2 light circuits. Luminaire terminal device designed especially for installation into a luminaire. -
JSM-02C-230V-2A
The blind control module JSM-02C-230V-2A for 2 blind motors is suitable for standard blind control up to professional control with exact positioning of the slats. Thus blinds can be controlled for effective daylight guidance and as glare protection. -
I/O-22E-S-NPN
With the module up to 2 commands can be transferred to the BUS system and 2 commands can be issued. -
I/O-22E-S-PNP
With the module up to 2 commands can be transferred to the BUS system and 2 commands can be issued. -
WATCH-DOG-02
WATCH-DOG module for monitoring the ISYGLT subnet. With this module short circuits and interruptions of the BUS line or failed master modules can be detected. Individual modules on the subnet can also be monitored and reported. -
I/O-04U
Flush-mounted input module for coupling conventional pushbuttons and switches to the subnet. With this module 4 commands can be transferred to the BUS system. -
I/O-02U
Flush-mounted input module for coupling illuminated pushbuttons to the subnet. With this module 2 commands can be transferred to the BUS system. -
I/O-08T-PNP
The I/O-08T-PNP is mainly used in tableau applications. Due to its small size, the module can also be optimally integrated into small control panels. -
I/O-02U-5V
Flush-mounted input module for coupling external devices with an operating voltage of 5V to the subnet. With this module 2 commands can be transferred to the BUS system and 2 signals can be output. -

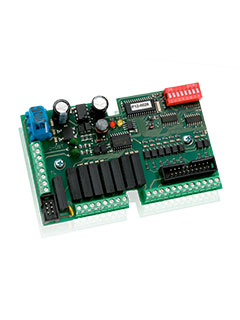

I/O-08T-24V
With the I/O tableau module I/O-08T-24V, 8 buttons and 8 indicator lights can be connected to the ISYGLT BUS system. -
IN-04U
Flush-mounted input module for connecting conventional pushbuttons and switches to the subnet. With this module 4 commands can be transferred to the BUS system. -
IN-04B REG
IN module with 4 digital inputs to connect conventional pushbuttons, switches and contacts. As DIN rail mounted device for installation in the switch cabinet. -
IN-08T
The IN-08T provides up to 8 inputs in a very compact design. The module can be adapted to almost all applications via the ProgramDesigner. -

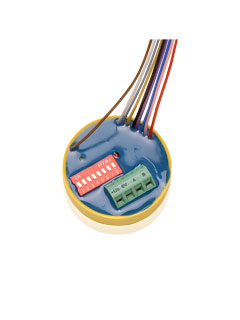

AD-02U-I/O-2
Analog input module (installation in flush-mounted box) with 2 analog inputs for reading 0-5V and 0-10V sensors. At the same time, 2 digital inputs and 2 digital outputs are also available to which, for example, buttons and signal lamps can be connected.
