ISYGLT Analog Modules

Analog input module (installation in flush-mounted box) with 2 analog inputs for reading 0-5V and 0-10V sensors. At the same time, 2 digital inputs and 2 digital outputs are also available to which, for example, buttons and signal lamps can be connected.

Analog input module with 4 analog inputs for reading 0-10V signals. Suitable e.g. for sensors with 0-10V interface.

Analog module for reading 4 separate 0-10V analog values into the subnet with a resolution of 8 or 12 bits per channel.

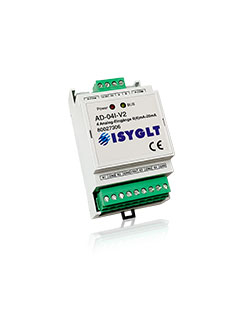

Analog module for reading 4 separate analog values 0(4)-20mA into the subnet. The resolution of each channel is 8 or 12 bits.

Setting module with 4 potentiometers. The individual analog channels are available in the Master Module for further links, depending on the application purpose.

Analog input module for entering 4 target values with definable value ranges such as 0-100%, 0-255 up to 0-65535. The target values are adjusted for each channel via a separate potentiometer integrated in the module. The resolution of each channel is 8 or 12 bits.

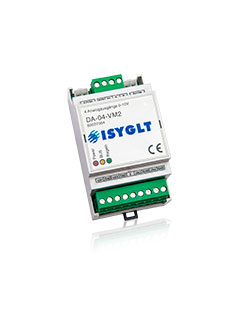

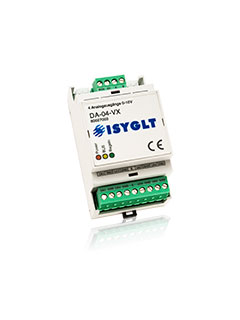

Analog output module with 4 independent analog outputs. For the connection of 0(1)-10V actuators such as 0-10V dimmers or lights with standardized 1-10V ECGs.

Analog output module with 2x2 independent analog outputs. For controlling 2 lamps with one warm tone and one cold tone illuminant each. The outputs have a with 8 bit resoluted output voltage range of 0-10V.

Analog output module with 3 independent analog outputs for controlling dimmed fluorescent lamps with 1-10V ECGs. For each analog output there is a relay switching output with a load capacity of 230V / 1500VA.
