ISYGLT DALI Modules

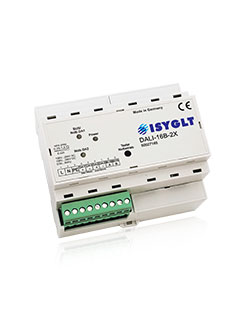

DALI module with 2 separate DALI lines for controlling up to 2x 64 DALI luminaires in max. 2x 16 dimming groups. Supports luminaire types DT6 and DT8.

DALI module with 2 separate DALI lines for controlling up to 2x 64 DALI luminaires in max. 2x 16 dimming groups. Supports luminaire types DT6 and DT8 and has 2 additional RJ45 network interfaces.

DALI module with 2 separate DALI lines for controlling up to 2x 64 DALI luminaires, max. 2x 64 dimming channels. Supports luminaire types DT6 and DT8.

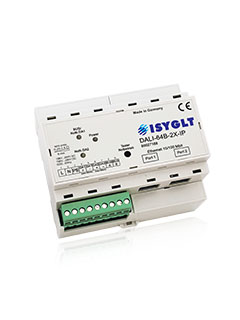

DALI module with 2 separate DALI lines for controlling up to 2x 64 DALI luminaires, max. 2x 64 dimming channels. Supports luminaire types DT6 and DT8 and has 2 additional RJ45 network interfaces.

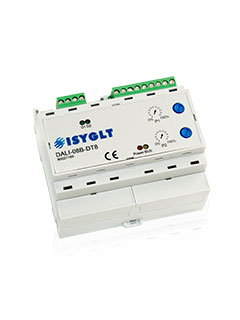

DALI module for controlling up to 64 DALI DT8 devices. Colour temperature controls (warm white / cold white) can be easily implemented with the DALI-08B-DT8. Mixed operation of DT8 devices and standard DALI devices is easily possible.

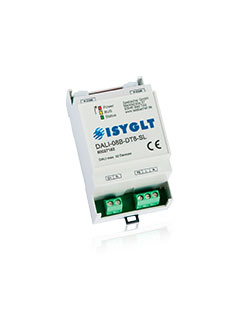

DALI module for controlling up to 32 DALI DT8 devices. Colour temperature controls (warm white / cold white) can be easily implemented with the DALI-08B-DT8-SL. Mixed operation of DT8 devices and standard DALI devices is easily possible.

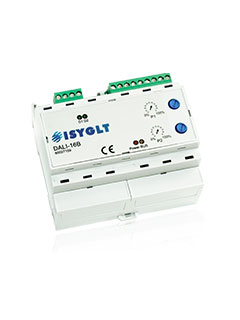

DALI module for controlling up to 64 DALI lamps. Each of these 64 DALI devices is programmed with a unique device address. One of 16 ISYGLT dimming groups can be assigned to this device address by parameterising the DALI-16B module.

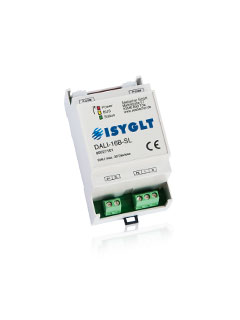

DALI module "slim-line" with 3 HP for 32 devices divided into 16 groups.

DALI Module for controlling lamps with DALI ECGs. 4 independently dimmable DALI outputs are available.

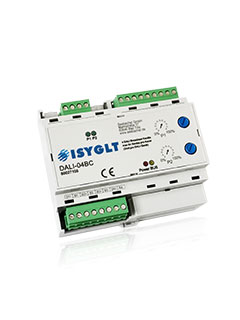

DALI module for controlling lamps with DSI or DALI ballasts in broadcast. 4 independently dimmable DSI/DALI outputs are available.

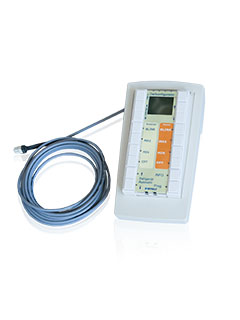

The DALI Configurator is the commissioning tool for DALI components (ECGs and electronic transformers). The Configurator can be used in ISYGLT installations without IP Master to commission the DALI system.
