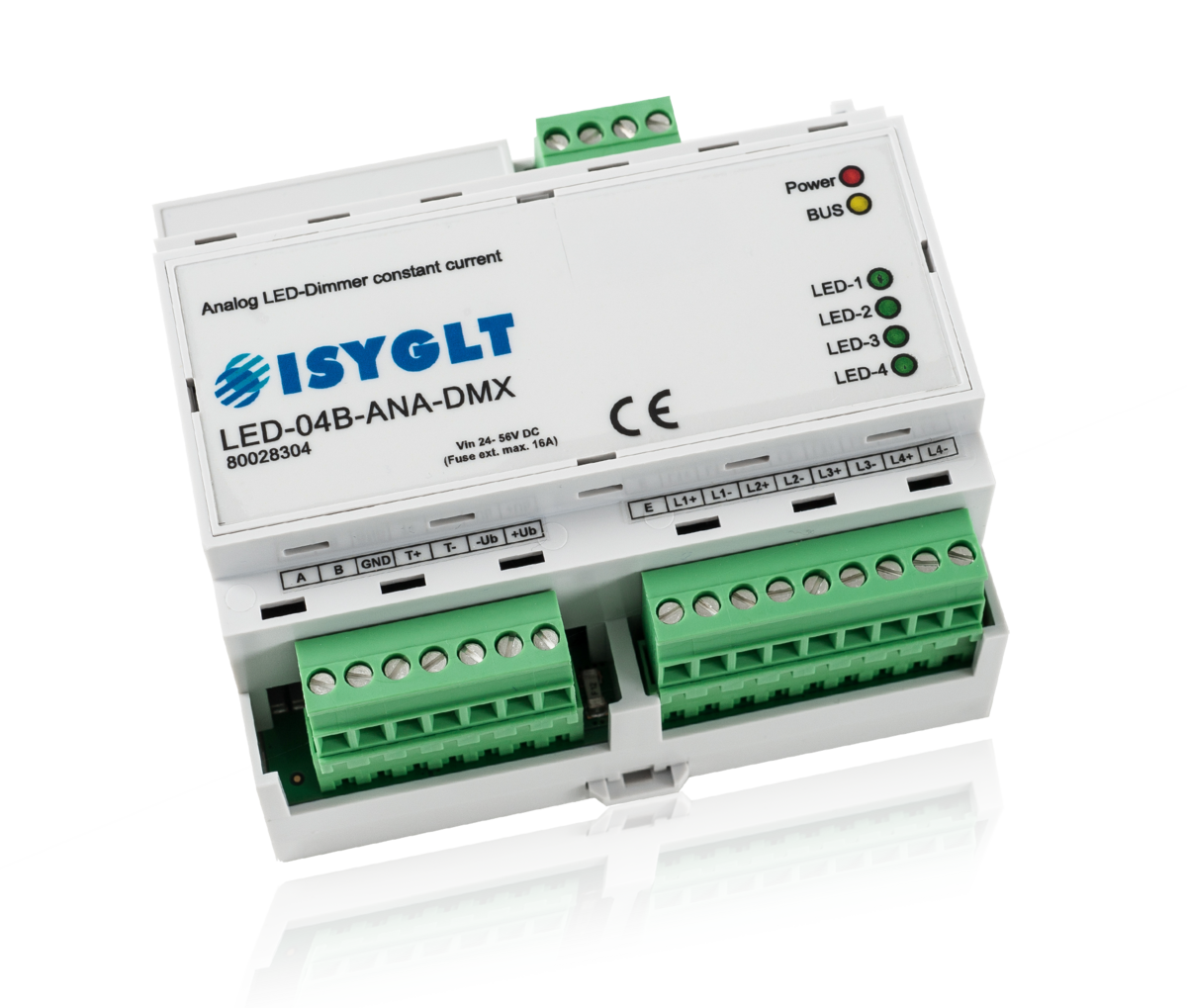

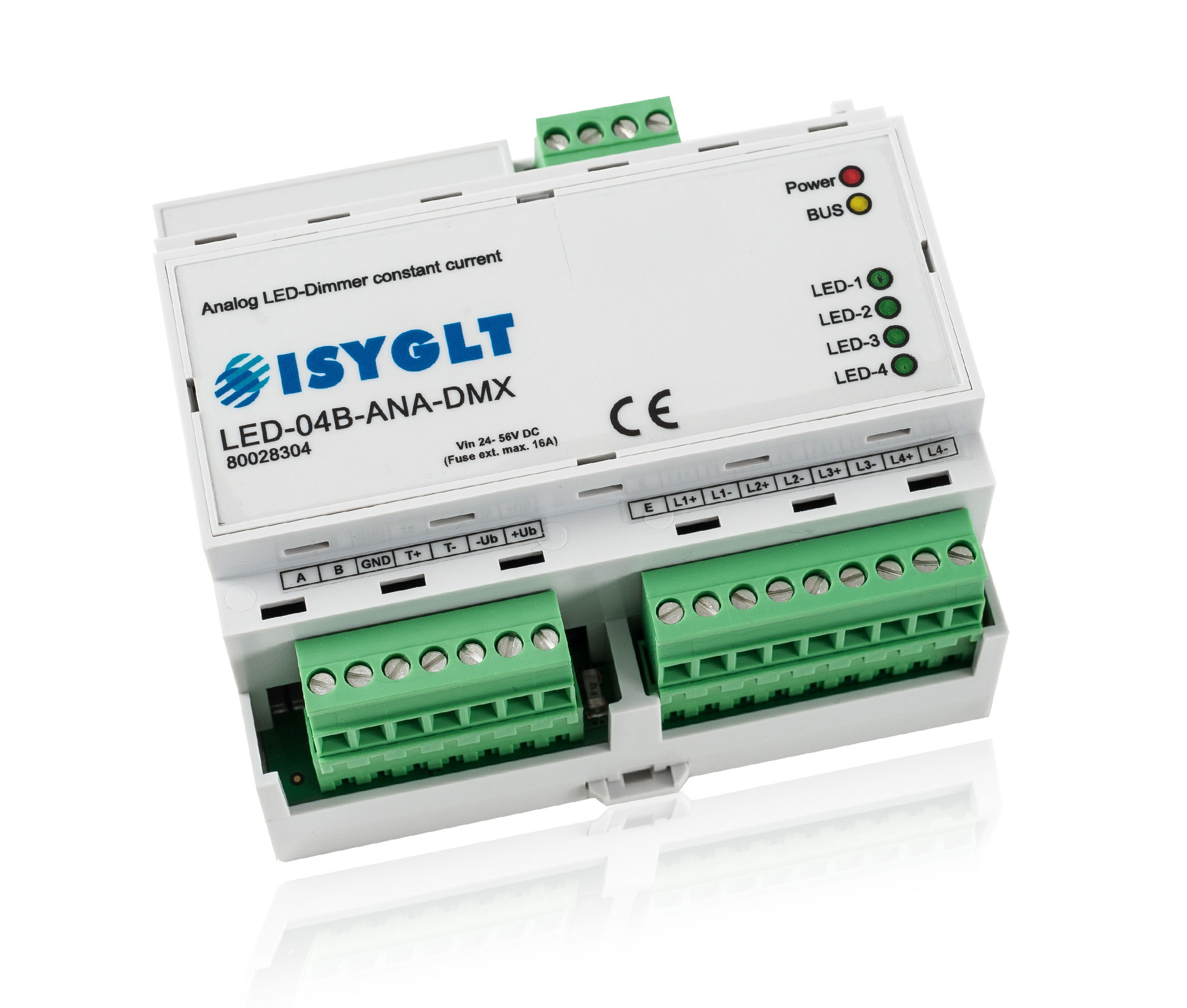

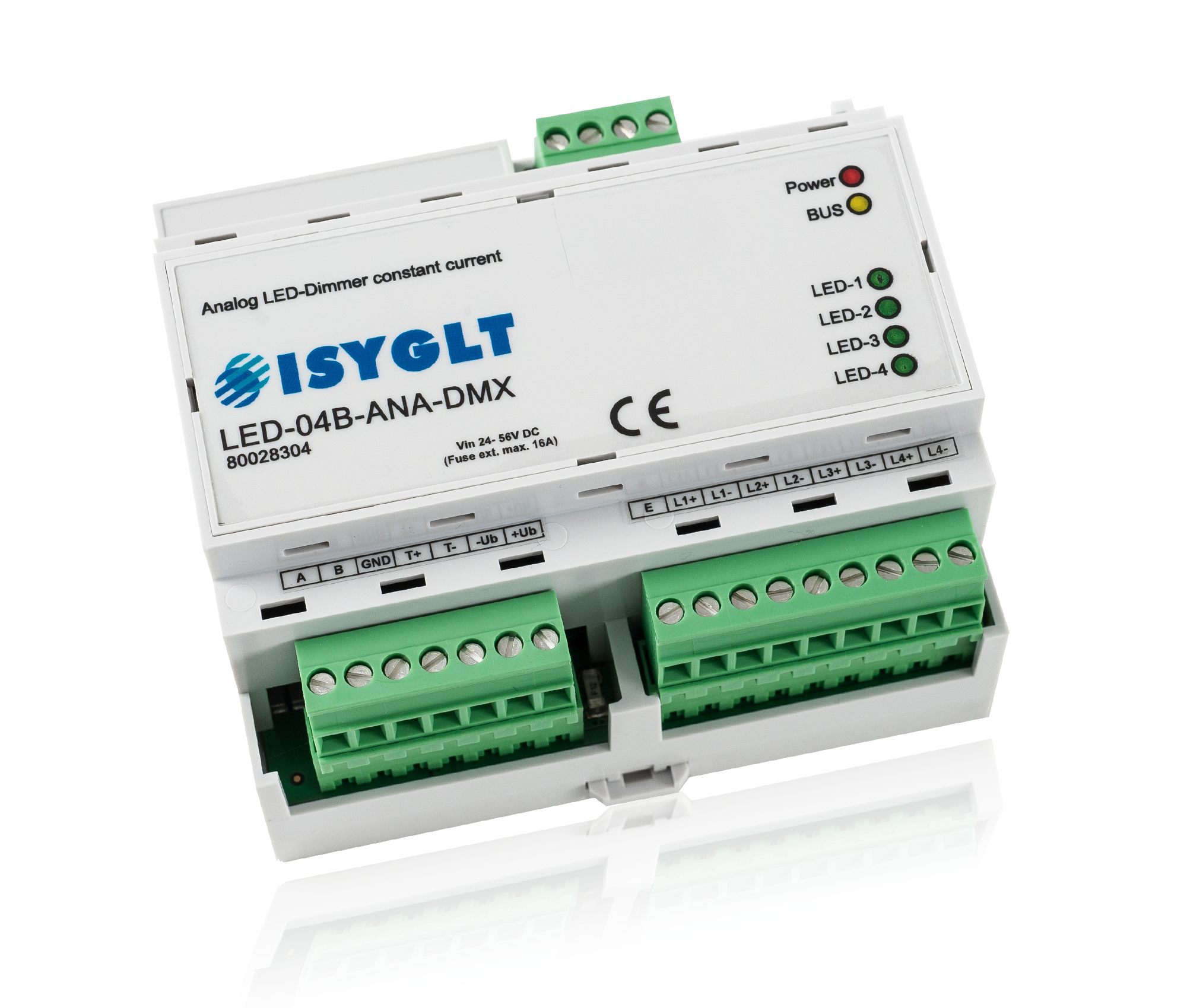

LED Dimmer LED-04B-ANA-DMX

Analog LED Dimmer - non-PWM - with 4 independent constant current outputs, CC (constant current) 250mA to 1400mA. Dimming 0-100% high resolution, monochrome coloured or circadian/HCL (Human Centric Lighting warm white/cold white).

Quick Facts

  • 4 dimming channels 250mA to 1400mA
  • dimming 0-100%
  • protocol ISYGLT or DMX512 8/16-bit
  • analog dimming (amplitude dimming)
  • healthy LED light without PWM
  • perfectly suitable for TV cameras

Depending on configuration and LED type, this Dimmer can control LEDs with a total of 300W (4x 75W) power. Recommended areas of use are all areas in which healthy lighting is ensured, as the effects of conventional PWM dimming have not been fully investigated, but are classified by experts as posing a health risk. PWM is used as standard in all previous LED Dimmers, including the DALI and KNX/EIB standards. Therefore, the use of non-PWM dimming is particularly recommended in areas where people stay longer or where high demands are placed on lighting quality:

  • Planetarium
  • Theater
  • Museum, gallery, exhibition
  • Clinic and nursing home
  • Office and other workplaces
  • School and academic institution
  • Hotel and conference room
  • Shopping centre and shop

The LED Dimmer can be operated either on the ISYGLT-BUS or DMX512-BUS.

The following functions can be performed independently by the LED Dimmer:

  • Calculation of rise times from 0.5 seconds to 12 hours
  • Fidelity colour dimming by specifying the colour over the entire brightness range
  • Colour temperature control (colour mixing) for 2 areas with 1x cold white and 1x warm white
  • Autonomous movement from current ACTUAL values to preset SET values at a preset speed (optional in preset time)
  • Feedback "Set value reached" after execution of time functions
  • Stop function during execution of time functions
  • OVERSAMPLING error correction: With the so-called "OVERSAMPLING", the module automatically corrects the jumps in dimming values caused by the cycle times of the BUS system. For this purpose, the dimming values between the BUS cycles are transformed back into the resolution of 16 bits by linearisation. This prevents, for example, flickering when controlling dimmers. During programming, the OVERSAMPLING is referred to as the SOFT function.
  • Execution of blinking functions
  • Adaptation to various LED modules
  • Calculation of defined and definable curves
  • Calculation of the min. and max. settings per channel to use the full 16-bit width
  • Complex emergency mode function

Electrical Data

Operating voltage 24V to 56V DC pulse-proof for power LEDs
Emergency operation input 24V to 56V DC
LED forward voltage 12V to 54V (depending on the voltage drop of the line); the LED forward voltage including the voltage drop of the line must be 2V lower than the supply voltage!
Mains fuse max. 16A at Umax 56V DC
Current consumption max. 1400mA per LED circuit
Output 4 circuits separately adjustable in the factory with 250mA to 1550mA each for power LEDs (please specify the desired current value for each circuit when ordering)
Power loss idle circuit: 0.162W / channel, full load and worst conditions: 2.5W / channel
BUS control ISYGLT / DMX512 8/16-bit (others on request)
Cable length power supply to LED dimmer max. 20m (observe max. permissible voltage drop for cable cross-section calculation)
Cable length LED dimmer up to last LED max. 50m
Dimming resolution 16 Bit
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection screw terminals 2.5mm²
Operating temperature -10°C to +45°C
Storage temperature -25°C to +70°C
Humidity 0...85 % r.h. non-condensing
Protection IP 10

Design, Dimensions, Weight

Design DIN rail-mounted device 6 HP
Dimensions LxWxH 106x90x59mm
Weight 250g

Ordering Data and Conformity

Type designation LED-04B-ANA-DMX
Article no. 80028304
Make ISYGLT
Conformity CE

DIP switch ISYGLT-BUS operation

SwitchFunctionDescription
DIP 1Protocol 1OFF
DIP 2Protocol 2OFF
DIP 3ReserveOFF
DIP 4ReserveOFF
DIP 5ReserveOFF
DIP 6Address bit 7Module address (highest bit)
DIP 7Address bit 6Module address
DIP 8Address bit 5Module address
DIP 9Address bit 4Module address
DIP 10Address bit 3Module address
DIP 11Address bit 2Module address
DIP 12Address bit 1Module address (lowest bit)

DIP switch DMX512 operation

DMX operation with delay (oversampling of 8-bit to 16-bit values)
Default 50ms, adjustable by parameterization from 10ms to 1s, as well as "Soft".

DMX 8-bit = DIP 1 = ON, DIP 2 = OFF

DMX 16-bit = DIP 1 = ON, DIP 2 = ON

SwitchFunctionDescription
DIP 1Protocol 1ON
DIP 2Protocol 2OFF
DIP 3Channel setupOFF = 4 different (sequential) DMX addresses, ON = all outputs at 1 DMX address
DIP 4Address bit 9DMX start address (highest bit)
DIP 5Address bit 8DMX start address
DIP 6Address bit 7DMX start address
DIP 7Address bit 6DMX start address
DIP 8Address bit 5DMX start address
DIP 9Address bit 4DMX start address
DIP 10Address bit 3DMX start address
DIP 11Address bit 2DMX start address
DIP 12Address bit 1DMX start address (lowest bit)



Example: DMX address setting

 DIP switchOutput
Address 0xxx000000000Switch on manually to the value "Emergency operation" (default 100%)
Address 1xxx000000001DMX channels 1, 2, 3 and 4
Address 10xxx000001010DMX channels 10, 11, 12 and 13
Address 127xxx001111111DMX channels 127, 128, 129 and 130
Address 509xxx111111101DMX channels 509, 510, 511 and 512

Function Indicators (LEDs on the Module)

Case 1 - without temperature sensor (parameter setting)

LEDDesignationStateMeaning
redPOWEROffNo operating voltage
OnOperating voltage, no error
blinkingSignalisation parameter error
yellowBUSOffBUS wiring error
OnBUS communication error (address not recognised)
blinkingInterference-free data transmission via the BUS line
4x greenLED 1-4blinkingSignals the control of the outputs (LED flashes until the desired final value is reached)



Case 2 - with temperature sensor (parameter setting)

LEDDesignationStateMeaning
redPOWEROffOvertemperature and LED Dimmer switch-off
OnSensor ok and temperature ok
normal flashingNo sensor connected
slow blinkingOvertemperature, LED Dimmer regulates back
fast blinkingOvertemperature, shortly before shutdown
yellowBUSOffBUS wiring error
OnBUS communication error (address not recognised)
blinkingInterference-free data transmission via the BUS line
4x greenLED 1-4blinkingSignals the control of the outputs (LED flashes until the desired final value is reached)

Software


Parameterisation with ProgramDesigner

In the ISYGLT ProgramDesigner there are various parameterisation possibilities:

Operating modes:

  • 4 single channels
  • RGB + 1 single channel, red, green, blue and one independent single channel
  • RGBW, red, green, blue and white
  • colour temperature control (daylight simulation)
  • online function switching via special time constant at channel 2

Setting of various dimming curves

Minimum and maximum values


Pin Assignment

Terminals bottom left

A Subnet (BUS A, RS-485) ISYGLT or DMX
B Subnet (BUS B, RS-485) ISYGLT or DMX
GND GND RS-485
T+ Temperature sensor +
T- Temperature sensor -
U- Operating voltage input - for LED dimmer
U+ Operating voltage input + for LED dimmer

Terminals bottom right

E Input for emergency operation - (U+ switched)
L1+ + for LED channel 1
L1- - for LED channel 1
L2+ + for LED channel 2
L2- - for LED channel 2
L3+ + for LED channel 3
L3- - for LED channel 3
L4+ + for LED channel 4
L4- - for LED channel 4

Terminals top right

D+ Not assigned
D+ Not assigned
D- Not assigned
D- Not assigned

Variants

LED-04ECM-DMX-200
Article no. 80028346, 4-channel LED dimmer for power LED (200mA) with colourfast dimming and colour temperature control
LED-04ECM-DMX-350
Article no. 80028042, 4-channel LED dimmer for power LED (350mA) with colourfast dimming and colour temperature control
LED-04ECM-DMX-500
Article no. 80028049, 4-channel LED dimmer for power LED (500mA) with colourfast dimming and colour temperature control
LED-04ECM-DMX-700
Article no. 80028047, 4-channel LED dimmer for power LED (700mA) with colourfast dimming and colour temperature control
LED-03EC-DMX-350-V2
Art. no. 80028051, 3-channel LED dimmer for power LED (350mA) with colourfast dimming, with housing,
for very noise-sensitive applications
LED-02E-DMX16-700-V2
Article no. 80028380, 2-channel LED dimmer for power LED (700mA), with housing, for very noise-sensitive applications,
2nd protocol DMX512-16Bit
LED-03EC-DMX-700-V2
Art. no. 80028070, 3-channel LED dimmer for power LED (700mA) with colourfast dimming, with housing,
for very noise-sensitive applications
LED-02E-DMX-1000
Article no. 80100316, 2-channel LED dimmer for power LED (1000mA), with housing
LED-04B-ANA-DMX
Article no. 80028304, 4-channel non-PWM analog LED dimmer for power LED (700-1400mA), in REG housing
