The LED Dimmer was developed to control 2 LED circuits in the "constant current" operating mode. This makes it possible to control the brightness of the LEDs between 0 and 100% absolutely flicker-free with a dimming resolution of 16 bit (internal resolution in ISYGLT operation). The LED Dimmer can be set from speed calculation to absolute time calculation by parameterisation per channel. With this, all imaginable control tasks, from individual light dimming to the use for complex light and colour scenarios, can be easily implemented.
When dimming LEDs, depending on the dimming frequency, very low humming noises may occur. These are exceeded in everyday life by ambient noises such as PCs, electrical appliances, fans, conversations, etc. many times over and are therefore not audible. However, there are also very noise-sensitive areas such as museums, galleries, churches, etc. and there are people who can still perceive these minimal noises. The LED Dimmer LED-02E-DMX16-700-V2 was specially developed for these applications. Due to the special selection and use of the highest quality components, the noise emission could be reduced to a level that is (for us) no longer perceptible.
The LED Dimmer can optionally be operated on the ISYGLT BUS or DMX512 BUS.
The regular DMX GND connector on PIN 1 is not required and therefore not connected.
The following functions can be performed independently by the LED Dimmer:
Function DMX 16 bit
This dimmer was developed for a high DMX dimming resolution. The 16 bit dimming divides the dimming into 65535 steps. A Master Controller can be activated or deactivated for the two LED dimming outputs via parameter setup (default is "active").
The channels are then assigned as follows (Example: DMX start address 1):
| Designation | H-Byte | L-Byte |
|---|---|---|
| Dimming channel 1 | 1 | 2 |
| Dimming channel 2 | 3 | 4 |
| Master | 5 | 6 |
| Operating voltage | 12V to 55V DC pulse proof for power LEDs |
| Emergency input | 12V to 55V DC (active when connected to LED1+ or LED2+) |
| Mains fuse |
max. 16A at Umax 55V DC |
|
Current consumption | max. 750mA per LED circuit, BUS interface 10mA |
| Output |
2 circuits with 700mA each for LEDs The voltage required for series connection of LEDs can be found in the corresponding data sheets of the LED manufacturers. The supply voltage must be 25% higher than the forward voltage of the LED. |
| BUS control | ISYGLT / DMX512-16 bit |
| Cable length power supply to LED dimmer | max. 20m (observe max. permissible voltage drop for cable cross-section calculation) |
| Cable length LED dimmer up to last LED | max. 2m (only suitable for lamp applications or short distances) |
| Dimming resolution | 16 bit |
| Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
| Connection | screw terminals 1.5mm² |
| Operating temperature | -10...+45°C |
| Storage temperature | -25...+70°C |
| Humidity | 0...85 % r.h. non-condensing |
| Protection class | IP 10 |
| Switch | Function | Description |
|---|---|---|
| DIP 1 | Protocol 1 | OFF |
| DIP 2 | Manual ON | ON = Switch on to value "Emergency operation" (default 100%) |
| DIP 3 | Reserve | OFF |
| DIP 4 | Address bit 7 | Module address (highest bit) |
| DIP 5 | Address bit 6 | Module address |
| DIP 6 | Address bit 5 | Module address |
| DIP 7 | Address bit 4 | Module address |
| DIP 8 | Address bit 3 | Module address |
| DIP 9 | Address bit 2 | Module address |
| DIP 10 | Address bit 1 | Module address (lowest bit) |
DMX operation with oversampling.
Default 100ms, adjustable from 10ms to 1s by parameterisation, as well as "Soft".
The DIP switch is used to set the start address of the 2 consecutive 16 bit dimming channels and the subsequent 16 bit master channel.
| Switch | Function | Description |
|---|---|---|
| DIP 1 | Protocol 1 | ON |
| DIP 2 | Address bit 9 | Module address (highest bit) |
| DIP 3 | Address bit 8 | Module address |
| DIP 4 | Address bit 7 | Module address |
| DIP 5 | Address bit 6 | Module address |
| DIP 6 | Address bit 5 | Module address |
| DIP 7 | Address bit 4 | Module address |
| DIP 8 | Address bit 3 | Module address |
| DIP 9 | Address bit 2 | Module address |
| DIP 10 | Address bit 1 | Module address (lowest bit) |
Example of address setting
| DIP switch | Output | |
| Address 0 | 000000000 | Switch on manually to the value "Emergency operation" (default 100%) |
| Address 1 | 000000001 | Start address channel 1 |
| Address 10 | 000001010 | Start address channel 10 |
| Address 127 | 001111111 | Start address channel 127 |
| Address 510 | 111111110 | Start address channel 510 |
Case 1 - without temperature sensor (parameter setting)
| LED | Designation | State | Meaning |
|---|---|---|---|
| red | POWER | Off | No operating voltage |
| On | Operating voltage, no error | ||
| blinking | Signalisation parameter error | ||
| yellow | BUS | Off | BUS wiring error |
| On | BUS communication error (address not recognised) | ||
| blinking | Interference-free data transmission via the BUS line | ||
| green | Regeln | blinking | signals the control of the outputs (LED blinks until the desired final value is reached) |
Case 2 - with temperature sensor (parameter setting)
| LED | Designation | State | Meaning |
|---|---|---|---|
| red | POWER | Off | Overtemperature and LED dimmer switch-off |
| On | Sensor ok and temperature ok | ||
| normal blinking | No sensor connected | ||
| slow blinking | Overtemperature, LED dimmer regulates back | ||
| fast blinking | Overtemperature, shortly before shutdown | ||
| yellow | BUS | Off | BUS wiring error |
| On | BUS communication error (address not recognised) | ||
| blinking | Interference-free data transmission via the BUS line | ||
| green | Regeln | blinking | Signals the control of the outputs (LED blinks until the desired final value is reached) |
In the ISYGLT ProgramDesigner there are various parameterisation possibilities:
Operating modes:
Setting of various dimming curves
Minimum and maximum values
| +Ub | Voltage input + for LED supply |
| GND | Voltage input - for LED supply |
| COM-LED (+) | Common anode (+) of the power LED |
| LED 1 (-) | Cathode (-) for power LED channel 1 |
| LED 2 (-) | Cathode (-) for power LED channel 2 |
| LED 3 (-) | Cathode (-) for power LED channel 3 |
| E | Emergency operation input (connection to COM+) |
| NT-LED-12V-15A Article no. 80100603, power supply unit for LED applications |
| NT-LED-48V-5A Article no. 80100608, power supply unit for LED applications |
| NT-LED-48V-5,4A Article no. 80100609, power supply unit for LED applications |
| NT-LED-48V-10A Article no. 80100610, power supply unit for LED applications |
| NT-LED-48V-20A Article no. 80100611, power supply unit for LED applications |
| NT-LED-24V-5A Article no. 80100617, power supply unit for LED applications |
| NT-LED-24V-10A Article no. 80100619, power supply unit for LED applications |
| NT-LED-24V-20A Article no. 80100620, power supply unit for LED applications |
| NT-LED-24V-40A Article no. 80100641, power supply unit for LED applications |
| NT24V/40A-3Ph Article no. 80100640, power supply unit for LED applications |
| LED-EXT-TS Article no. 80027049, external temperature sensor for LED dimmer |
| LED-04ECM-DMX-200 Article no. 80028346, 4-channel LED dimmer for power LED (200mA) with colourfast dimming and colour temperature control |
| LED-04ECM-DMX-350 Article no. 80028042, 4-channel LED dimmer for power LED (350mA) with colourfast dimming and colour temperature control |
| LED-04ECM-DMX-500 Article no. 80028049, 4-channel LED dimmer for power LED (500mA) with colourfast dimming and colour temperature control |
| LED-04ECM-DMX-700 Article no. 80028047, 4-channel LED dimmer for power LED (700mA) with colourfast dimming and colour temperature control |
| LED-03EC-DMX-350-V2 Art. no. 80028051, 3-channel LED dimmer for power LED (350mA) with colourfast dimming, with housing, for very noise-sensitive applications |
| LED-02E-DMX16-700-V2 Article no. 80028380, 2-channel LED dimmer for power LED (700mA), with housing, for very noise-sensitive applications, 2nd protocol DMX512-16Bit |
| LED-03EC-DMX-700-V2 Art. no. 80028070, 3-channel LED dimmer for power LED (700mA) with colourfast dimming, with housing, for very noise-sensitive applications |
| LED-02E-DMX-1000 Article no. 80100316, 2-channel LED dimmer for power LED (1000mA), with housing |
| LED-04B-ANA-DMX Article no. 80028304, 4-channel non-PWM analog LED dimmer for power LED (250mA-1550mA), in DIN rail mounted housing |

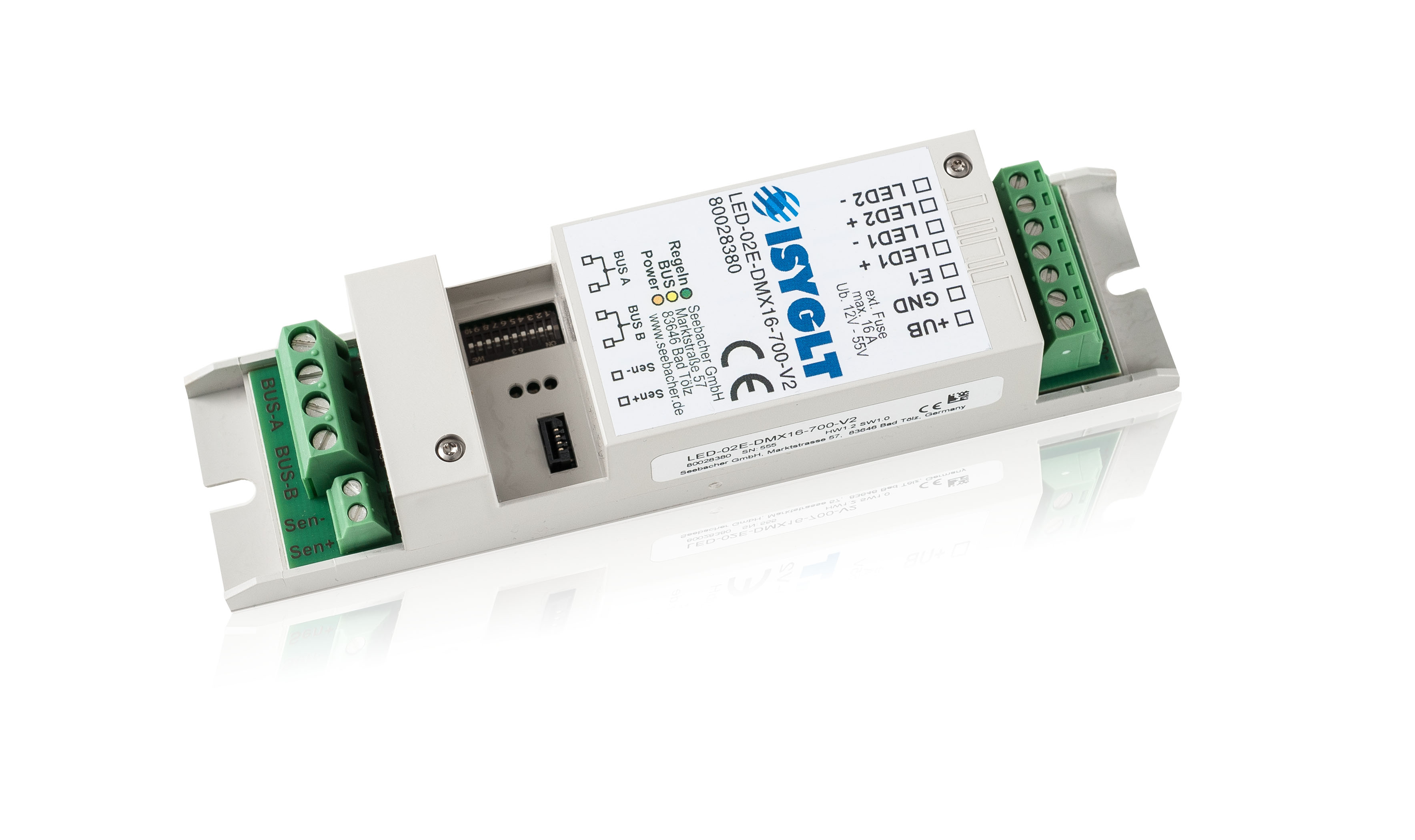

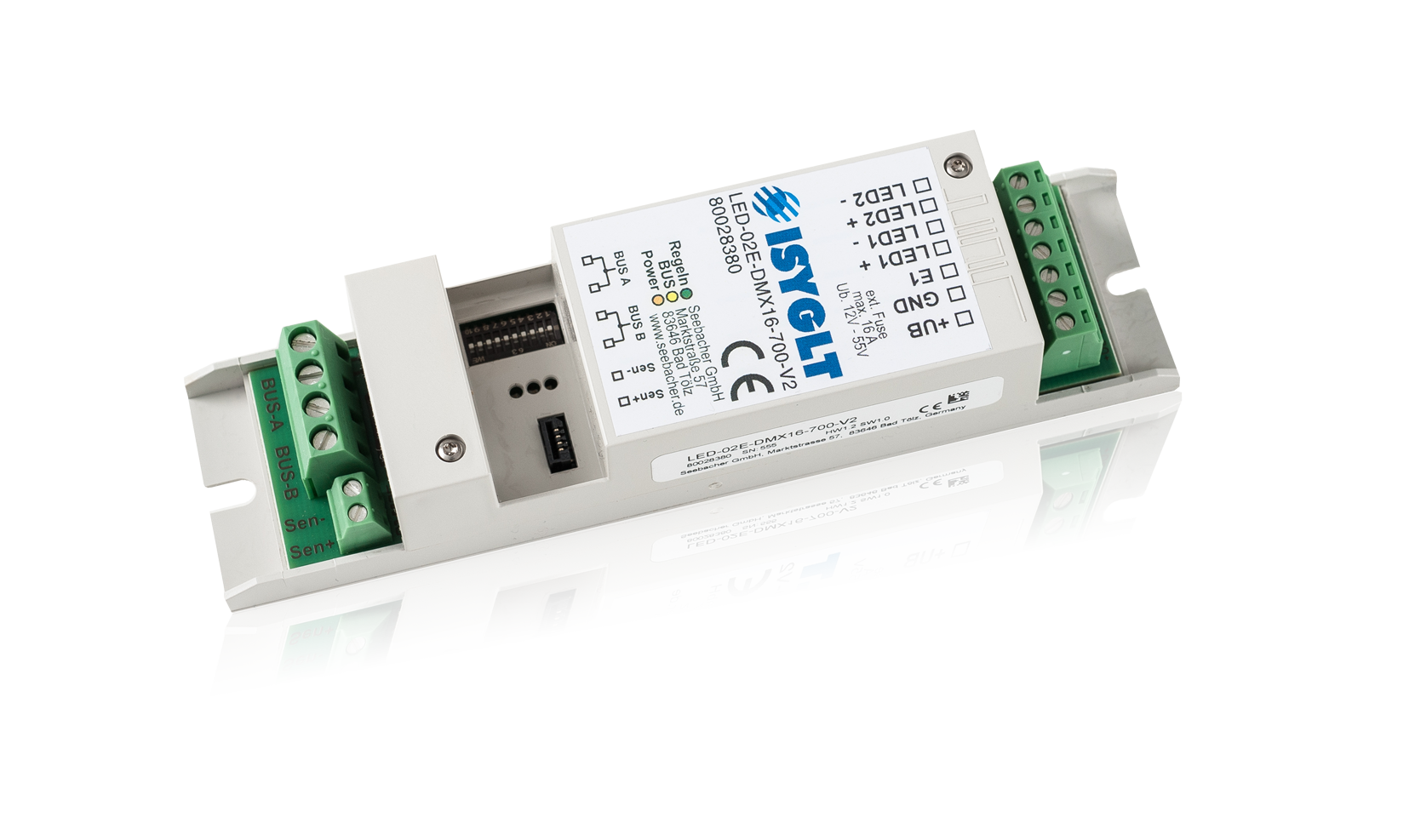

Article no.: 80028380
LED Dimmer with 2 independent constant current outputs, CC 700mA. In DMX mode, a master channel can be defined. Dimming 0-100% high resolution, monochrome coloured or also circadian/HCL (Human Centric Lighting warm white / cold white).
