Compact Controller CC-03-USB

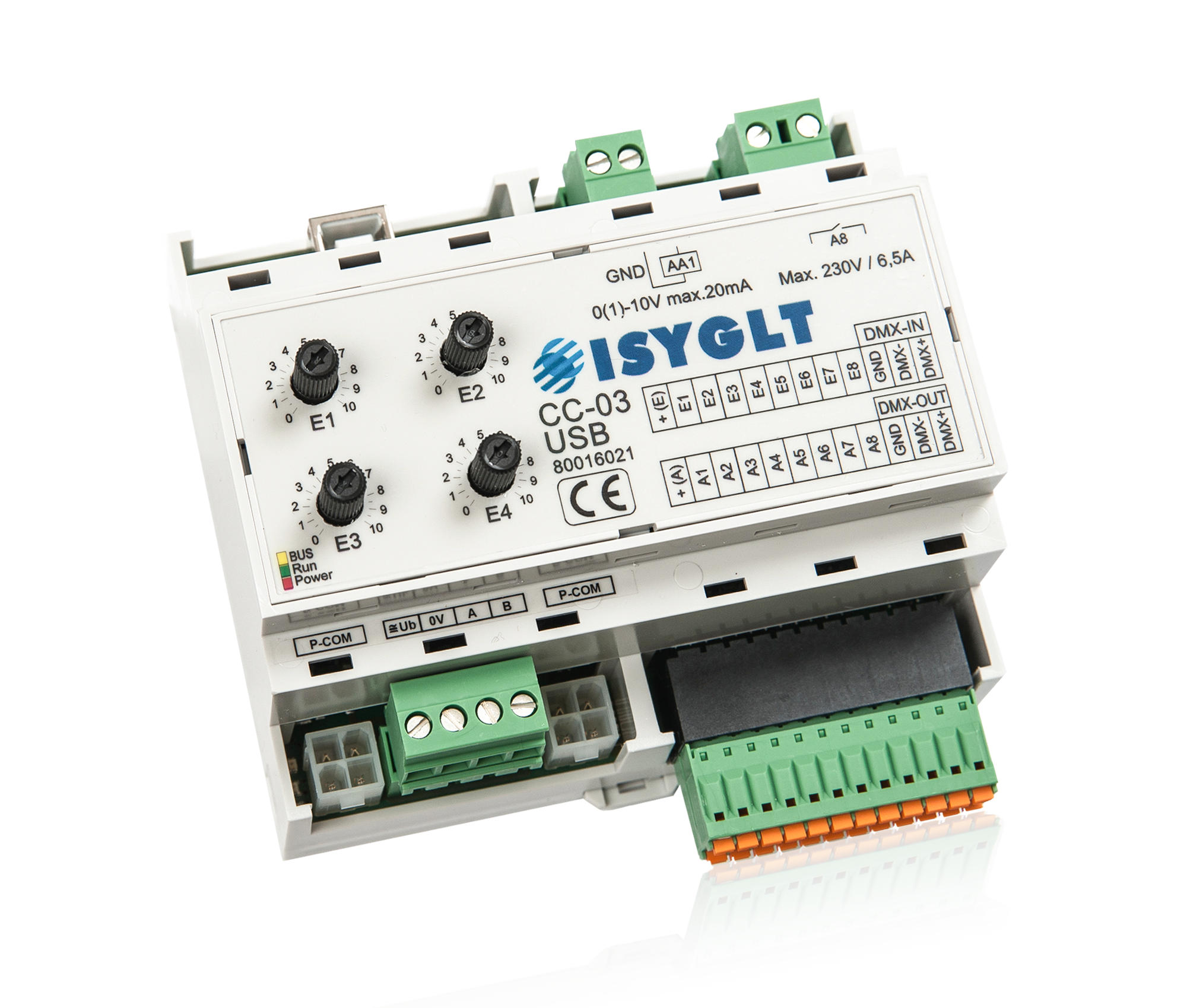

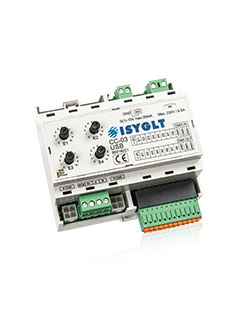

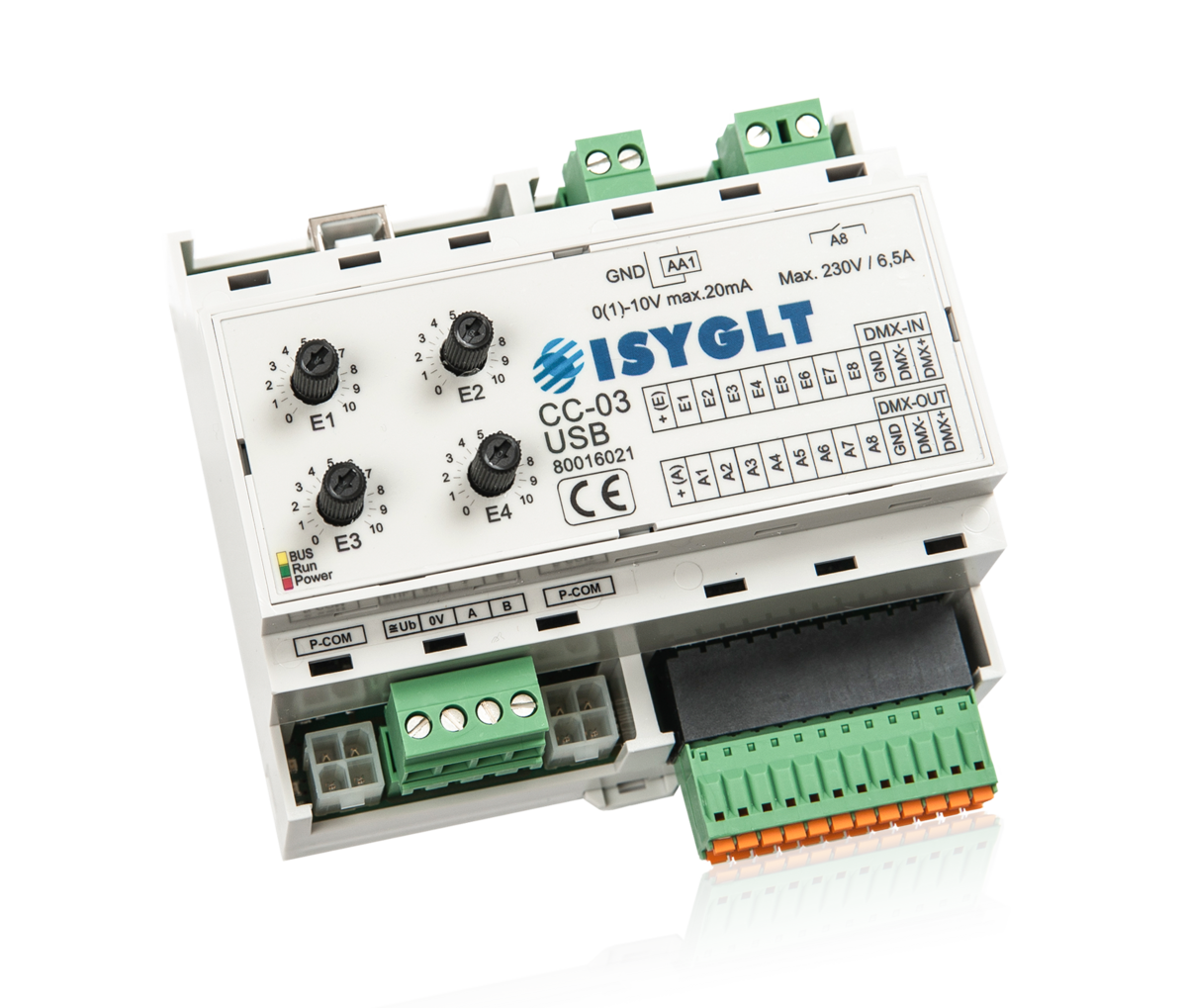

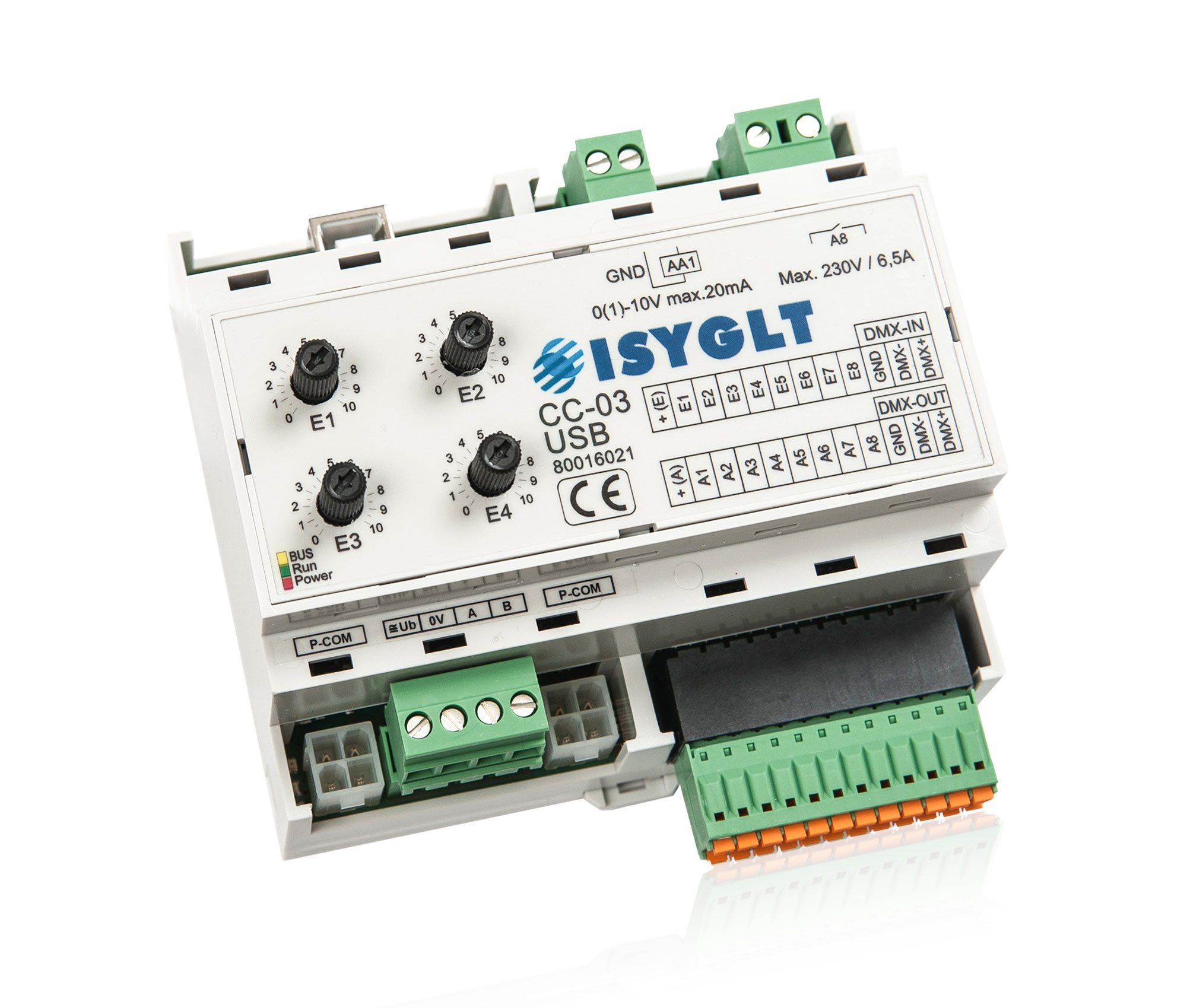

The CC-03-USB Compact Controller is a freely programmable Master Module of the ISYGLT BUS system. Due to hardware connection options, the controller can be used stand-alone for smaller control tasks. By the extension with the ISYGLT BUS components various control projects can be realised.

Quick Facts

8 inputs 24V for buttons
8 outputs 24V for feedback signals
4 rotary potentiometers
1 relay output 230V
1 analog output 1-10V
1 DMX512-IN, 16 freely selectable channels
1 DMX512-OUT, 16 freely selectable channels

Description

The CC-03-USB has been developed for the realisation of small control tasks. The hardware includes a 0(1)-10V interface, a relay output in hybrid technology, 4 potentiometers, 8 low voltage button connections and 8 low voltage feedback signals, as well as 16 channels DMX-IN and 16 channels DMX-OUT. With these requirements a multitude of small controls can be realised. The ISYGLT Controller is freely programmable and can be extended with the available ISYGLT BUS components.

Application examples are:

Small light controls with 1-4 fixed values adjustable by potentiometer
LED control via ISYGLT or DMX-512 with potentiometer adjustment options (brightness, RGB colours, warm white/cold white)
Sequence controls

Technical Data

Electrical Data

Operating voltage	24V DC +/-20%
Current consumption	100mA at 24V + current of the feedback outputs max. 150mA = sum max. 250mA
Inputs (buttons)	24V DC, input current per input 5mA at 24V (only own voltage by bridge can be used!). Maximum line length: 50m
Outputs (feedbacks)	24V DC 0V switching, against internal + limited to 150mA (when all 8 outputs are assigned 18.75mA/channel). Maximum line length: 50m
Relay output	230V 1500VA (max. 6.5A) with Triac zero voltage switch
Analog output	1 analog channel 8 bit resolution 0-10V (1-10V) output current max. 20mA (sink or source)
Isolation voltage	1000V ( ISYGLT BUS / analog outputs)
Interface 1	RS-485 subnet BUS max. 5.6V limitation by Z-diodes
Interface 2	USB 2.0 Typ-B socket for connecting a PC for programming
Program memory	Program memory for user program: 24 KByte (EEPROM) programmable Scene memory: 8 KByte (EEPROM) for light scenes, non-volatile (not expandable)
Connection	screw terminals 2.5mm² pluggable, pluggable spring type terminals 1.5mm²
Operating temperature	-10°C...+50°C
Storage temperature	-25°C...+70°C
Humidity	0...85 % r. h. non-condensing
Protection class	IP 30

Design, Dimensions, Weight

Design	DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP
Dimensions	WxHxD 106x90x59mm
Weight	200g

Ordering Data and Conformity

Type designation	CC-03-USB
Article no.	80016021
Make	ISYGLT
Conformity	CE

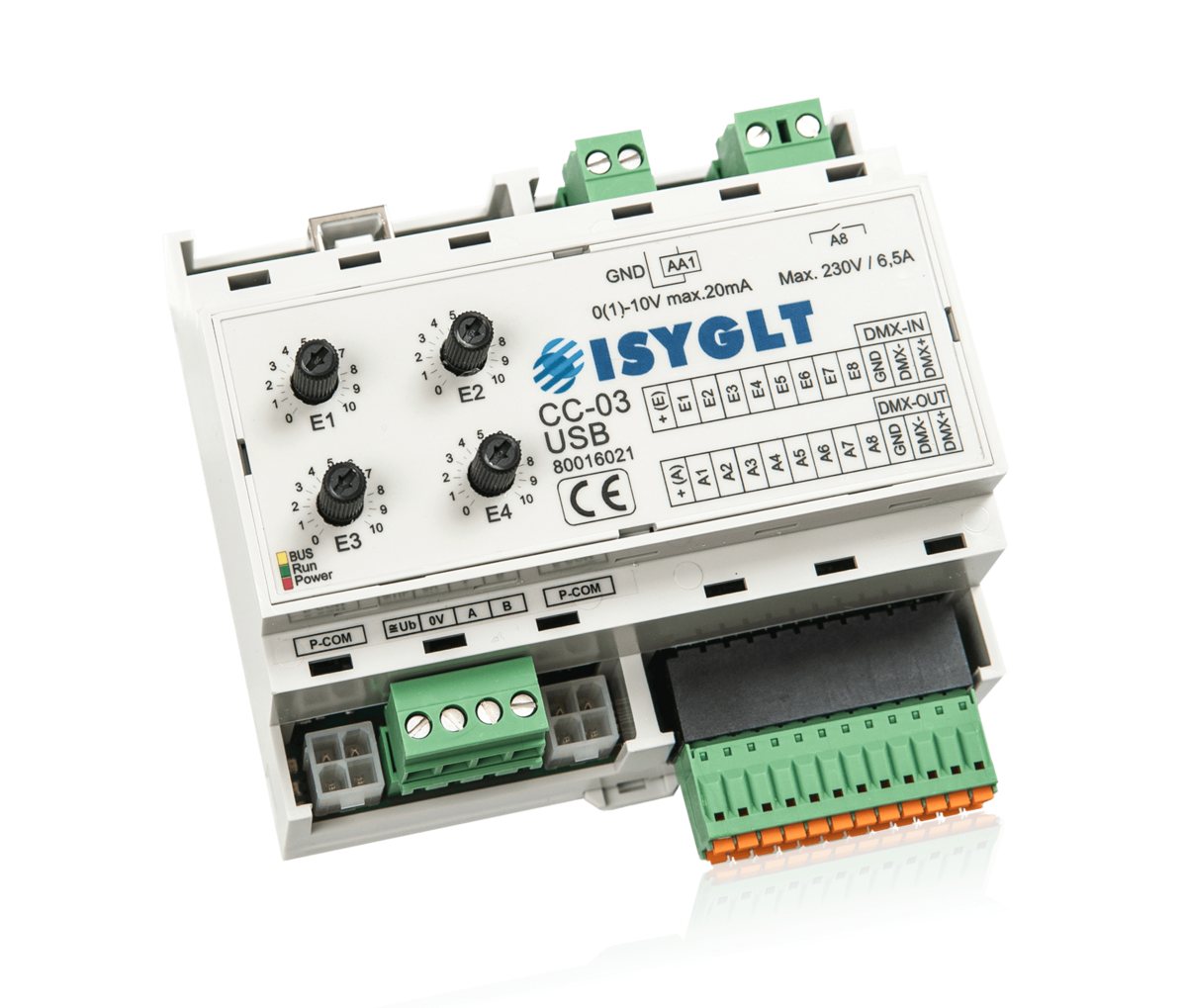

Pictures and Dimensional Drawings

Downloads

Tender Documents

CC-03-USB_lv.txt

Instruction Manuals

CC-03-USB_dat_en.pdf

Technical Drawings

Wiring Diagrams

CC-03-USB_plan.pdf

Commissioning and Configuration

Function Indicators (LEDs on the Module)

LED	Designation	State	Meaning
red	Power	Off	No operating voltage
red	Power	On	Operating voltage, no error
yellow	BUS	Off / On	Error BUS
yellow	BUS	blinking	Interference-free data transmission via the BUS line
green	Processor function	equaly blinking	System ok but no DCF-77 time received
green	Processor function	2x short blinking	System ok and DCF-77 time received

Software

ProgramDesigner

Parameterisation with ProgramDesigner

In the ISYGLT ProgramDesigner you will find the parameterisation options for the ISYGLT operation:

Assignment of the DMX channels
Setting the value range/limit stops of the potentiometers
Define user dimming curves

Pin Assignment

4-pole plug below left

=Ub	Operating voltage
0V	0V Operating voltage
A	BUS A (subnet RS-485)
B	BUS B (subnet RS-485)

2x P-COM connectors

P-COM

Subnet and operating voltage

Socket top left (under the cover)

USB Type-B

Programming interface

2x 2-pole plug top right

GND	GND (0V) of the 0(1)-10V analog output
AA1	0(1)-10V output Sink or Source (coupled with DMX output 1)
A8	Hybrid relay output 230V 6.5A (coupled with feedback output A8)
A8	Hybrid relay output 230V 6.5A (coupled with feedback output A8)

12-pole plug below right front row

+(E)	+24V current limited for the inputs
E1	Input 1
E2	Input 2
E3	Input 3
E4	Input 4
E5	Input 5
E6	Input 6
E7	Input 7
E8	Input 8
GND	DMX512-IN GND (is connected to XLR-Pin-1)
DMX-	DMX512-IN DATA - (is connected to XLR-Pin-2)
DMX+	DMX512-IN DATA+ (is connected to XLR-Pin-3)

12-pole plug below right back row

+(A)	+24V current limited for outputs
A1	Output 1
A2	Output 2
A3	Output 3
A4	Output 4
A5	Output 5
A6	Output 6
A7	Output 7
A8	Output 8
GND	DMX512-OUT GND (is connected to XLR-Pin-1)
DMX-	DMX512-OUT DATA - (is connected to XLR-Pin-2)
DMX+	DMX512-OUT DATA+ (is connected to XLR-Pin-3)
