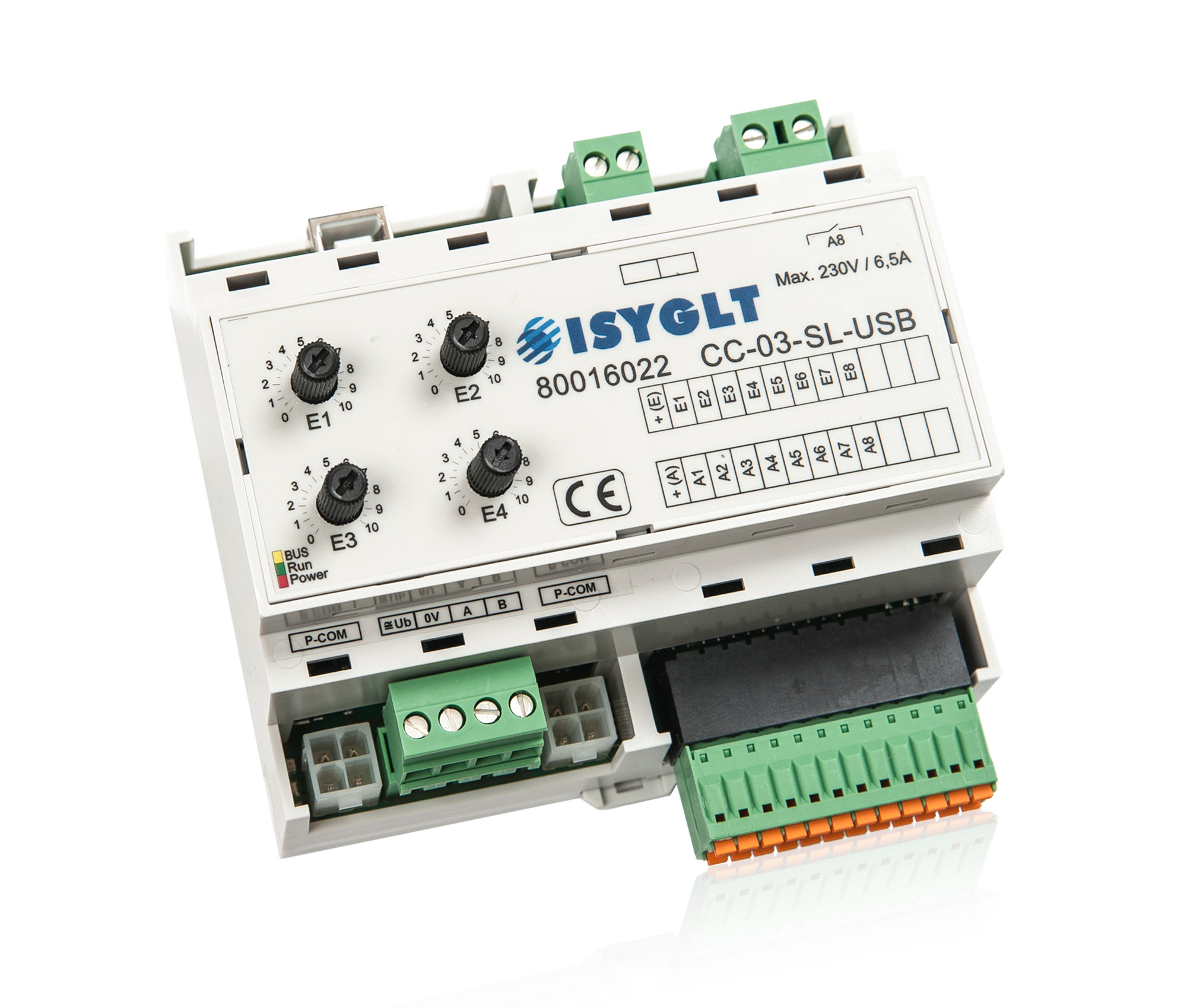

Compact Controller slim-line CC-03-SL-USB

The CC-03-SL-USB Compact Controller slim-line is a freely programmable Master Module of the ISYGLT BUS system. Due to hardware connection options, the controller can be used stand-alone for smaller control tasks. By the extension with the ISYGLT BUS components various control projects can be realised. The DMX and 1-10V interfaces have been omitted in the slim-line version.

Quick Facts

  • 8 inputs 24V for buttons
  • 8 outputs 24V for feedback signals
  • 4 rotary potentiometers
  • 1 relay output 230V
  • 1 USB Type-B for connecting a PC for programming

The slim-line CC-03-SL-USB Compact Controller has been developed for implementing small control tasks. The hardware includes a relay output in hybrid technology, 4 potentiometers, 8 low voltage button connections and 8 low voltage feedback signals. With these requirements, a large number of small controls can be implemented. The ISYGLT Controller is freely programmable and can be extended with the available ISYGLT BUS components.

Application examples are:

  • Small light controls with 1-4 fixed values adjustable by potentiometer
  • LED control via ISYGLT with potentiometer adjustment options (brightness, RGB colours, warm white/cold white)
  • Sequence controls

Electrical Data

Operating voltage 24V DC +/-20%
Current consumption 100mA at 24V + current of the feedback outputs max. 150mA = sum max. 250mA
Inputs (buttons) 24V DC, input current per input 5mA at 24V (only own voltage by bridge can be used!). Maximum line length: 50m
Outputs (feedbacks) 24V DC 0V switching, against internal + limited to 150mA (when all 8 outputs are assigned 18.75mA/channel). Maximum line length: 50m
Relay output 230V 1500VA (max. 6.5A) with Triac zero voltage switch
Isolation voltage 1000V (ISYGLT BUS / analog outputs)
Interface 1 RS-485 subnet BUS max. 5.6V limitation by Z-diodes
Interface 2 USB 2.0 Typ-B socket for connecting a PC for programming
Program memory Program memory for user program:
24 KByte (EEPROM) programmable
Scene memory:
8 KByte (EEPROM) for light scenes, non-volatile (not expandable)
Connection screw terminals 2.5mm² pluggable, pluggable spring type terminals 1.5mm²
Operating temperature -10°C...+50°C
Storage temperature -25°C...+70°C
Humidity 0...85 % r. h. non-condensing
Protection class IP 30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP
Dimensions WxHxD 106x90x59mm
Weight 200g

Ordering Data and Conformity

Type designation CC-03-SL-USB
Article no. 80016022
Make ISYGLT
Conformity CE

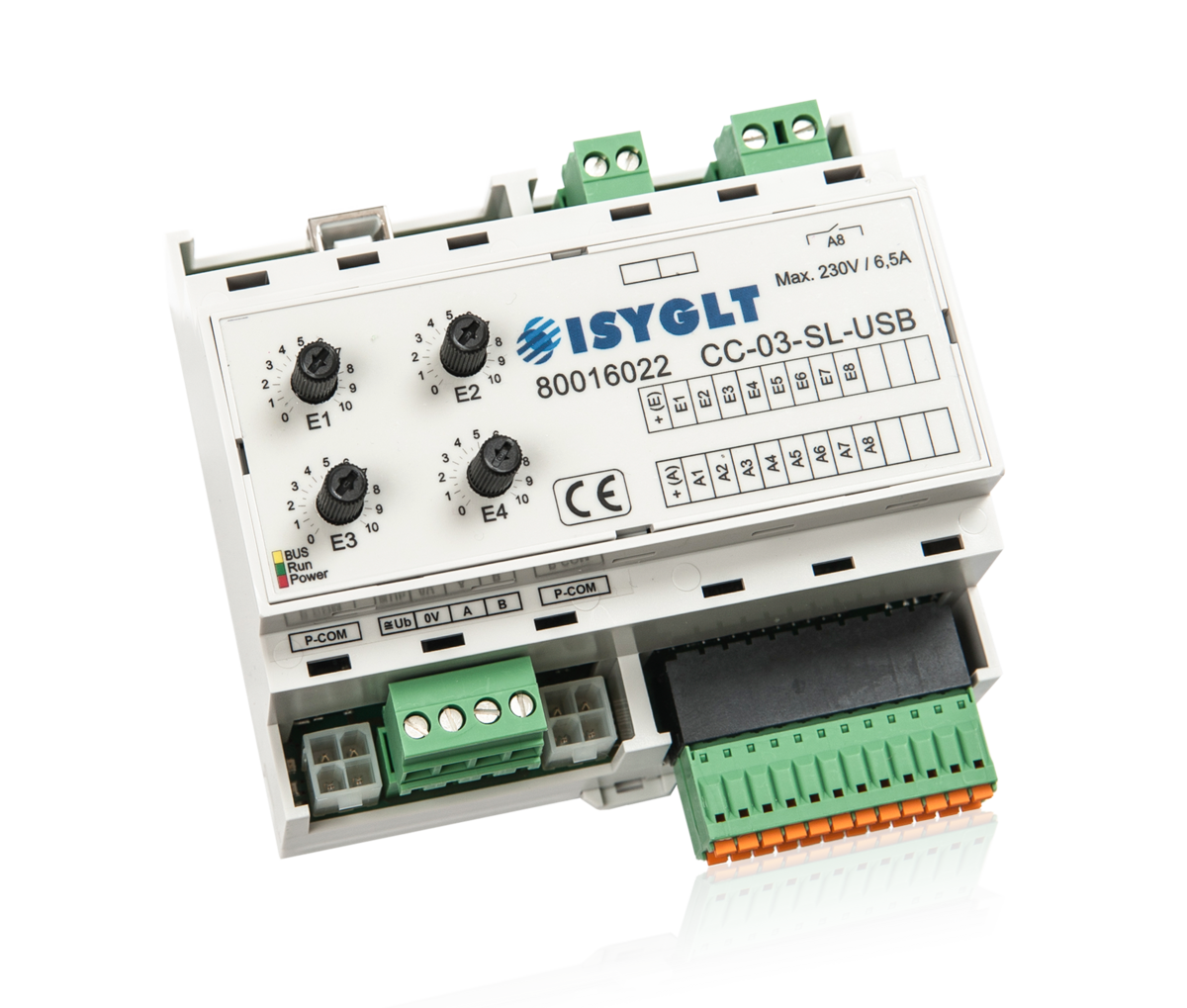

Screen resolution JPG
Dimensions

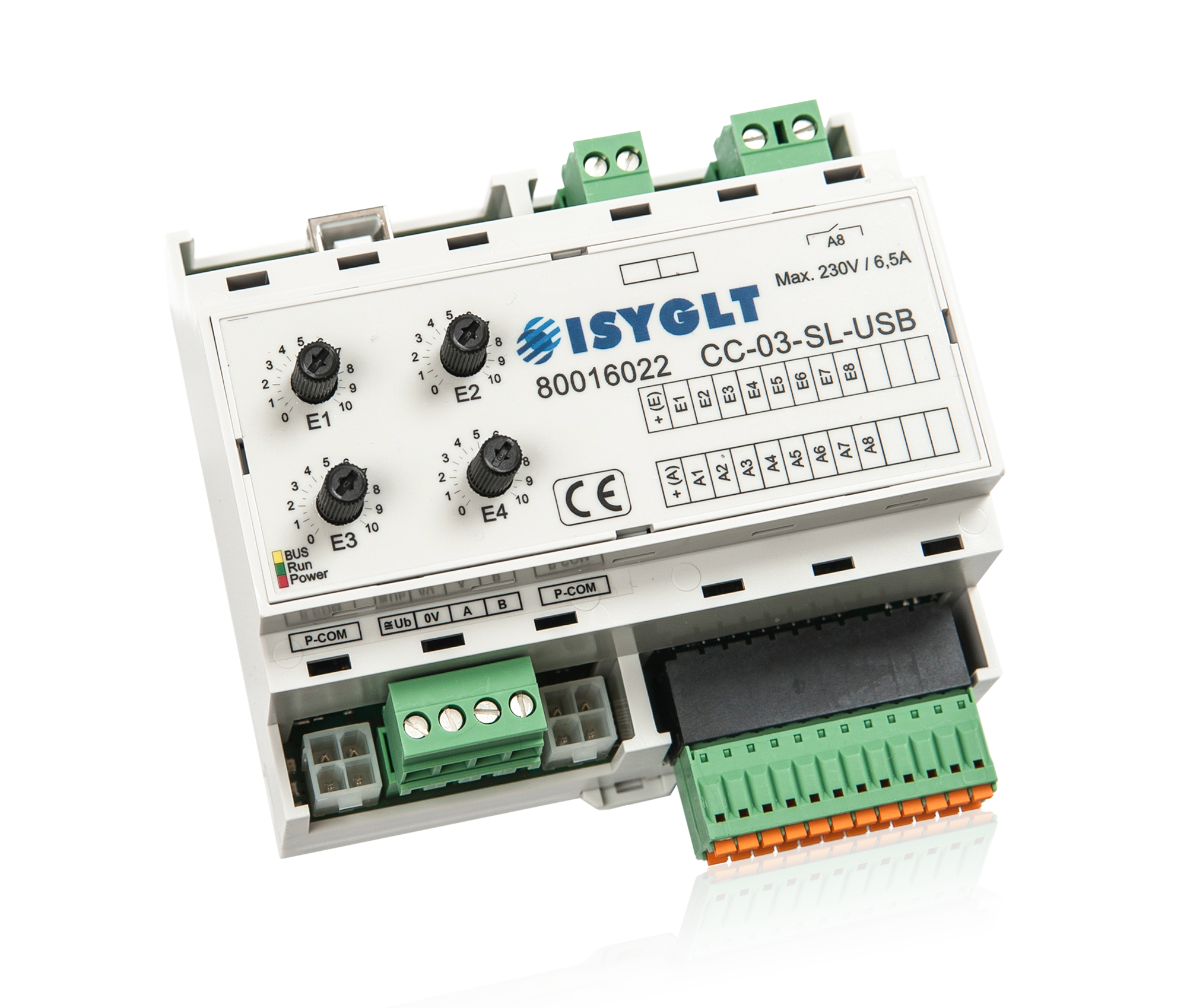

Print resolution JPG

Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError BUS
blinkingInterference-free data transmission via the BUS line
greenProcessor functionequaly blinkingSystem ok but no DCF-77 time received
2x short blinkingSystem ok and DCF-77 time received

Software

Parameterisation with ProgramDesigner

In the ISYGLT ProgramDesigner you will find the parameterisation options for the ISYGLT operation:

  • Assignment of the DMX channels
  • Setting the value range/limit stops of the potentiometers
  • Define user dimming curves

Pin Assignment

4-pole plug below left

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (subnet RS-485)
B BUS B (subnet RS-485)

2x P-COM connectors

P-COM Subnet and operating voltage

Socket top left (under the cover)

USB Type-B Programming interface

2x 2-pole plug top right

Free
Free
A8 Hybrid relay output 230V 6.5A (coupled with feedback output A8)
A8 Hybrid relay output 230V 6.5A (coupled with feedback output A8)

12-pole plug below right front row

+(E) +24V current limited for the inputs
E1 Input 1
E2 Input 2
E3 Input 3
E4 Input 4
E5 Input 5
E6 Input 6
E7 Input 7
E8 Input 8
Free
Free
Free

12-pole plug below right back row

+(A) +24V current limited for outputs
A1 Output 1
A2 Output 2
A3 Output 3
A4 Output 4
A5 Output 5
A6 Output 6
A7 Output 7
A8 Output 8
Free
Free
Free

Additional Equipment


CC-03-SL-USB

Article no.: 80016022

The CC-03-SL-USB Compact Controller slim-line is a freely programmable Master Module of the ISYGLT BUS system. Thanks to hardware connection options, the Controller can be used as a stand-alone unit for smaller control tasks. A wide range of control projects can be implemented by adding the ISYGLT BUS components. The DMX and 1-10V interfaces have been dispensed with in the slim-line version.
