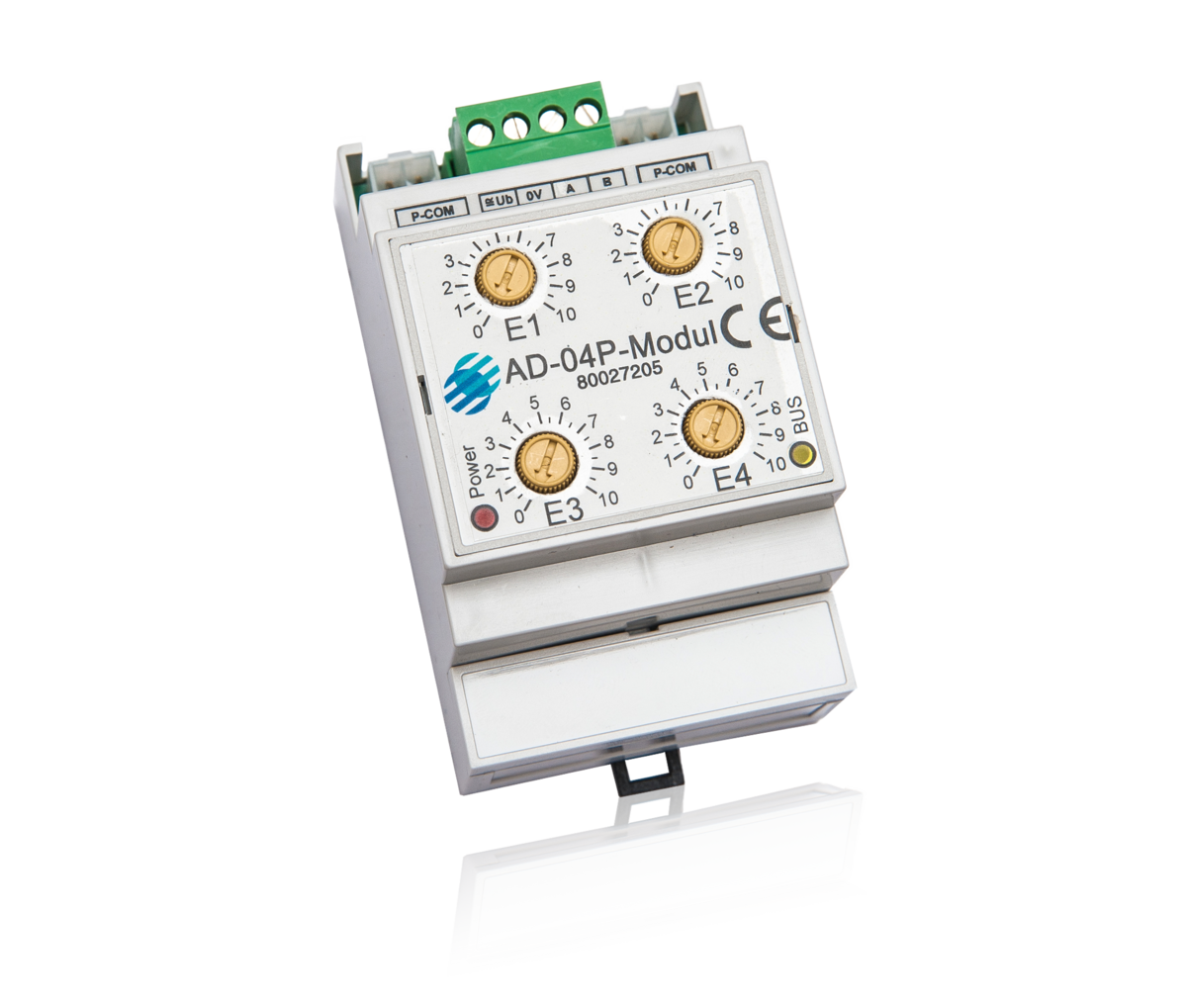

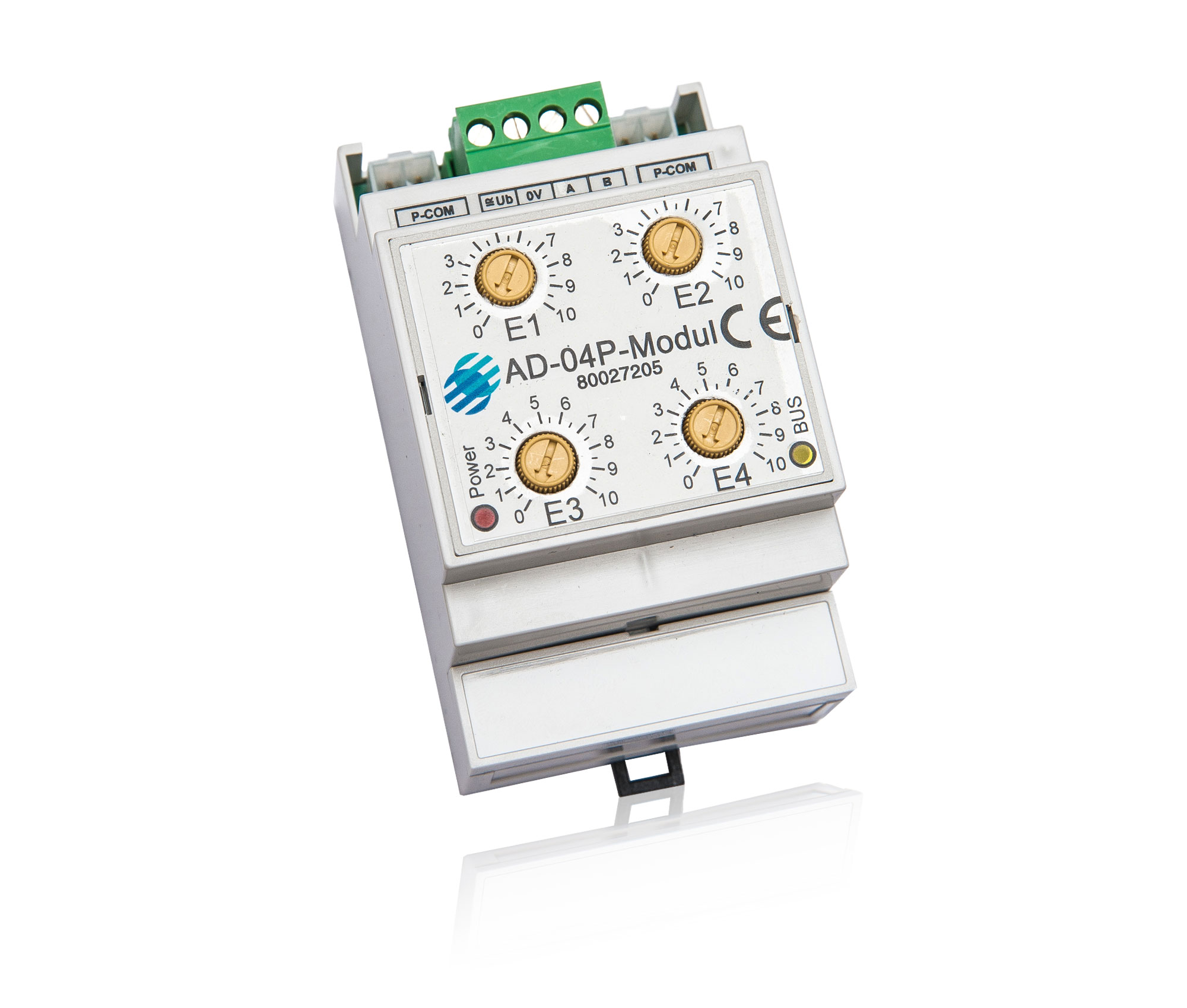

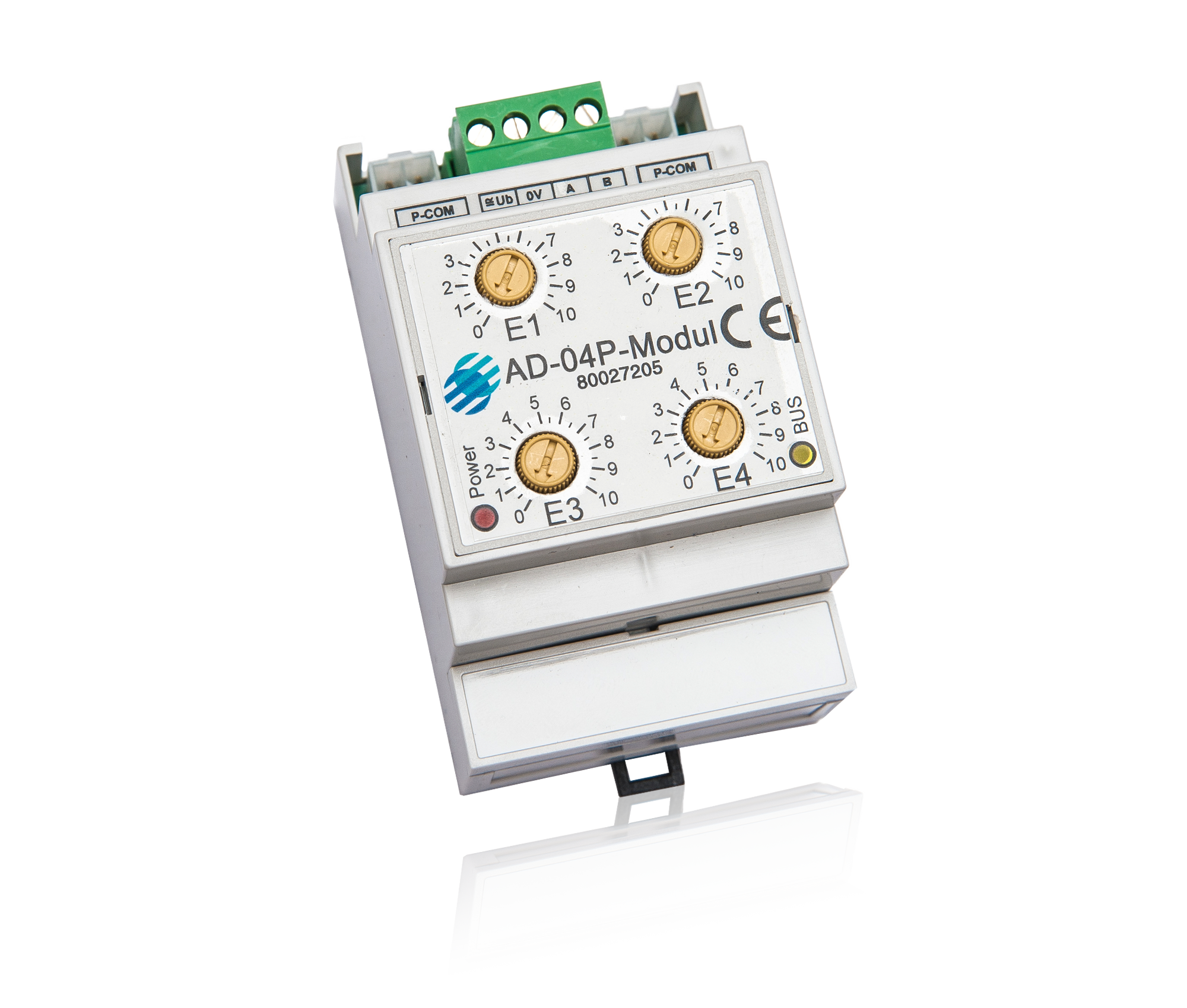

Analog Module AD-04P

Analog Input Module with 4 potentiometers on the module.
The individual analog channels are available in the Master Module for further links, depending on the application purpose.

Quick Facts

  • 4 analog inputs (4 potentiometers on module)
  • 8 bit resolution per channel
  • setpoint setting
  • dimming value setting
  • comparison value setting

The parameterisation module is used to enter 4 setpoints with a value range of 0-100% (0-255). The setpoints are set for each channel using a separate potentiometer integrated in the module. The resolution of each channel is 8 bits. The individual analog channels are available in the Master Module for further links, depending on the application purpose.

Electrical Data

Operating voltage 12V-35V DC or 12V-27V AC
Current consumption 45mA at 12V, 25mA at 24V
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection screw terminals pluggable
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Protection class IP30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 3 HP
Dimensions WxHxD 53x90x59mm
Weight 230g

Ordering Data and Conformity

Type designation AD-04P
Article no. 80027205
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Wiring Diagrams

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located under the cover of the module.

Special function DIP switch 1

DIP-1 Setting
OFFData transmission rate 38400 Baud
ONData transmission rate 9600 Baud




Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError BUS
blinkingInterference-free data transmission via the BUS line

Pin Assignment

4-pole plug top

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (subnet RS-485)
B BUS B (subnet RS-485)

2x P-COM connectors

P-COM Subnet and operating voltage
