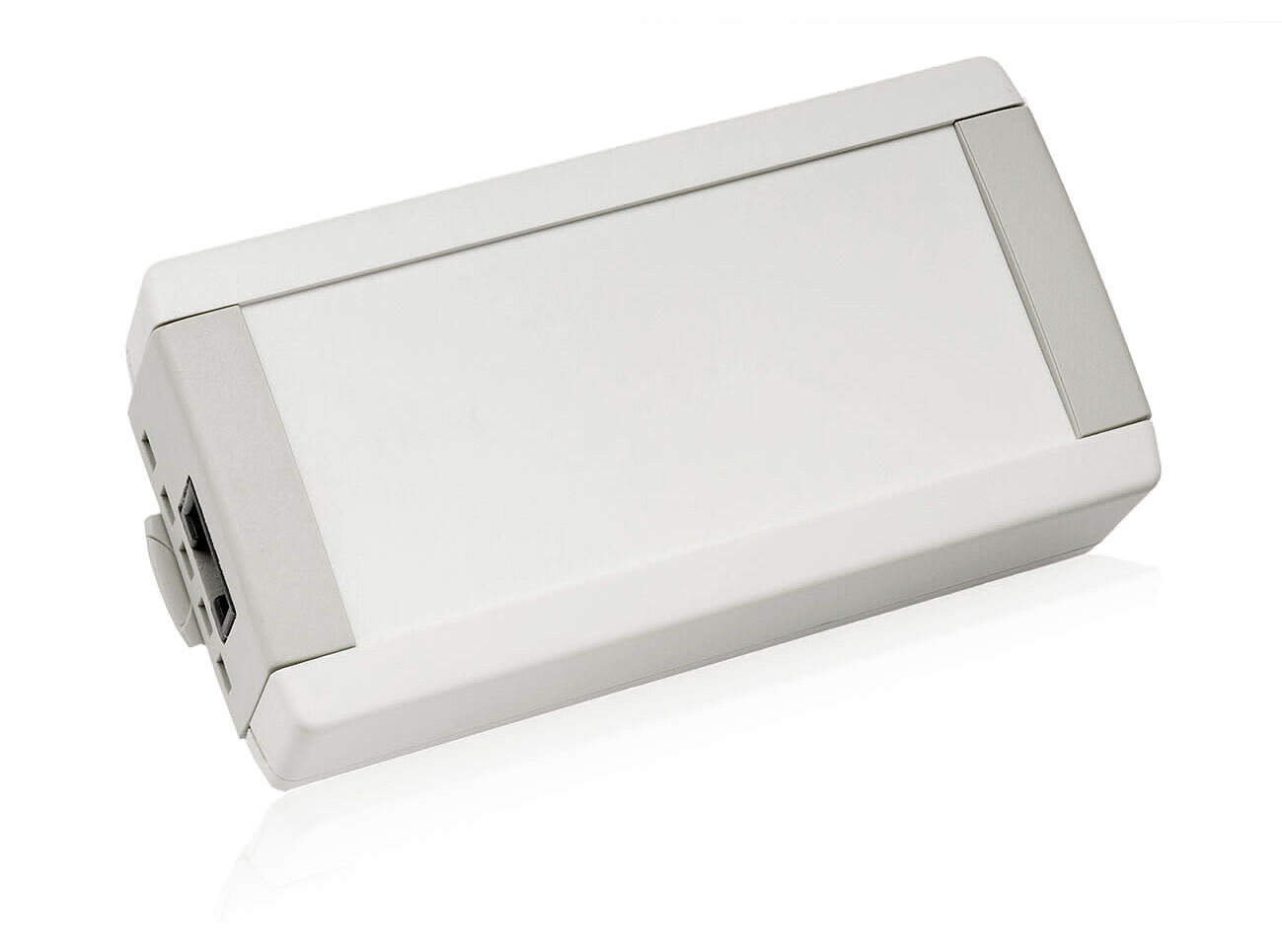

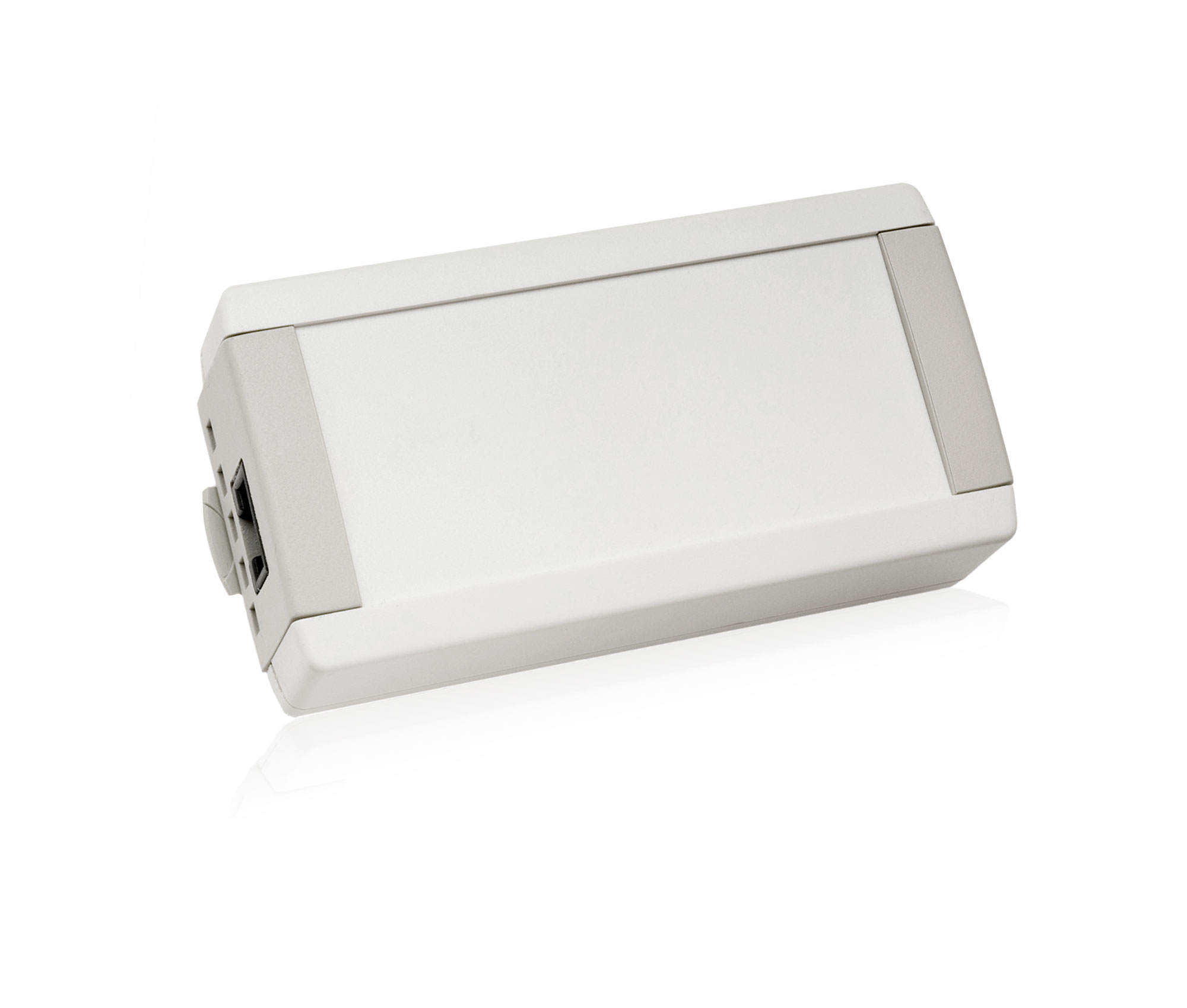

Interface Module RS232-GW-02

The RS232-GW-02 module is a universally parameterisable Interface Module.

Quick Facts

  • interface to external systems
  • beamer
  • professional video recorders
  • video and audio switch
  • crossbars

The RS232-GW-02 module is a universally parameterisable Interface Module. Possible applications include systems and studio equipment such as beamers, professional video recorders, video and audio switches or crossbars. You can receive a detailed description on request in paper form or as a document by mail.

Electrical Data

Operating voltage 12V to 35V DC or 12V to 27V AC
Current consumption 24V DC 30mA
Interface 1 RS485 interface for the ISYGLT BUS for communication with modules
Interface 2 RS232 interface for connection of PC / device
Connection RJ45 and SUB-D socket 9-pole
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85% r. h. non-condensing
Protection class IP30

Design, Dimensions, Weight

Design plastic housing light grey, with fixing clip
Dimensions WxHxD 102x54x30mm
Weight 85g

Ordering Data and Conformity

Type designation RS232-GW-02
Article no. 80087021
Make ISYGLT
Conformity CE

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located inside the module.


Function Indicators (LEDs on the side of the Module)

LEDDesignationStateMeaning
yellowPower / BUSOffNo operating voltage
OnOperating voltage
blinkingInterference-free data transmission via the BUS line
redSendingOnSignals the sending of data
redReceivingOnSignals the reception of data

Parameterisation with ProgramDesigner

  • Transmission times, pauses and repetition rates
  • Various send sequences (strings, variables...)
  • Various reception sequences
  • Trigger pattern
  • Timeout periods
  • String masks
  • Various checksums
  • Definition of the areas to be evaluated for the ISYGLT system

Pin Assignment

RJ45 socket

PINRJ45Colour (CAT)
1 = Ub Operating voltageOrange / White
20V Operating voltageOrange
3FreeGreen / White
4FreeBlue
5FreeBlue / White
6FreeGreen
7 Subnet (BUS A, RS-485)Brown / White
8Subnet (BUS B, RS-485)Brown

SUB-D socket 9-pole

PINSUB-D socket 9-poleSUB-D socket 9-pole
-Jumper position horizontal (see picture) for connection to PCJumper position vertical (see picture) for connection to an external device
1FreeFree
2Output TxDInput RxD
3Input RxDOutput TxD
4Input DSROutput DTR
5GND (RS-232) ground potential-free to ISYGLT BUSGND (RS-232) ground potential-free to ISYGLT BUS
6Output DTRInput DSR
7FreeFree
8FreeFree
9FreeFree

Jumper



RS232-GW-02

Article no.: 80087021
