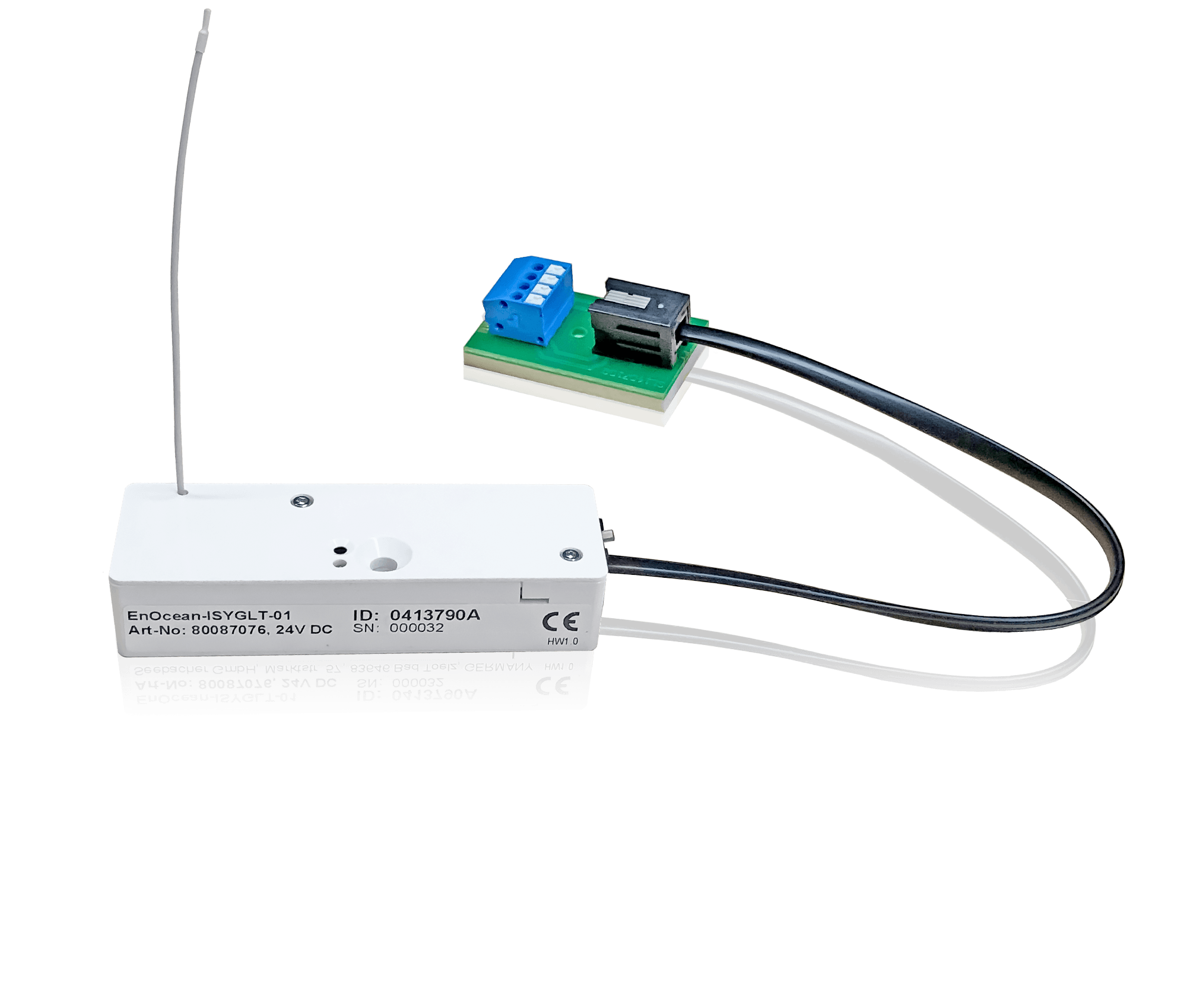

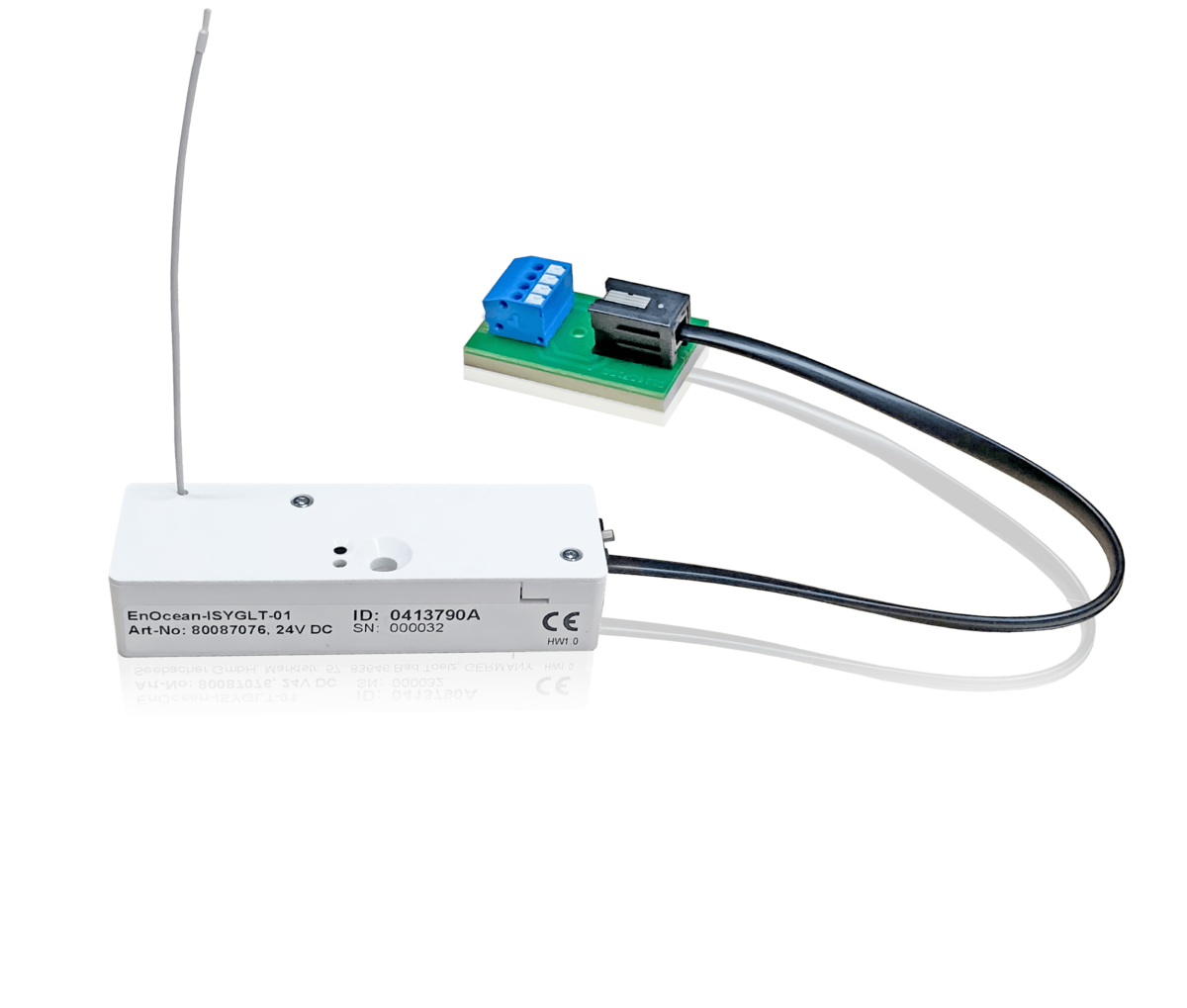

Sensor/Actuator Module EnOcean-ISYGLT-01

The EnOcean-ISYGLT-01 Sensor/Actuator Module is used for wireless radio connection of ISYGLT modules to EnOcean technology. Up to 8 of these Sensor/Actuator Modules can be managed and controlled by one GW-EnOcean-08 Gateway.

Quick Facts

  • wireless radio connection of modules
  • many ISYGLT modules compatible
  • preserves valuable building fabric, no further cables necessary
  • can also be used as EnOcean Repeater level 1 or 2

The EnOcean-ISYGLT-01 Sensor/Actuator Module is used for wireless radio connection of defined ISYGLT modules to EnOcean technology. The module receives the information from the ISYGLT GW-EnOcean-08 Gateway and converts it into a mini ISYGLT BUS system with a maximum of 4 addresses.

For more complex applications this module can also be configured as EnOcean Repeater level 1 or 2.

The following modules can optionally be controlled with an EnOcean-ISYGLT-01:

ISYGLT addressVirtual module typeISYGLT module typeInformation
0, 1, 2, 3A EnOcean ISYGLT DA400DA-04-VX, LED-04-xxxx, LED-03-xxx,
DSI/DALI-04B
Analog outputs AAx.1 to AAx.4,
Feedback actuator Timeout Ex.1,
all 4 modules receive the same dimming values 1-4
0, 1, 2, 3A EnOcean ISYGLT DIM2UD-700-X2, UD-700-M2, UD-500-xxAnalog outputs AAx.1 to AAx.2,
Feedback actuator Timeout Ex.1,
all 4 modules receive the same dimming values 1-2
0SA EnOcean ISYGLT IO44I/O-04B-xx, I/O-04UDigital outputs Ax.1 to Ax.4
Digital inputs Ex.1 to Ex.4
Input Ex.4 optionally also „Timeout“


Up to 8 EnOcean-ISYGLT-01 Sensor/Actuator Modules can be managed and controlled per GW-EnOcean-08 Gateway.

Electrical Data

Supply voltage 9-24V DC
Current consumption 15mA
Connection RJ10 plug, RS-485-BUS
Assembly screwing, gluing, inserting
Scope of delivery 20cm cable, RJ10 distributor
Operating temperature -20°C to +65°C
Storage temperature -20°C to +70°C
Humidity 0-85% r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design Mini PVC housing
Dimensions LxWxD 79.5 x 25.5 x 16mm
Weight 37g (incl. cable and connection adapter)

Ordering Data and Conformity

Type designation EnOcean-ISYGLT-01
Article no. 80087076
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Commissioning

The EnOcean-ISYGLT-01 Sensor/Actuator Module is connected for operation with an ISYGLT GW-EnOcean-08 Gateway. For the connection, the module must be in delivery state (LED flashes slowly). The EnOcean radio ID (8-digit hex number) is also required. This can be found on the module label.

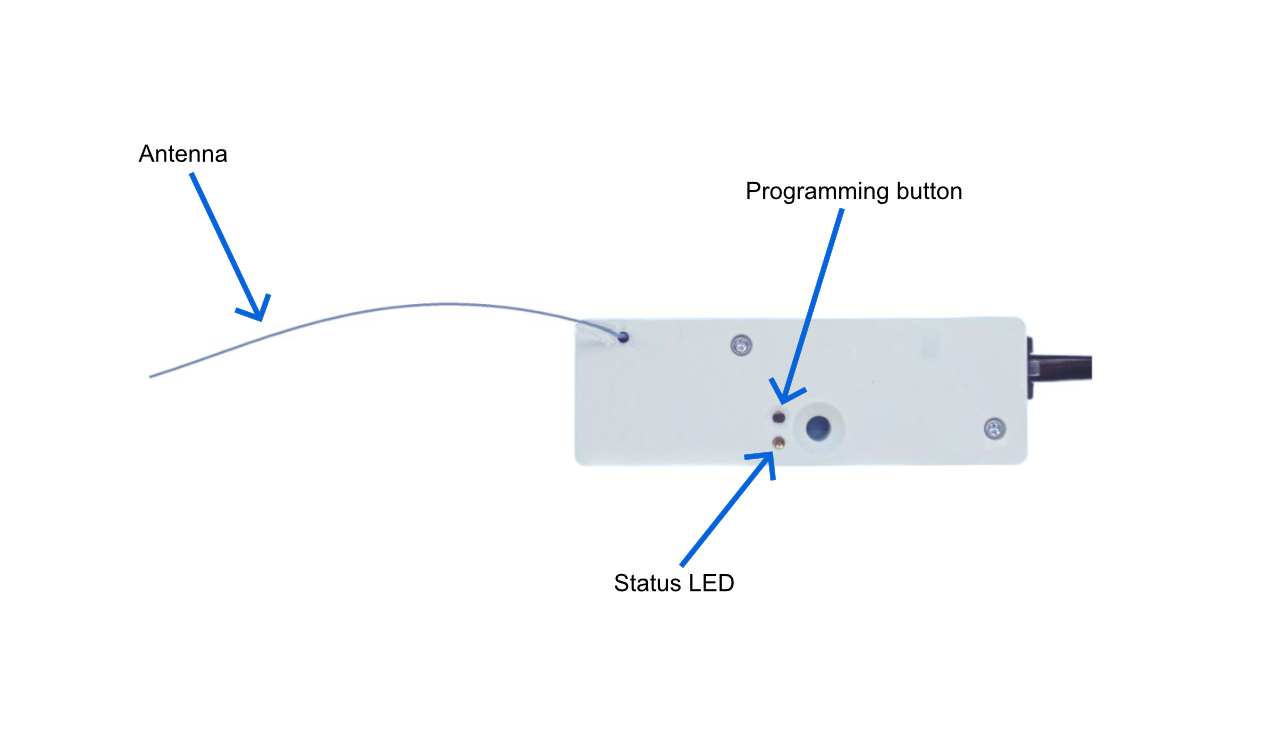

State of the status LED
LED stateMeaning
Flashes slowlyThe module is ready for operation in delivery state without BUS address.
Flashes quicklyThe module is ready for programming and addressing.
OFFThe module has been successfully programmed and uses 1-8 BUS addresses (check via simulator (debugger) in ProgramDesigner).
Flashes brieflyIf "Blitz bei Empfang" (means "Flash on reception") has been activated in the module parameters, the LED indicates the reception activity.



Programming mode
Programming buttonOperating mode
Push > 3sThe module changes to the address programming mode (LED flashes quickly). Now the addressing can be done with the ProgramDesigner.
Briefly pushThe module sends its EnOcean radio ID. So the ID can be displayed e.g. with the DolphinView programme.
Push > 8sReset - the module is returned to the delivery state without address(es).

The module is set up in ProgramDesigner according to its use.

The used BUS address must exist in ISYGLT GW-EnOcean-08. Afterwards the parameters must be transferred. Shortly afterwards the connection with the Gateway is registered and available.

If the module should be connected to another Gateway, it must be reset to delivery state by a long button press (> 8s).


Software


Pin Assignment

4-pole plug

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)
