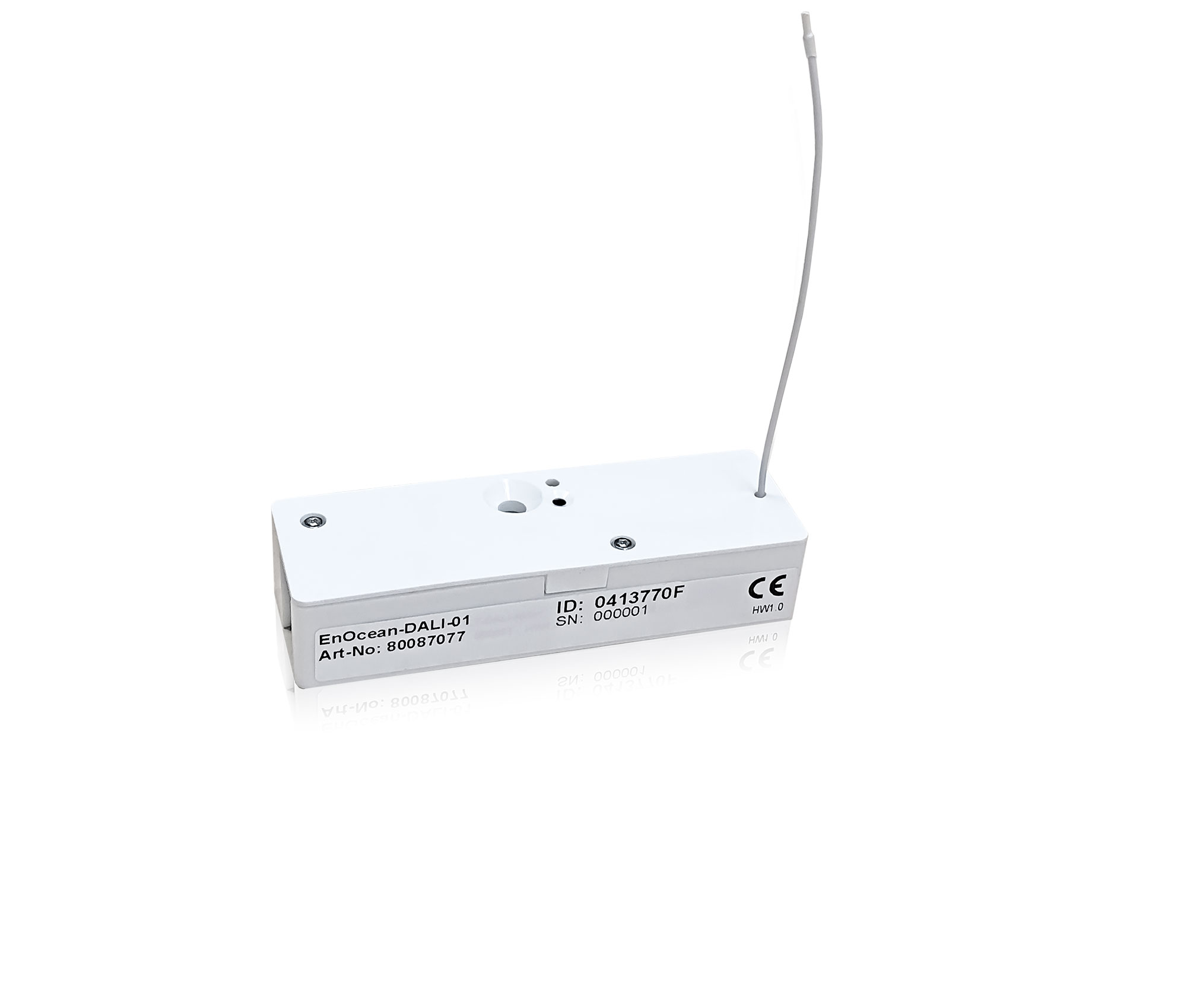

Actuator Module EnOcean-DALI-01

EnOcean Receiver for wireless control of DALI lights with the ISYGLT system.

Quick Facts

  • control of DT6, DT8, Broadcast, Tunable White, RGB, XY coordinates
  • can also be used as EnOcean Repeater level 1 or 2

The EnOcean DALI-01 Actuator Module is used for wireless radio connection of lights with DALI ballasts. A wide range of DALI control modes is possible via software parameterisation.

These are for example:

  • DT6 Broadcast or group control, HCL, RGB, RGBW
  • DT8 Broadcast or group control, HCL, colour point, RGB

Each ISYGLT Gateway GW-EnOcean-08 can manage and control up to 8 virtual "A EnOcean ISYGLT DALI" Actuator Modules. Up to 4 EnOcean-DALI-01 Modules can be linked to each virtual "A EnOcean ISYGLT DALI" Actuator Module via radio ID and controlled in synchronisation.

Electrical Data

Supply voltage DALI power supply, D4i, OSRAM DEXAL ECG
Current consumption 15mA
Connection 2-pole spring-loaded terminal
Assembly screwing, gluing, inserting
Scope of delivery 20cm cable, RJ10 distributor
Operating temperature -20°C to +65°C
Storage temperature -20°C to +70°C
Humidity 0-85% r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design Mini PVC housing
Dimensions LxWxD 79.5 x 25.5 x 16mm
Weight 27g

Ordering Data and Conformity

Type designation EnOcean-DALI-01
Article no. 80087077
Conformity CE

Tender Documents

Instruction Manuals

Wiring Diagrams


The EnOcean-DALI-01 Actuator Module is connected for operation with an ISYGLT GW-EnOcean-08 Gateway. For the connection, the module must be in delivery state (LED flashes slowly). The EnOcean radio ID (8-digit hex number) is also required. This can be found on the module label.


State of the status LED
LED stateMeaning
Flashes slowlyThe module is ready for operation in delivery state without BUS address.
Flashes quicklyThe module is ready for programming and addressing.
OFFThe module has been successfully programmed and uses 1-8 BUS addresses (check via simulator (debugger) in ProgramDesigner).
Flashes brieflyIf "Blitz bei Empfang" (means "Flash on reception") has been activated in the module parameters, the LED indicates the reception activity.


Programming mode
Programming buttonOperating mode
Push > 3sThe module changes to the address programming mode (LED flashes quickly). Now the addressing can be done with the ProgramDesigner.
Briefly pushThe module sends its EnOcean radio ID. So the ID can be displayed e.g. with the DolphinView programme.
Push > 8sReset - the module is returned to the delivery state without address(es).

The module is set up in ProgramDesigner according to its use.

The used BUS address must exist in ISYGLT GW-EnOcean-08. Afterwards the parameters must be transferred. Shortly afterwards the connection with the Gateway is registered and available.

If the module should be connected to another Gateway, it must be reset to delivery state by a long button press (> 8s).


Pin Assignment

4-pole plug

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)


Article no.: 80087077

The Actuator Module is used for wireless control of DALI lights with the ISYGLT system. DALI control types such as DT6 and DT8 broadcast and group control, HCL, RGB, RGBW and Tunable White are possible.
