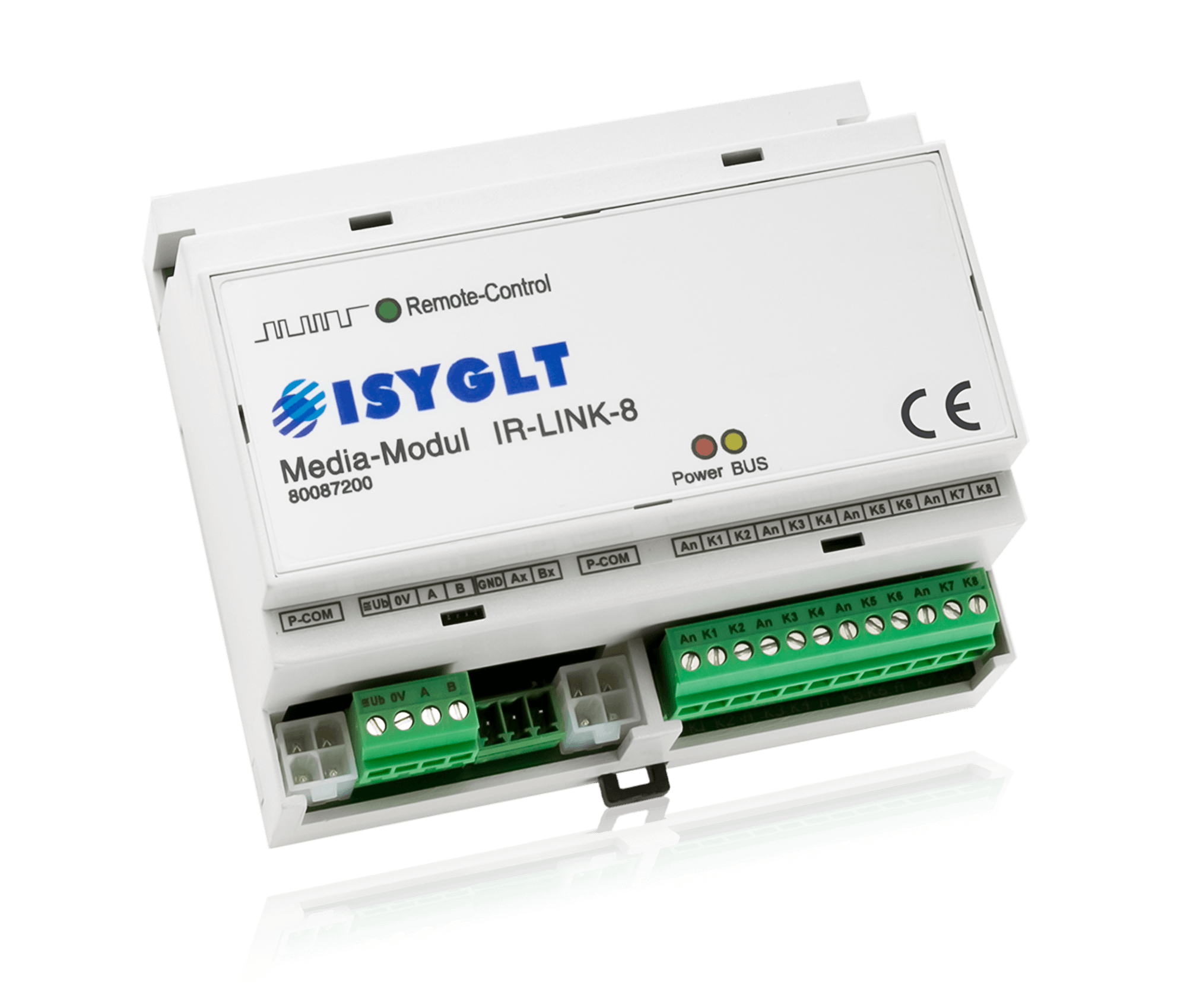

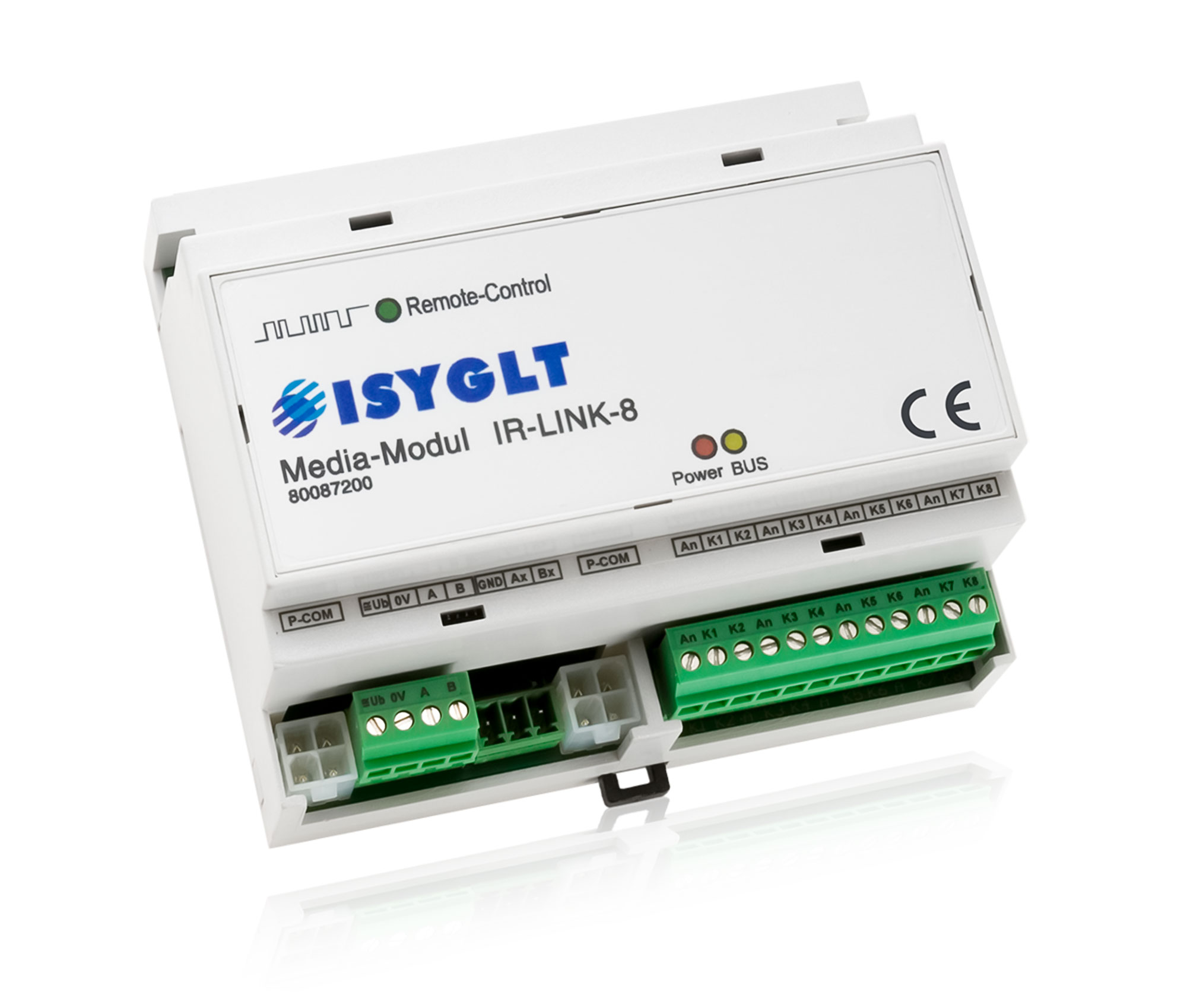

Media Module IR-LINK-8

Control for IR remote control devices by means of adhesive transmitter diodes.

Quick Facts

  • control of devices with IR interface
  • command sequences of the IR remote controls
  • 255 different IR control commands
  • adhesive transmitter diodes

The Media Module is used to control devices with an IR interface via the ISYGLT building management system. With this module the corresponding command sequences of the IR remote controls of different devices can be output comfortably.
The module can manage 255 different IR control commands. The command sequences of the remote controls are taught-in by a scanner in connection with a PC and stored under a corresponding command number.
The ISYGLT system can be used to process individual commands as well as user-specific command sequences.

Electrical Data

Operating voltage 12V to 35V DC or 12V to 27V AC
Current consumption standby: 12V = 40mA; 24V = 25mA; 35V = 18mA
module active: (IR transmitters all 8 LEDs connected) short-time 12V = 350mA; 24V = 180mA; 35V = 150mA
Outputs 8 connections for IR-LED 5V 50mA
IR transmitter diodes 2 pieces transmitter diodes (Article no. 80087201) are included in the delivery. More can be reordered.
Connection screw terminals 1.5mm², pluggable
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r. h. non-condensing
Protection class in non-installed state IP30

Design, Dimensions, Weight

Design DIN rail-mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP
Dimensions WxHxD 106x90x59mm
Weight 200g

Ordering Data and Conformity

Type designation IR-LINK-8
Article no. 80087200
Conformity CE

Tender Documents

Instruction Manuals

Wiring Diagrams

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located under the cover of the module.

Function Indicators (LEDs on the Module)

redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOff / OnError BUS
blinkingInterference-free data transmission via the BUS line

Pin Assignment

4-pole plug below left

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (subnet RS-485)
B BUS B (subnet RS-485)

2x P-COM ports

P-COM Subnet and operating voltage

12-pole plug below right

An Anode IR LED 1-2
K1 Cathode IR LED 1
K2 Cathode IR LED 2
An Anode IR LED 3-4
K3 Cathode IR LED 3
K4 Cathode IR LED 4
An Anode IR LED 5-6
K5 Cathode IR LED 5
K6 Cathode IR LED 6
An Anode IR LED 7-8
K7 Cathode IR LED 7
K8 Cathode IR LED 8

Additional Equipment

  • ISYGLT - IR-LINK-SD, additional transmitter diode with 2m cable (Article no.: 80087201)
  • ISYGLT - IR-SCAN-1, module for teaching IR remote controls (Article no.: 80087210)


  • ISYGLT - IR-LINK-8, module for control of up to 8 media devices (Article no.: 80087200)
  • ISYGLT - IR-LINK-RS485, module for controlling up to 20 IR power transmitters (Article no.: 80087202)
