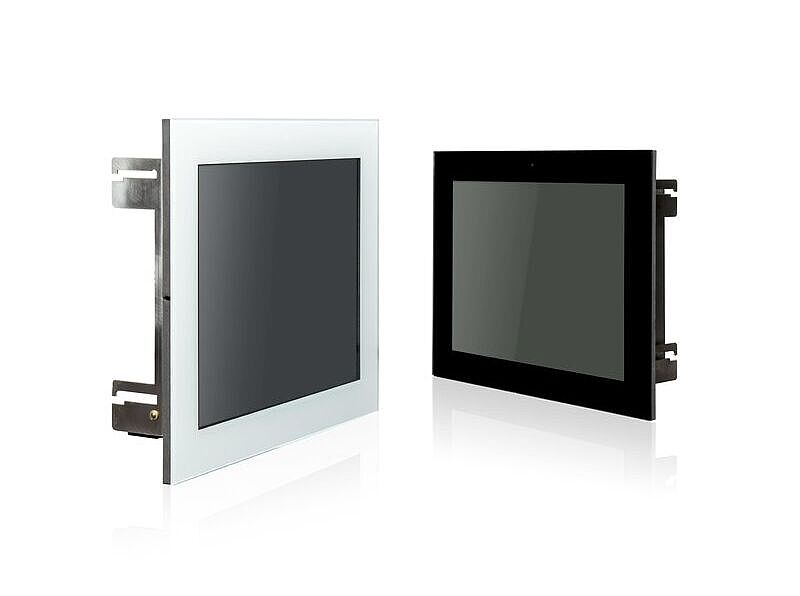

Multi-Touch PC HomeCockpit Levior 15 inch

The capacitive Multi-Touch PC serves as a central control station or for convenient on-site operation. The Touch PC for wall installation can be used for many applications in building automation and is ideally suited for applications with IPMS visualisation.

Quick Facts

  • frame colour: white and black
  • display: 15 inch TFT colour LCD (LED backlight)
  • resolution: 1024 x 768 px
  • touch: capacitive 10 finger multi-touch
  • memory: 4 GB RAM
  • hard disk: 60 GB SSD
  • low-energy technology
  • industry standard

The Multi-Touch PC in industrial quality is especially suitable for applications with IPMS visualisation (Ready for IPMS) and is therefore fully compatible with the ISYGLT system.

The HomeCockpit Levior panel PCs are characterised by low-energy technology, industry-standard hardware and high performance: N2930 Celeron QuadCore, 60SSD, 4GB RAM, Windows 10 IoT Enterprise 2016, capacitive 10 finger multi-touch with glass surface and operating system.

The flush-mounted integration via flush-mounted box with 3D fine adjustment makes the Multi-Touch PC very easy to install.

The Multi-Touch PC serves as a central control station or for convenient on-site operation. Programming is very easy with ISYGLT basic knowledge (ISYGLT certification) and html programming knowledge and without expensive additional software.

Electrical Data

Display 15 inch TFT colour LCD (LED backlight)
Resolution 1024 x 768 px
Touch capacitive 10 finger multi-touch
CPU N2930 Celeron Quad Core
Memory 4 GB RAM
Hard disk 60 GB SSD
USB port 2x USB 3.0, 2x USB 2.0, 1x USB 2.0 Front
Lan Port 1x RJ45 LAN Gigabit
Audio 1x Line-Out-Port
Video Port 1x DVI
Power supply unit DIN rail power supply unit 15V / 4A
Operating system Windows 10 IoT Enterprise 2016 (on request Windows 7 SP1 Embedded)
Ambient temperature in operation 0° to 35° C

Design, Dimensions, Weight

Design back side stainless steel housing, front side continuous 3mm ESG glass
Diagonal 15"
Dimension TPC LxWxH 387x311x75mm
Dimensions flush-mounted housing LxWxH 360x290x85mm

Ordering Data and Conformity

Type designation Levior 150 black / Levior 150 white
Article no. DL122201 / DL122202
Make HomeCockpit
Conformity CE

Software


Interfaces

  • 2x USB 3.0, 2x USB 2.0, 1x USB 2.0 front
  • 1x RJ45 LAN Gigabit
  • 1x Line-Out-Port
  • 1x DVI

Additional Equipment

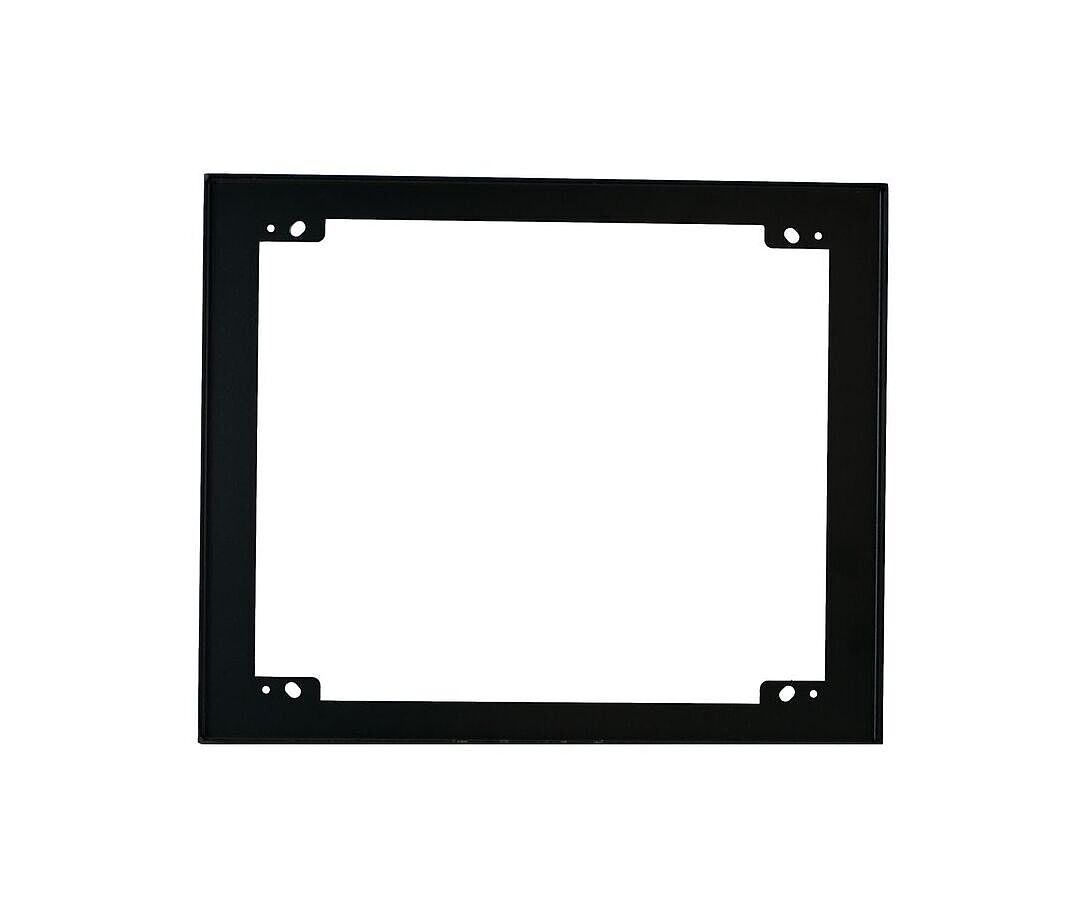

  • HomeCockpit Wall Box 150, (flush-mounted box), 360x290x85mm (Article no. DL212101)

Variants

  • Frame colour black: HomeCockpit Levior 150, capacitive Multi-Touch PC 15 inch black (Article no. DL122201)
  • Frame colour white: HomeCockpit Levior 150, capacitive Multi-Touch PC 15 inch white (Article no. DL122202)
