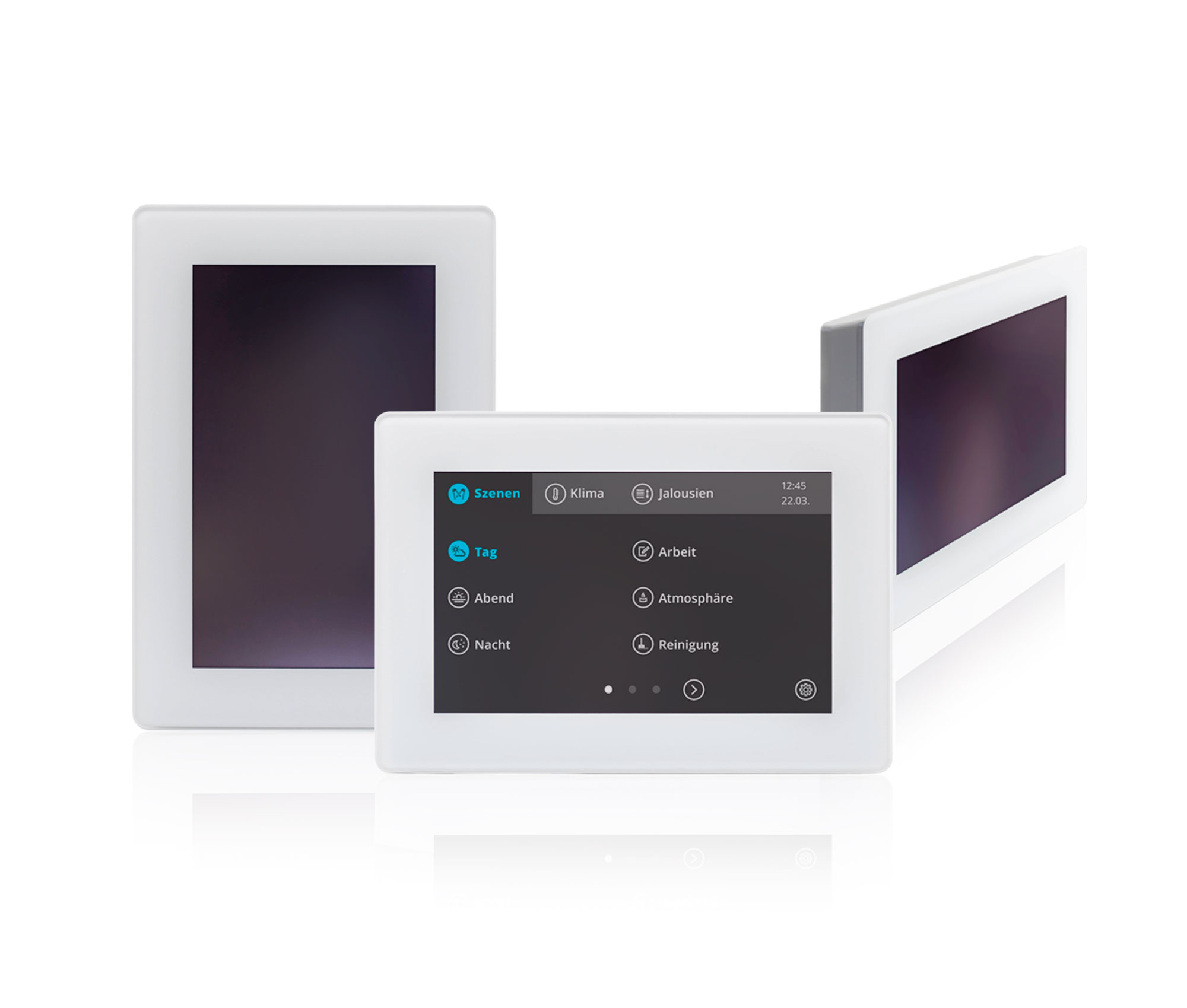

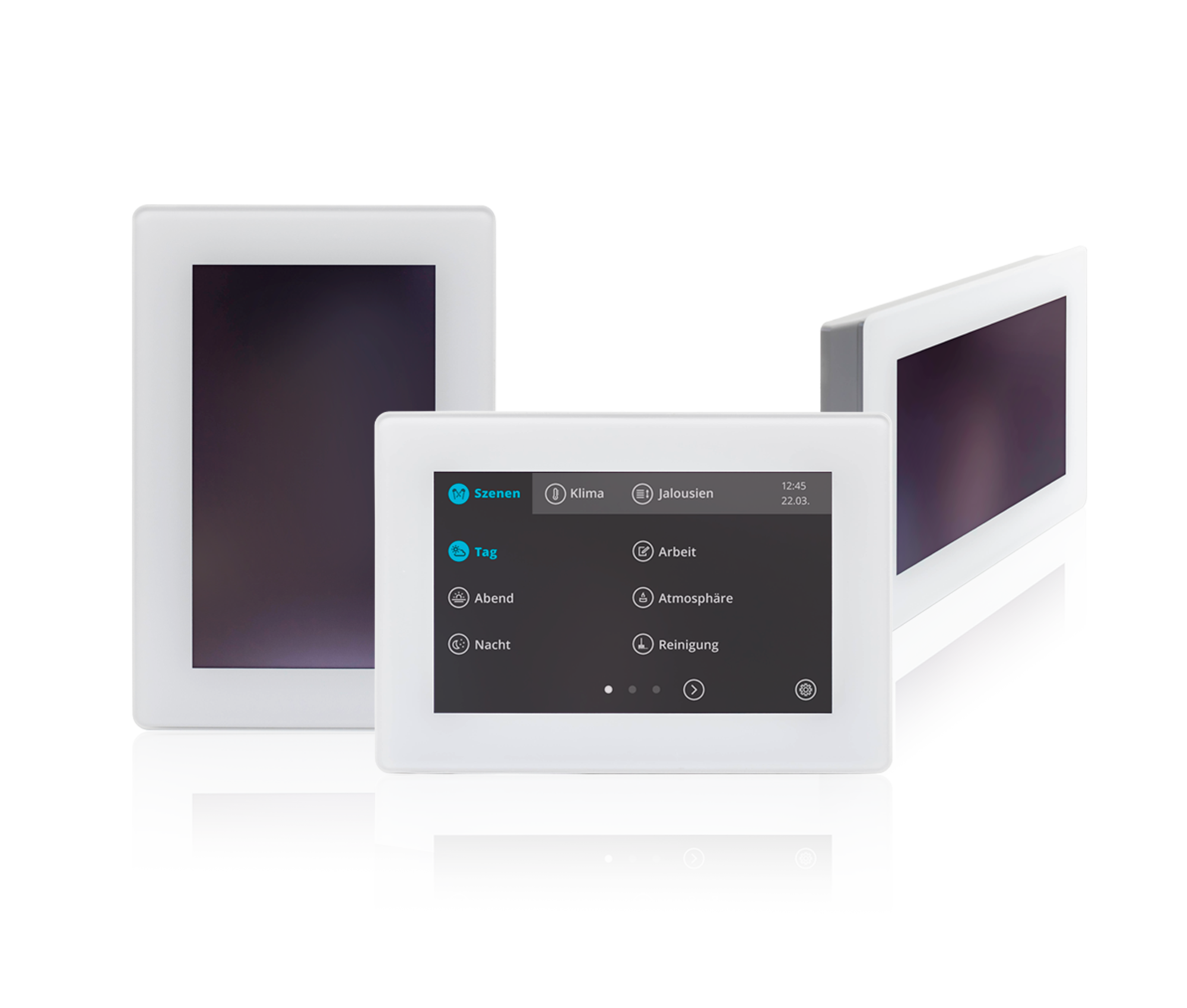

Wall-Touch with glass front WT-G-05w

Multifunctional touch control panel with full-surface reflection-minimised glass front for mounting on a flush-mounted switch box. The touch panel is an ISYGLT BUS participant, so no network infrastructure is required. All necessary data is directly available at all times and even after a power failure, operation is possible again within 2-3 seconds.

Quick Facts

  1. 5" touch display
  2. directly at the BUS
  3. white glass front
  4. standard switch box
  5. upright or horizontally
  6. as room control panel
  7. as adjustment tableau
  8. as a Smart Home control center

The ISYGLT Wall-Touch glass panels WT-G were developed as operating, control and adjustment panels for direct operation on the ISYGLT-BUS.

Particular emphasis was placed here on extremely high availability, fastest operational readiness, reliability and interference immunity.

The panels are equipped with a special real-time operating system, which enables the system to be operated at the latest 2-3 seconds after switching on the voltage. The panels are also absolutely insensitive to inadvertent (as often as required) disconnection/interruption of the voltage. This is common in the construction industry, especially during installation work, and is often a problem for PC-based systems. An IP network structure is therefore not necessary here.

The operating voltage is supplied via the ISYGLT-typical 4-pole BUS cable with the 24V carried in it and communication in the RS-485 industry standard. The address is set via the touch interface.

The design of the WT-G was deliberately kept discreet in order not to disturb the architectural effect of the room. Nevertheless, it blends into the environment as a high-quality glass panel and is also harmonious with most switch ranges. Versions are available: 5" in black and white and 7" with black glass front as flush-mounted version or as surface-mounted version with brushed stainless steel design cover panels (other colours and versions of the panels available on request).

Images can also be displayed using the screen saver function. Thus, the panel is also a beautiful picture frame when no operation is required.

The design of pages and functions is very easy with the ISYGLT TouchDesigner. We have developed many standardised interfaces, which allow programming to be carried out quickly and cost-effectively. The intuitive operating concept is based on our more than 20 years of experience with touch panels in control technology. Of course, completely individual pages with individually designed designs can also be developed with the TouchDesigner. The data is transferred to the panel via a micro SD card.

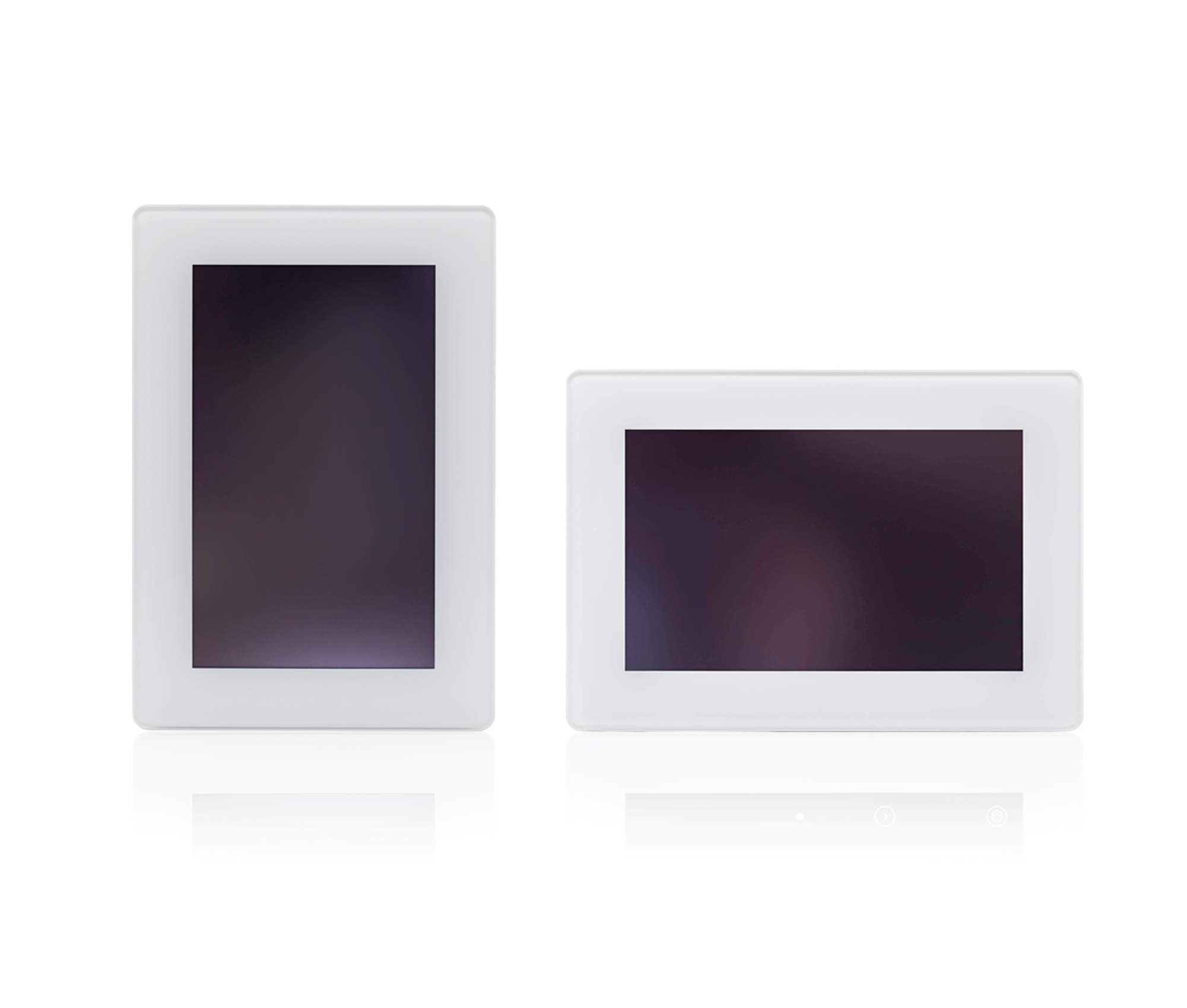

The panels can be used upright and horizontally. In order to get an optimal display even with flat viewing angles, the orientation of the panel can be adjusted individually. The reflection-minimized multitouch-capable display is therefore optimally suited for many areas of application.

The brightness of the display can be adapted to local conditions and can also be intelligently controlled by external sensors or commands.

An acoustic signal generator for messages or alarms with adjustable frequency is integrated.

Another special feature is the "D-O-T-Switch" function (Display-off-Touch-Switch). This allows the panel to be activated with a key function when the display is switched off. At the same time a command is sent, e.g. to switch on the light in the room. So you can switch on the light with your elbow, if you don't have a free hand, like you are used to with normal switches.

Application examples:

  • Smart Home Control Center
  • Room control unit for light control, temperature control, sun protection control
  • Conference room technology (many functions for multifunctional conference rooms are integrated)
  • Fault indication panel, monitoring panel
  • Light scene control panel for churches, event rooms and museums
  • Adjustment and control panel for heating/air conditioning/ventilation
  • Operating interface for aquarium or other systems (HMI)
  • Alarm and indicator panel
  • Audio/multiroom control

Examples for the design of our touch panel WT-G for Smart Home, building automation, light control and much more.

Electrical Data

Operating voltage 16V-27V DC
Current consumption max. 121mA, normal 116mA, standby 60mA (at 24V DC)
Resolution 800x480 px
Brightness TFT display adjustable via integrated light sensor
Protocol ISYGLT
Programming ProgramDesigner and TouchDesigner
Slot micro-SD for programming and data backup
Connection plug-in terminal 4-pole, Phoenix PTSM0.5/4-PI-2.5 for wires rigid 0.25-0.8mm, flexible 0.2-0.5mm², AWG 42-20;
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r. h. non-condensing
Protection class IP40

Design, Dimensions, Weight

Design wall mounting on standard switch box
Dimensions HxWxD: 141,3mm x 98,3mm x 18,2mm (+plug in socket approx. 20mm)
Weight 275g

Ordering Data and Conformity

Type designation WT-G-05w
Article no. 80023410
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Technical Drawings

Addressing


The BUS address for the Wall-Touch WT-G is set in the menu of the touch surface. How to get to the settings dialog depends on where the programmer created the link.


Display viewing angle


The panels can be used in upright and horizontally format. This is defined in the project settings. Due to the technology, the displays have a viewing direction in which the polarization causes a somewhat poorer detection from flat angles. To avoid this, the display can be rotated by 180°; the panel can also be installed simply rotated. For this there is a dialog where the optimal side for flat/side viewing is displayed by a green line.


Software

To program the functions, you need the ProgramDesigner. The TouchDesigner is available for the design of the touch surface and parameterisation.


Pin Assignment

4-pole plug

=Ub Operating voltage
0V 0V Operating voltage
A BUS A (Subnet RS-485)
B BUS B (Subnet RS-485)

Variants

Type designation Article no. Description
WT-G-05w 80023410 Wall-Touch 5" white
WT-G-05s 80023400 Wall-Touch 5" black
WT-G-07s-UP 80023402 Wall-Touch 7" black for flush-mounting
WT-G-07w-UP 80023412 Wall-Touch 7" white for flush-mounting
WT-G-07s-AP 80023401 Wall-Touch 7" black for surface-mounting
WT-G-07w-AP 80023411 Wall-Touch 7" white for surface-mounting
