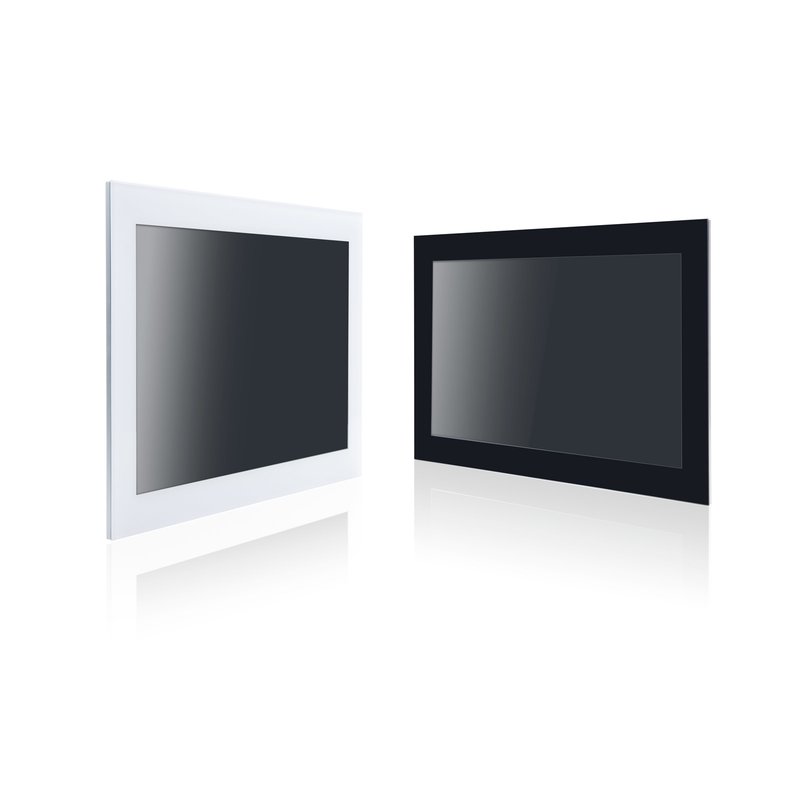

Multi-Touch PC HomeCockpit Major surface-mounted 21.5 inch

Large surface-mounted touch panel with Multi-Touch. Serves as a central control station or for convenient on-site operation. Can be used for many BUS systems and visualisations. The Touch PC has proven itself especially for applications with IPMS visualisation.

Quick Facts

  • frame colour: black
  • display: 21.5 inch TFT colour LCD (LED backlight)
  • resolution: 1920 x 1080 px
  • touch: capacitive 10 finger multi-touch
  • memory: 8 GB RAM
  • hard disk: 120 GB SSD
  • low-energy technology
  • industry standard
  • integrated microphone / loudspeaker

The Multi-Touch PC in industrial quality is especially suitable for applications with IPMS visualisation (Ready for IPMS) and is therefore fully compatible with the ISYGLT system.

The HomeCockpit panel PCs Major are characterised by low-energy technology, industry-standard hardware and high performance: N2930 Celeron QuadCore, 60SSD, 4GB RAM, Windows 10 IoT Enterprise 2016, capacitive 10 finger multi-touch with glass surface and operating system.

The Multi-Touch PC serves as a central control station or for convenient on-site operation. Programming is very easy with ISYGLT basic knowledge (ISYGLT certification) and html programming knowledge and without expensive additional software.

Electrical Data

Display 21.5 inch TFT colour LCD (LED backlight)
Resolution 1920 x 1080 px
Touch capacitive 10 finger multi-touch
CPU N2930 Celeron Quad Core
Memory DDR3L-1133, 8GB
Hard disk 120 GB SSD-HDD
USB Port 1x USB 3.0 Back, 2x USB 2.0 Back
Lan Port 1x RJ45 LAN Gigabit
Audio 1x Line-Out-Port
Video Port 1x DVI-I
Power supply 24V DC (included)
Operating system Windows 10 IoT Enterprise 2016
Ambient temperature in operation 0° to 35°

Design, Dimensions, Weight

Design back side stainless steel housing, front side continuous 3mm ESG glass
Diagonal 21.5"
Dimension LxWxH 564x355x47mm
Weight 7,5kg

Ordering Data and Conformity

Type designation Major 215 black AP
Article no. DL164121
Make HomeCockpit
Conformity CE

Software


Interfaces

  • 1x USB 3.0 Back, 2x USB 2.0 Back
  • 1x RJ45 LAN Gigabit
  • 1x Line-Out-Port
  • 1x DVI-I

Major 215 AP schwarz

Article no.: DL123201
