Touch control panel 5" with glass front for mounting on a switch box.
kostenlose Anfrage / free request
from 1 € 0.00 € 0.00 Incl. 0.00% VAT

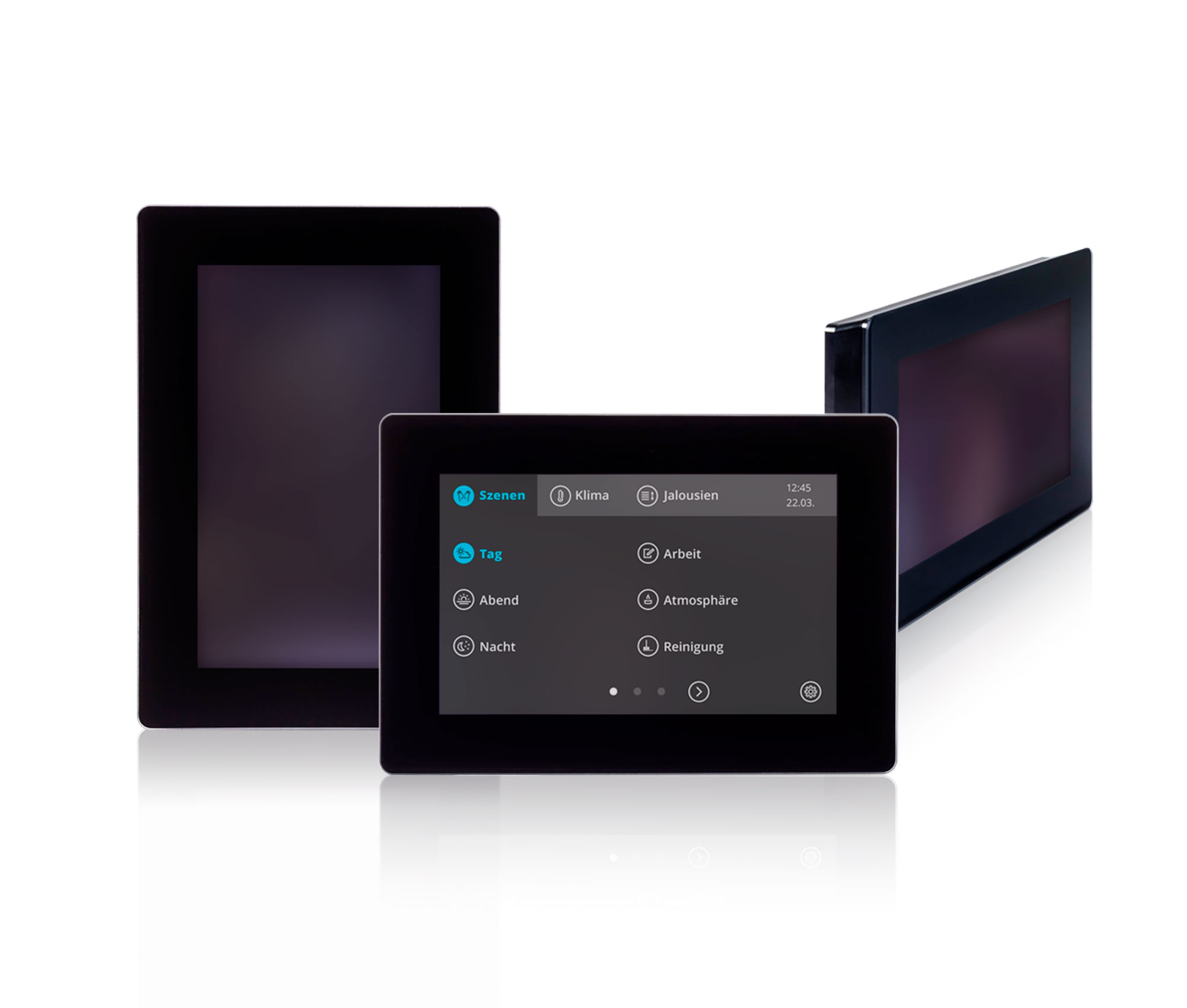

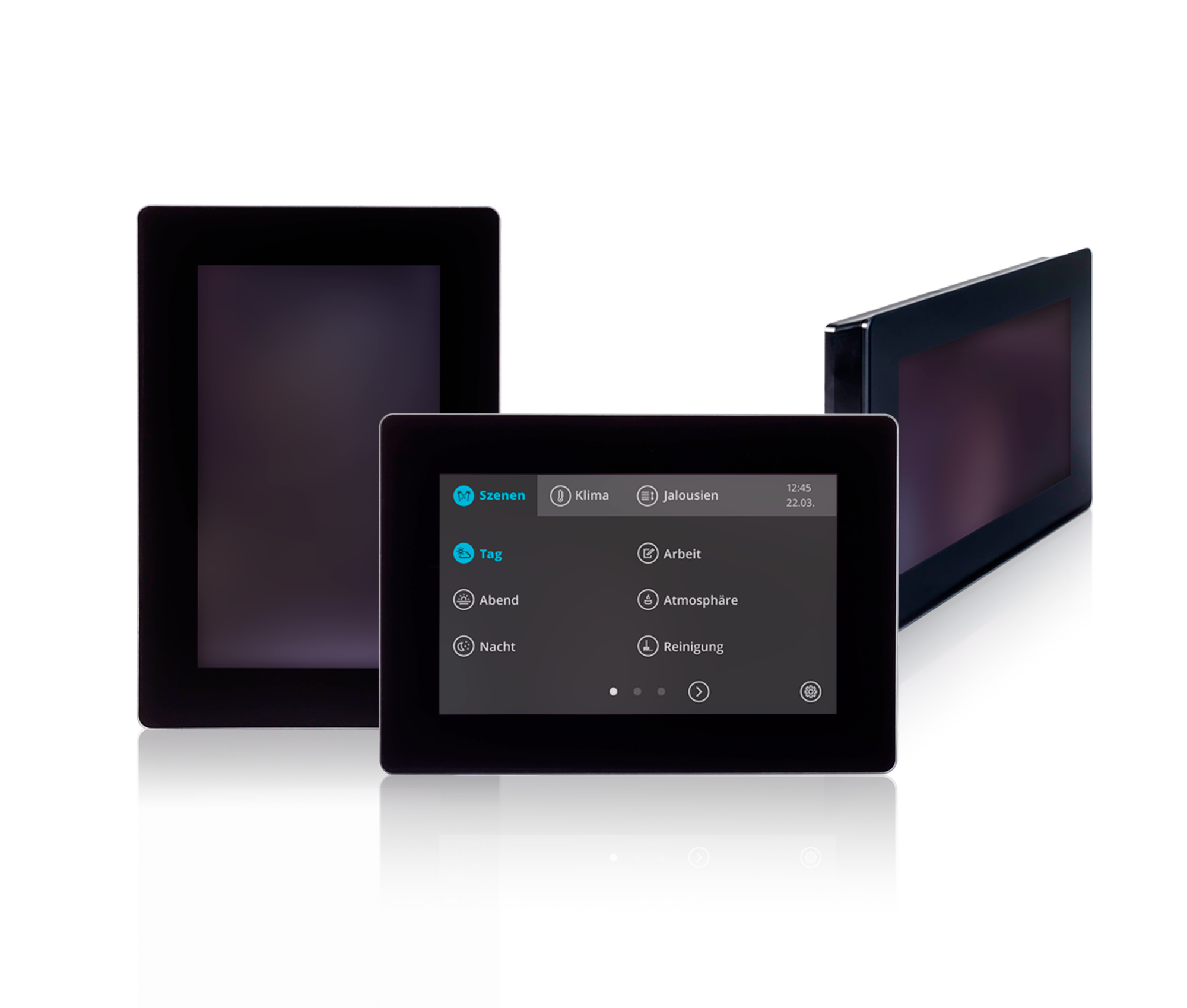

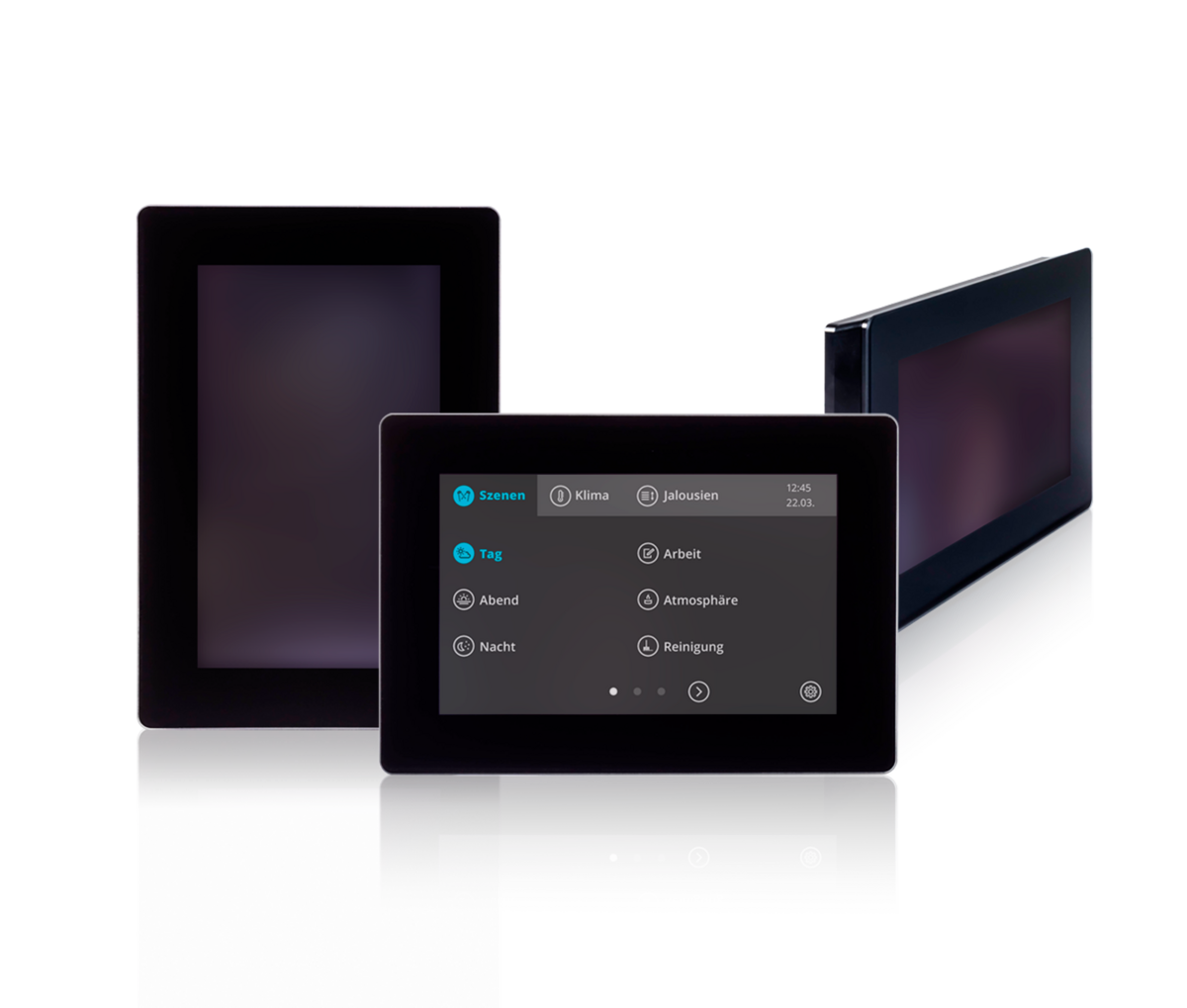

Multifunctional touch control panel with full-surface reflection-minimised glass front for mounting on a flush-mounted switch box. The glass front of the display is extremely stable and made for the toughest applications. The capacitive multi-touch is easy to use and is connected directly to the BUS, eliminating the need for network infrastructure.
The ISYGLT Wall-Touch glass panels WT-G were developed as operating, control and adjustment panels for direct operation on the ISYGLT-BUS.
Particular emphasis was placed here on extremely high availability, fastest operational readiness, reliability and interference immunity.
The panels are equipped with a special real-time operating system, which enables the system to be operated at the latest 2-3 seconds after switching on the voltage. The panels are also absolutely insensitive to inadvertent (as often as required) disconnection/interruption of the voltage. This is common in the construction industry, especially during installation work, and is often a problem for PC-based systems. An IP network structure is therefore not necessary here.
The operating voltage is supplied via the ISYGLT-typical 4-pole BUS cable with the 24V carried in it and communication in the RS-485 industry standard. The address is set via the touch interface.
The design of the WT-G was deliberately kept discreet in order not to disturb the architectural effect of the room. Nevertheless, it blends into the environment as a high-quality glass panel and is also harmonious with most switch ranges. Versions are available: 5" in black and white and 7" with black glass front as flush-mounted version or as surface-mounted version with brushed stainless steel design cover panels (other colours and versions of the panels available on request).
Images can also be displayed using the screen saver function. Thus, the panel is also a beautiful picture frame when no operation is required.
The design of pages and functions is very easy with the ISYGLT TouchDesigner. We have developed many standardised interfaces, which allow programming to be carried out quickly and cost-effectively. The intuitive operating concept is based on our more than 20 years of experience with touch panels in control technology. Of course, completely individual pages with individually designed designs can also be developed with the TouchDesigner. The data is transferred to the panel via a micro SD card.

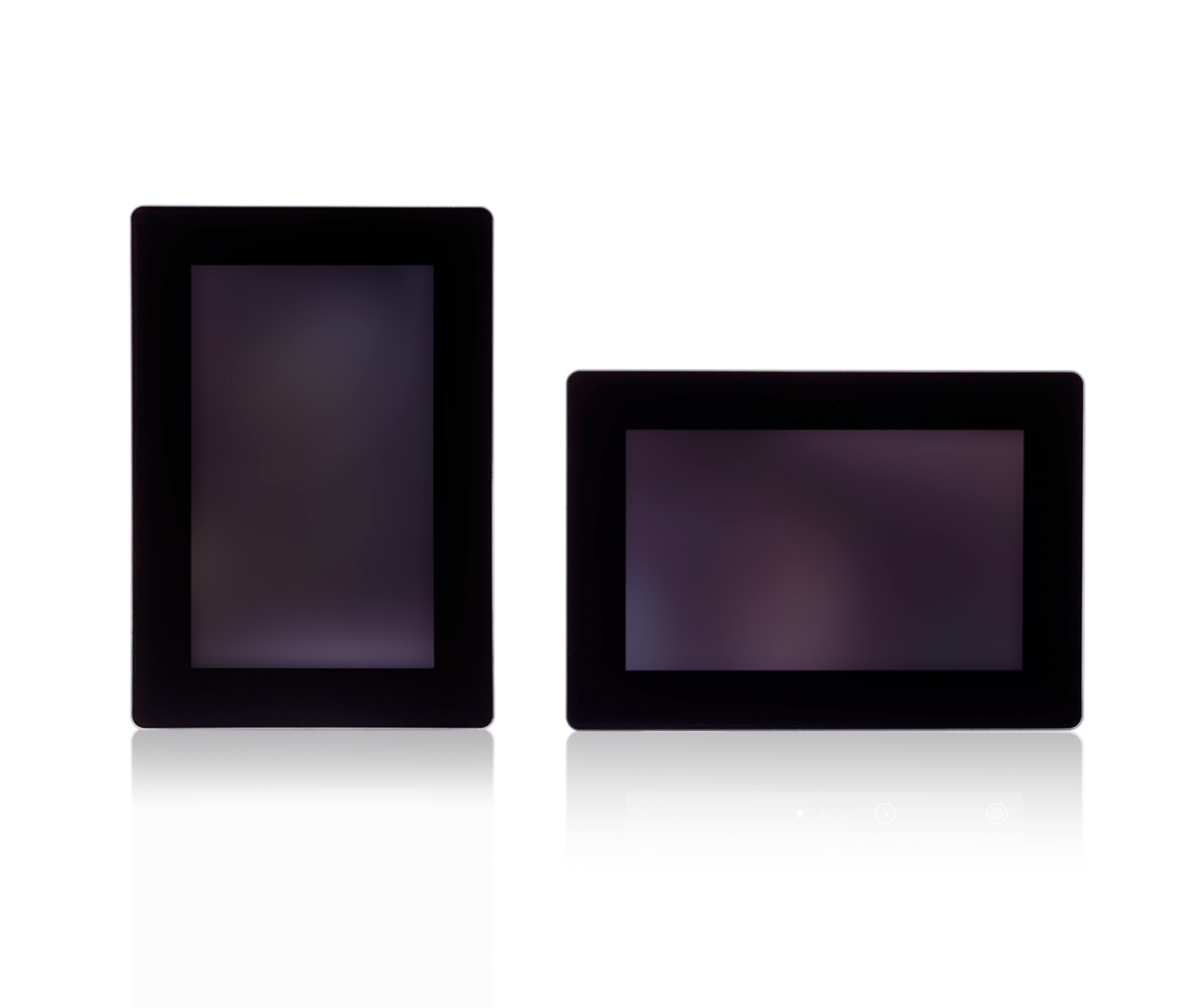

The panels can be used upright and horizontally. In order to get an optimal display even with flat viewing angles, the orientation of the panel can be adjusted individually. The reflection-minimized multitouch-capable display is therefore optimally suited for many areas of application.
The brightness of the display can be adapted to local conditions and can also be intelligently controlled by external sensors or commands.
An acoustic signal generator for messages or alarms with adjustable frequency is integrated.
Another special feature is the "D-O-T-Switch" function (Display-off-Touch-Switch). This allows the panel to be activated with a key function when the display is switched off. At the same time a command is sent, e.g. to switch on the light in the room. So you can switch on the light with your elbow, if you don't have a free hand, like you are used to with normal switches.
|Operating voltage||16V-27V DC|
|Current consumption||max. 121mA, normal 116mA, standby 60mA (at 24V DC)|
|Brightness||TFT display adjustable via integrated light sensor|
|Programming||ProgramDesigner and TouchDesigner|
|Slot||micro-SD for programming and data backup|
|Connection||plug-in terminal 4-pole, Phoenix PTSM0.5/4-PI-2.5 for wires rigid 0.25-0.8mm, flexible 0.2-0.5mm², AWG 42-20;|
|Humidity||0...85 % r. h. non-condensing|
|Design||wall mounting on standard switch box|
|Dimensions||HxWxD: 141,3mm x 98,3mm x 18,2mm (+plug in socket approx. 20mm)|
The BUS address is set for the Wall-Touch glass WT-G in the menu of the touch surface. How to get to the settings dialog depends on where the programmer created the link.
The panels can be used in upright and horizontally format. This is defined in the project settings. Due to the technology, the displays have a viewing direction in which the polarization causes a somewhat poorer detection from flat angles. To avoid this, the display can be rotated by 180°; the panel can also be installed simply rotated. For this there is a dialog where the optimal side for flat/side viewing is displayed by a green line.
