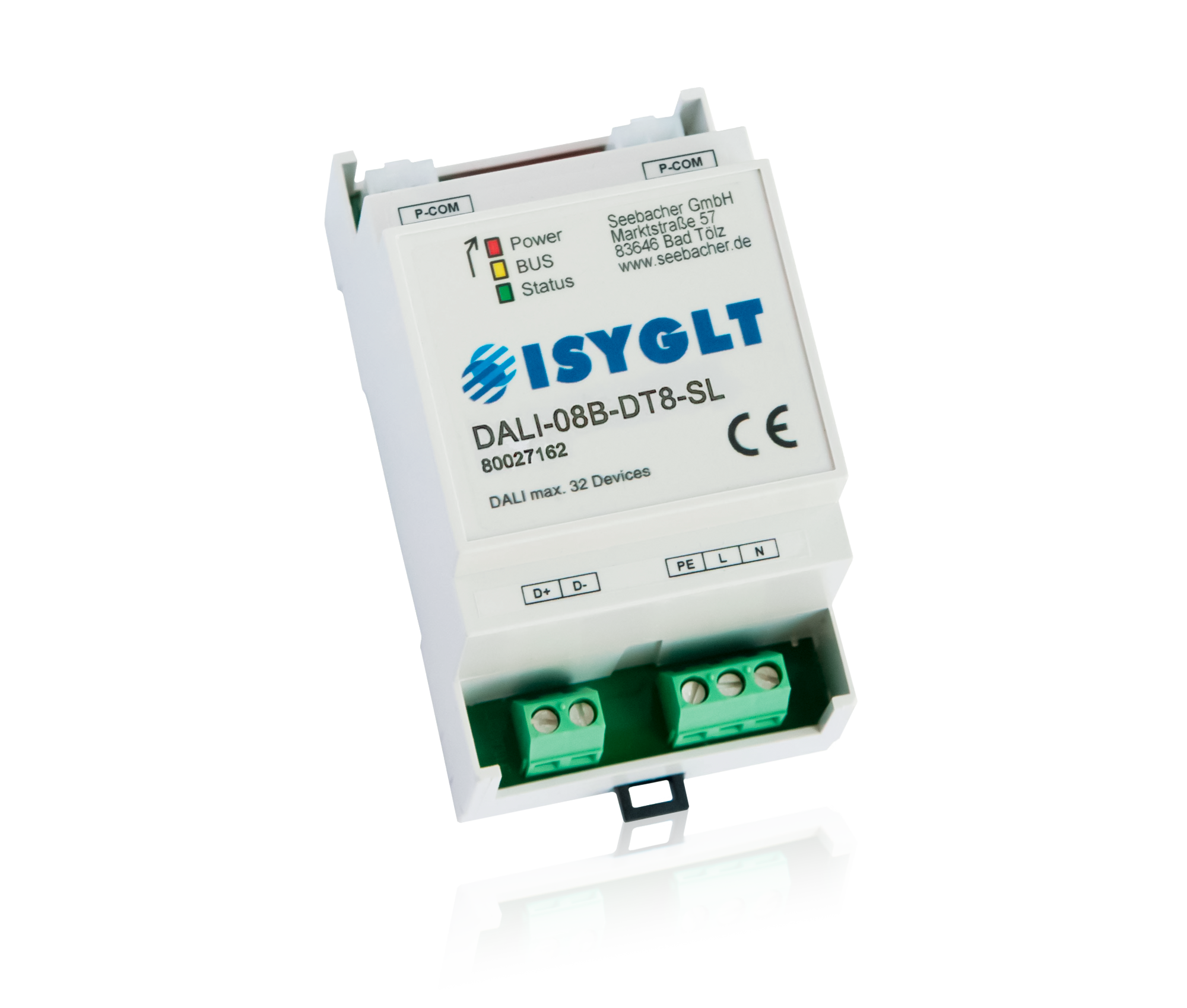

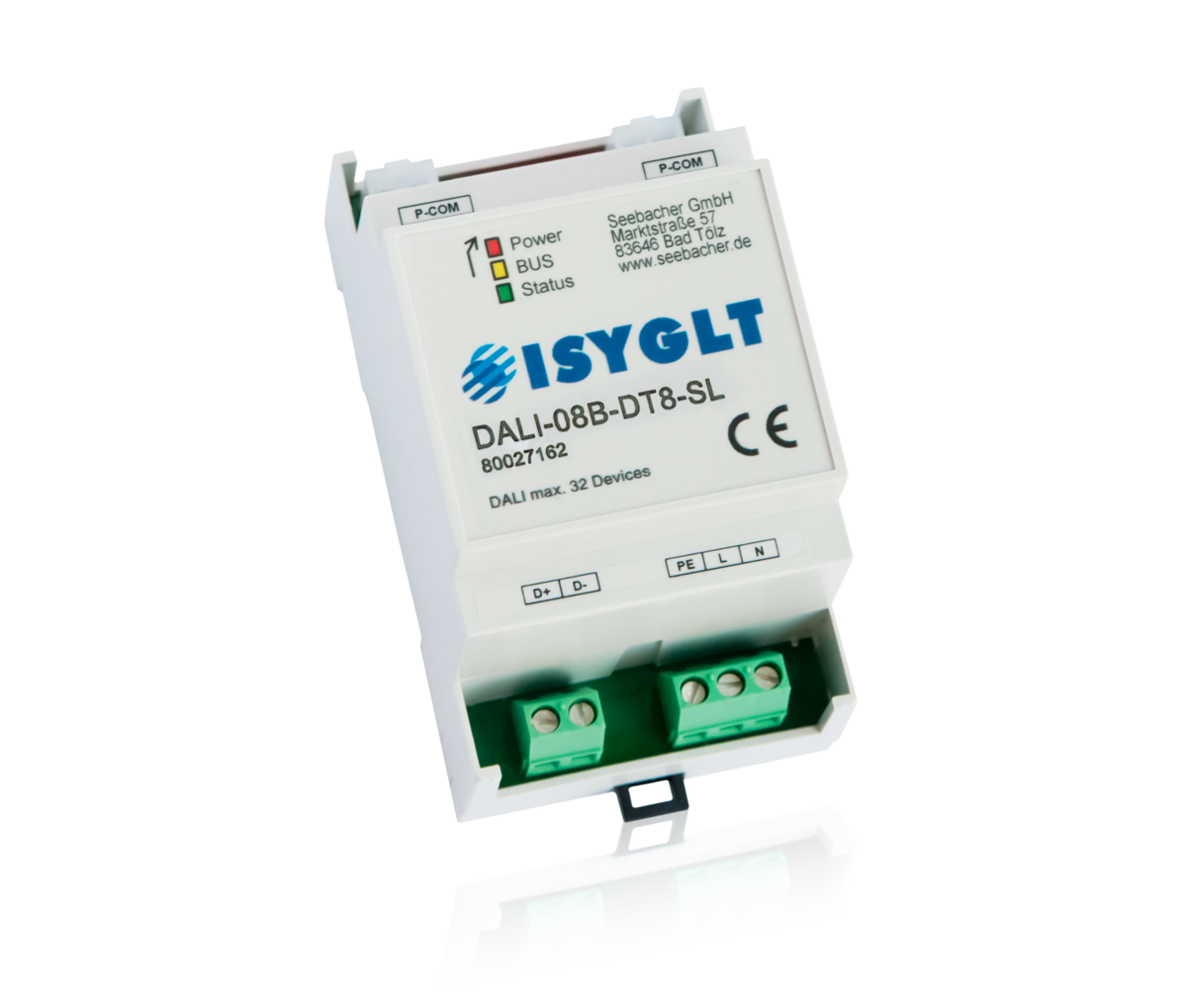

The DALI-08B-DT8-SL Module (Slim-Line) is an ISYGLT DALI Gateway with integrated DALI power supply and designed for space-saving installation in control cabinets. This module is particularly suitable for systems with many DALI groups or single circuit control.
Up to 32 DALI ECGs (DALI standard loads) can be operated on one DALI BUS. Each of these 32 DALI devices (electronic ballasts or electronic transformers) must be programmed with a unique device address (DALI short address). Each device address can be assigned one of 8 ISYGLT dimming groups in up to 3 configurations (setups) by parameterising the DALI-08B-DT8-SL Module. These dimming groups have all the features possible in the ISYGLT system in terms of scene storage, fade time calculations, etc.
The module is equipped with its own power supply, which is designed for 32 DALI standard loads. This allows a freely configurable emergency function for the corresponding DALI BUS. All DALI output devices are completely integrated into the possibilities of the ISYGLT system through our concept. Thus, the functional scope of the ISYGLT system is available.
The module occupies 4 module addresses on the BUS.
The DALI devices are monitored for lamp faults or ECG faults. The DALI-Failure-Level (value in case of DALI BUS failure) can be parameterised via the DALI-08B-DT8-SL.
Maintenance intervals can be easily calculated using operating hours counters.
According to the standard, the DALI ECGs always remain energized, which ultimately leads to unnecessary energy consumption when switched off. A main contactor for the DALI ECGs can be controlled via a virtual output. If the mains voltage is simply switched on or off, operating devices may no longer operate correctly, as protocols can already be sent during the startup phase. This effect is avoided by our new circuit logic.
The following functions are available for commissioning and operating the devices:
- DALI broadcast for commissioning and emergency operation
- Automatic addressing of new ECGs during exchange work
- ECG addressing and checking in conjunction with the IP Master and the DALI Web Plugin
The following functions can be performed independently by the DALI Module:
- Calculation of increases with time constants from 0.5 seconds to 18 hours
- Independent regulation of instantaneous analog ACTUAL values to preset analog SETPOINT values at a preset speed (optional in preset time)
- Feedback of the termination of the analog value output after the execution of time functions
- Stop function during the execution of time functions
- OVERSAMPLING error correction. With the so-called "OVERSAMPLING", the DALI Module automatically corrects the jumps in the analog values caused by the cycle times of the BUS system. For this purpose, the analog values between the BUS cycles are transformed back into the resolution of 8 bits by linearization.
- Execution of blinking functions
Electrical Data
Mains supply | 230V / 50-60 Hz |
Current consumption | 15mA |
Insulation voltage | 3500V (ISYGLT, DALI / mains) |
Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
Connection | screw terminals 1.5mm² |
Operating temperature | -10°C to +50°C |
Storage temperature | -25°C to +70 °C |
Humidity | 0-85 % r. h. non-condensing |
Protection class | IP 30 |


Special function DIP switches 1 and 2
DIP | Setting |
---|---|
S1 OFF | Normal operation |
S1 ON | Device works with DALI only as power supply unit (from version 1.01) i.e. no DALI commands are sent; necessary e.g. for addressing by external Systems. |
S1+S2 ON | Module operates in DALI broadcast operation. The module sends a low dimming value to the lamps to test the DALI function if no devices have yet been addressed. |
Function Indicators (LEDs on the Module)
LED | Designation | State | Meaning |
---|---|---|---|
1x red | Power | Off | No operating voltage |
On | Operating voltage, no error | ||
1x yellow | BUS | Off | BUS wiring error |
On | Error BUS communication (address) | ||
blinking | Interference-free data transmission via the BUS line | ||
1x green | State | blinking 1 Hz | No parameter data in the module |
On | Module works only as DALI power supply (DIP switch S1 = ON) | ||
blinking 2 Hz | Module works in DALI broadcast operation, sending a low fixed value for test purposes (DIP switch S1+S2 = ON) |
Parameterization with ProgramDesigner
In the ISYGLT ProgramDesigner there are various parameterisation possibilities:
- Grouping of the individual ECGs
- 3 configurations can be stored
- Definition of the switch-on behaviour
- Crossfade times
- Emergency operation in case of BUS failure DALI and ISYGLT
The colour functions for the DALI Device Type 8 can be controlled in 4 basic functions. These modes are individually applicable for each group:
- Absolute colour temperature TC
- Colour coordinates XY by colour space
- Colour scene
- Relative colour temperature TC
