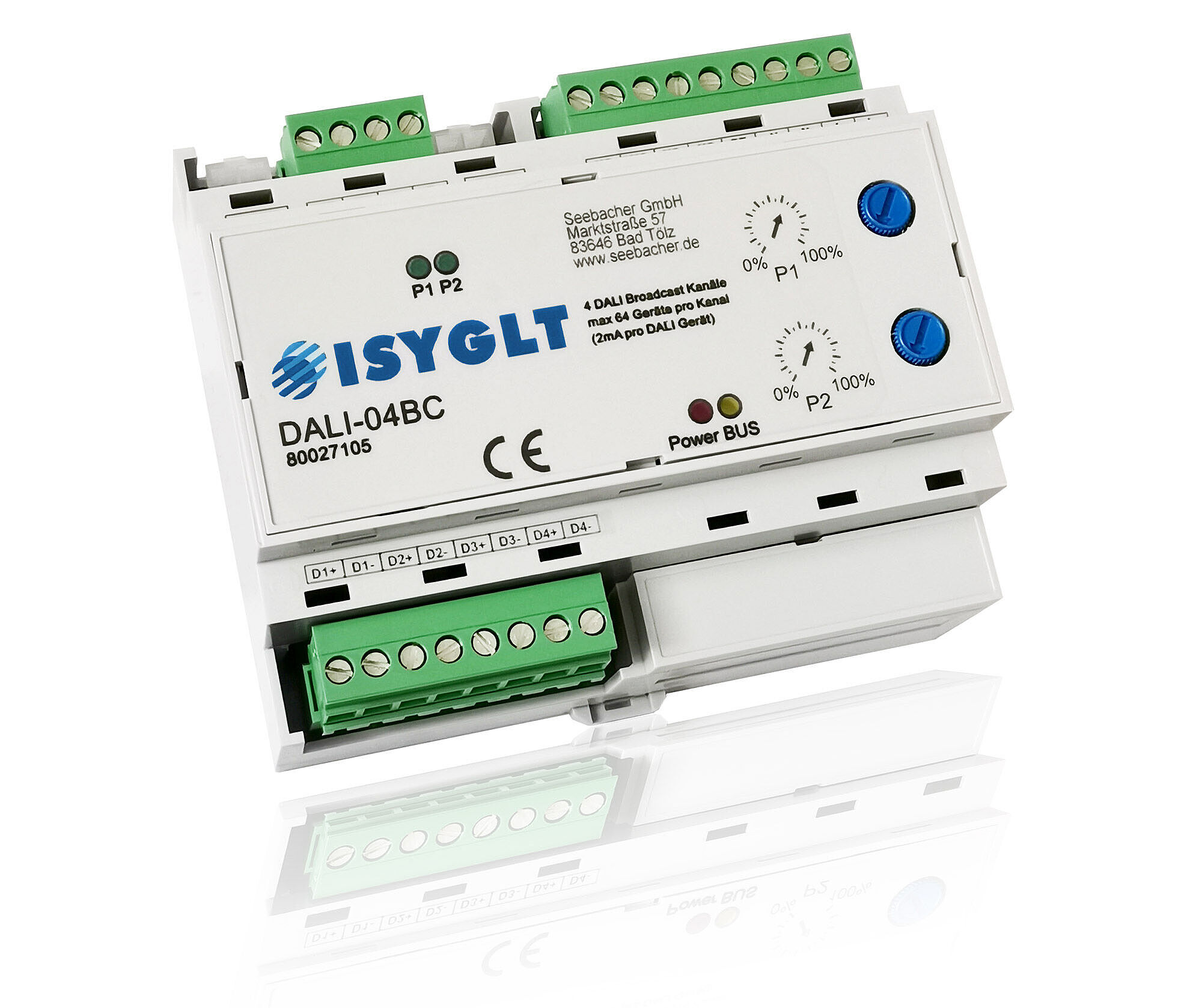

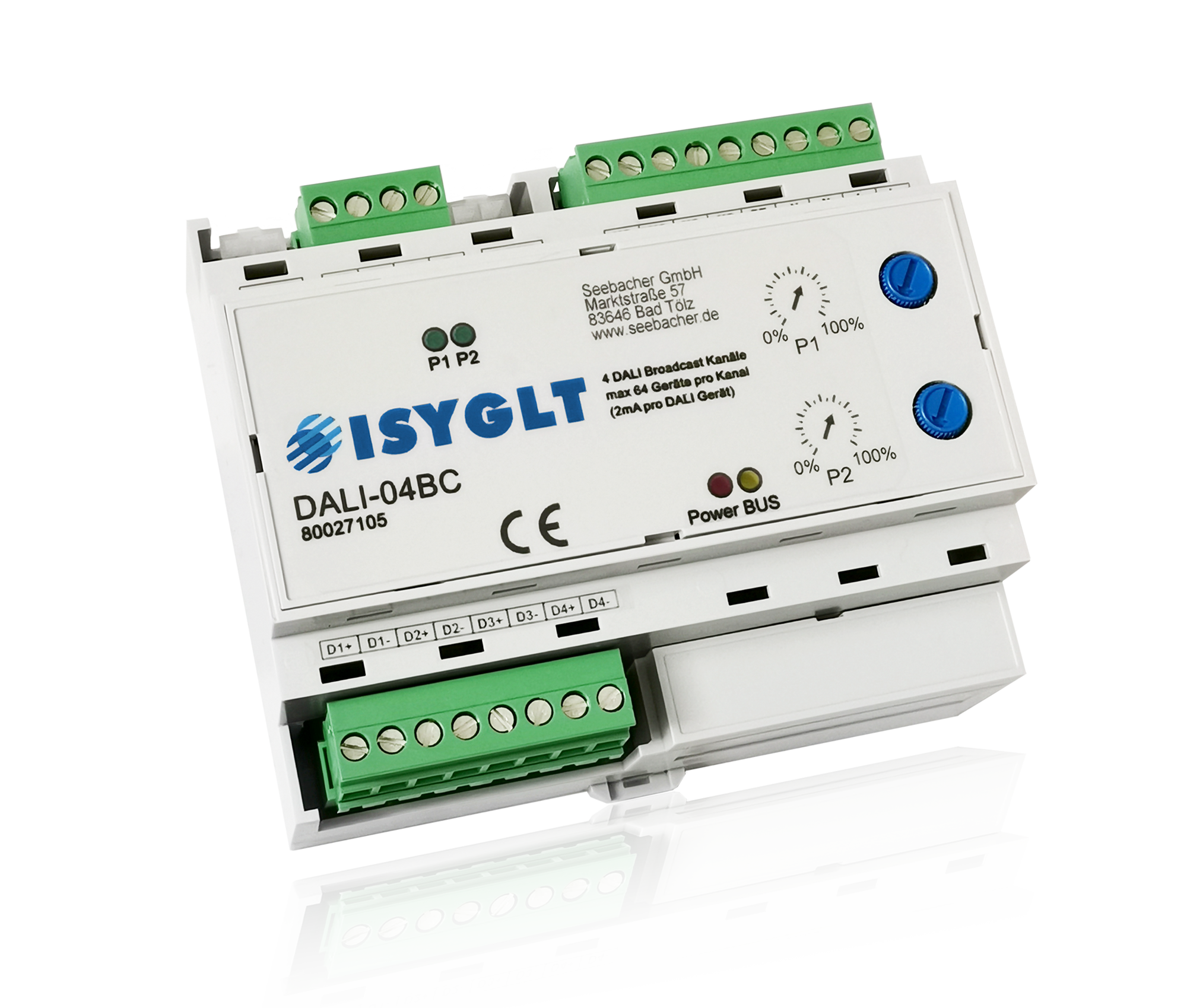

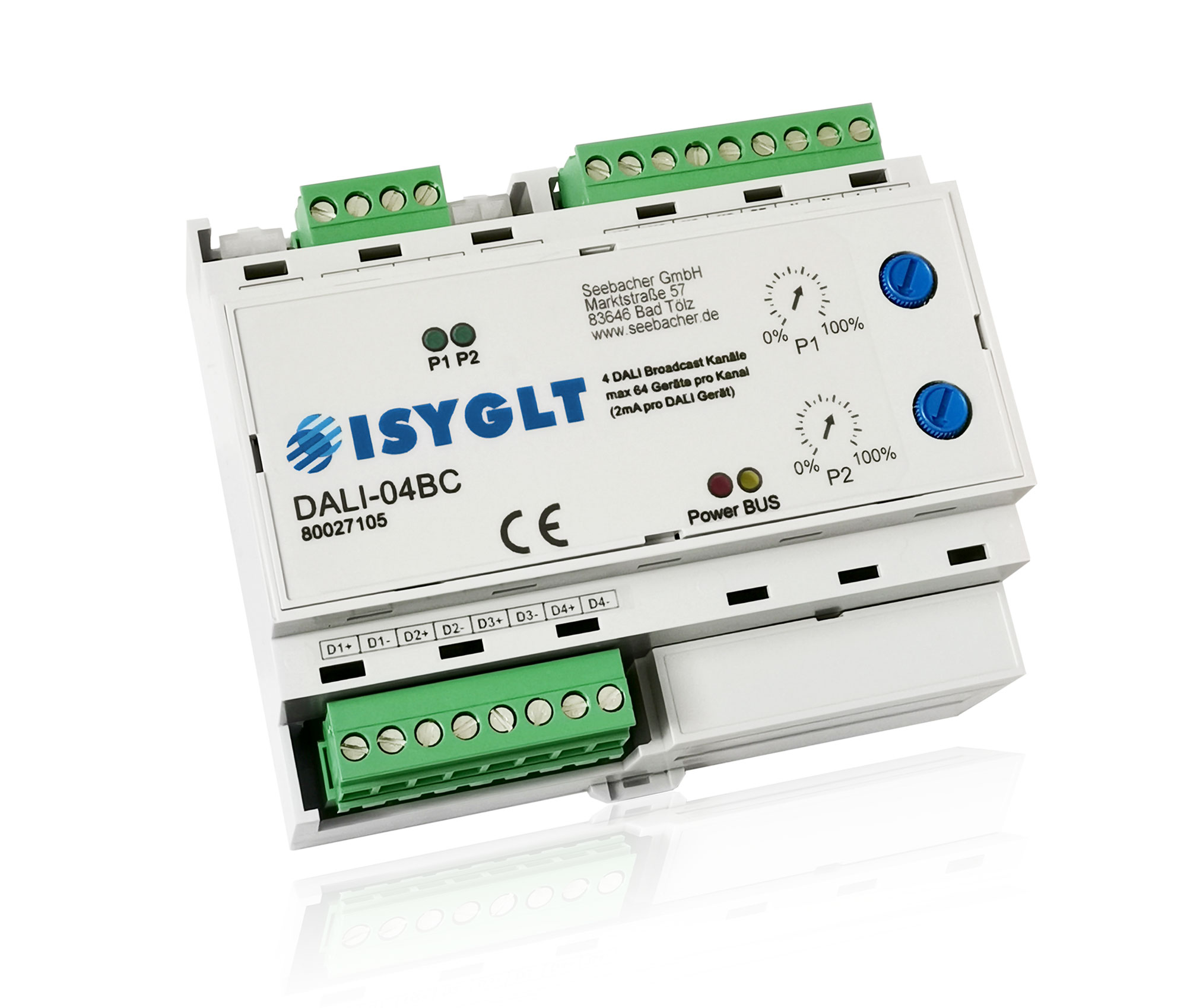

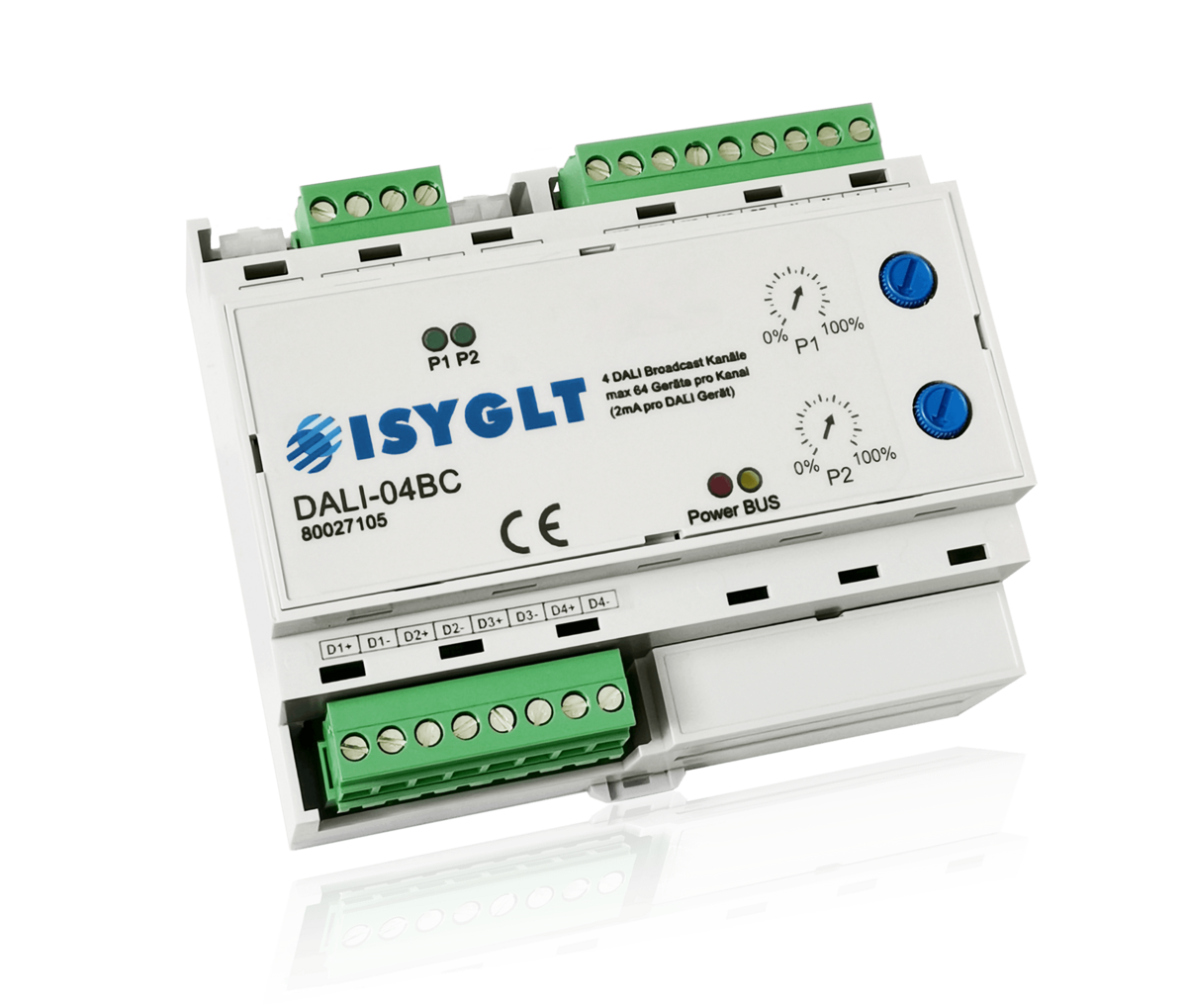

The DALI-04BC Module is used to control ECGs for fluorescent lamps and low voltage transformers that can communicate with the digital DALI signal. The module has 4 separate DALI interfaces. A maximum of 64 DALI standard loads (2mA) can be connected to one DALI channel.
All switching and dimming functions can be implemented digitally with the DALI signal. The module is equipped with its own mains supply. This allows a freely configurable emergency function for the 4 DALI outputs. The ProgramDesigner can be used to parameterize whether the 4 channels of the module should work in DALI (broadcast) or DSI operation.
The following functions can be performed independently by the DALI Module:
- Calculation of increases with time constants from 0.5 seconds to 18 hours
- Independent regulation of instantaneous analog ACTUAL values to preset analog SETPOINT values at a preset speed (optional in preset time)
- Feedback of the termination of the analog value output after the execution of time functions
- Stop function during the execution of time functions
- OVERSAMPLING error correction (With the so-called "OVERSAMPLING", the DALI Module automatically corrects the jumps in the analog values caused by the cycle times of the BUS system. For this purpose, the analog values between the BUS cycles are transformed back into the resolution of 8 bits by linearisation.)
- Execution of blinking functions
Electrical Data
| Mains supply | 230V / 50-60 Hz |
| Current consumption | 15mA |
| Output | 4 x DALI BUS, max. 64 devices each (standard loads 2mA per device) |
| Insulation voltage | 3500V (ISYGLT, DALI / mains) |
| Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
| Connection | screw terminals 1.5mm² pluggable |
| Operating temperature | -10...+50°C |
| Storage temperature | -25...+70 °C |
| Humidity | 0...85 % r. h. non-condensing |
| Protection type | IP 30 |
Function Indicators (LEDs on the Module)
| LED | Designation | State | Meaning |
|---|---|---|---|
| red | Power | Off | No operating voltage |
| On | Operating voltage, no error | ||
| yellow | BUS | Off | BUS wiring error |
| On | Error BUS communication (address) | ||
| blinking | Interference-free data transmission via the BUS line | ||
| 2x green | P1 / P2 | blinking in alternation | No parameter data in the module |
| P1 On | Potentiometer 1 is active | ||
| P2 On | Potentiometer 2 is active |
