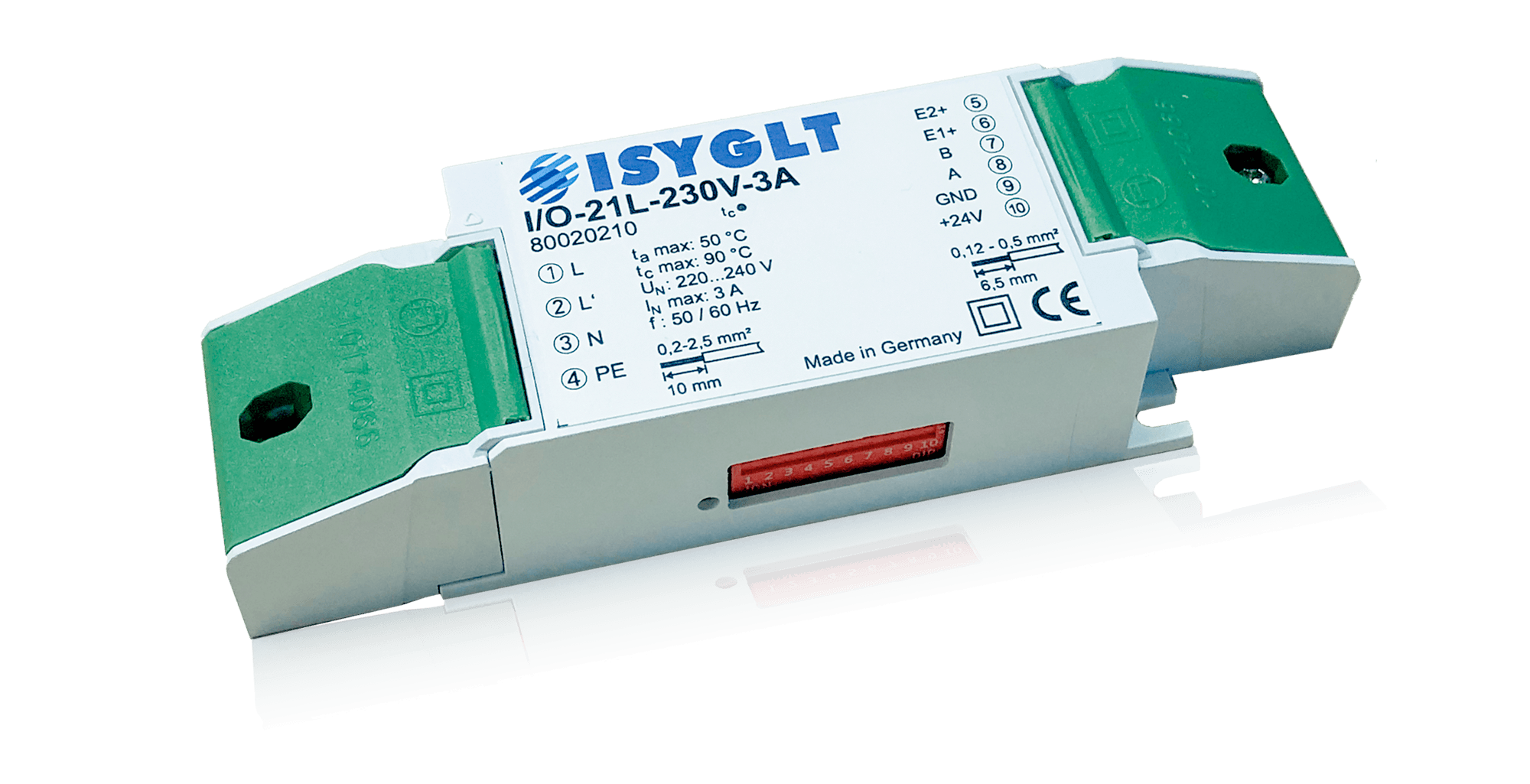

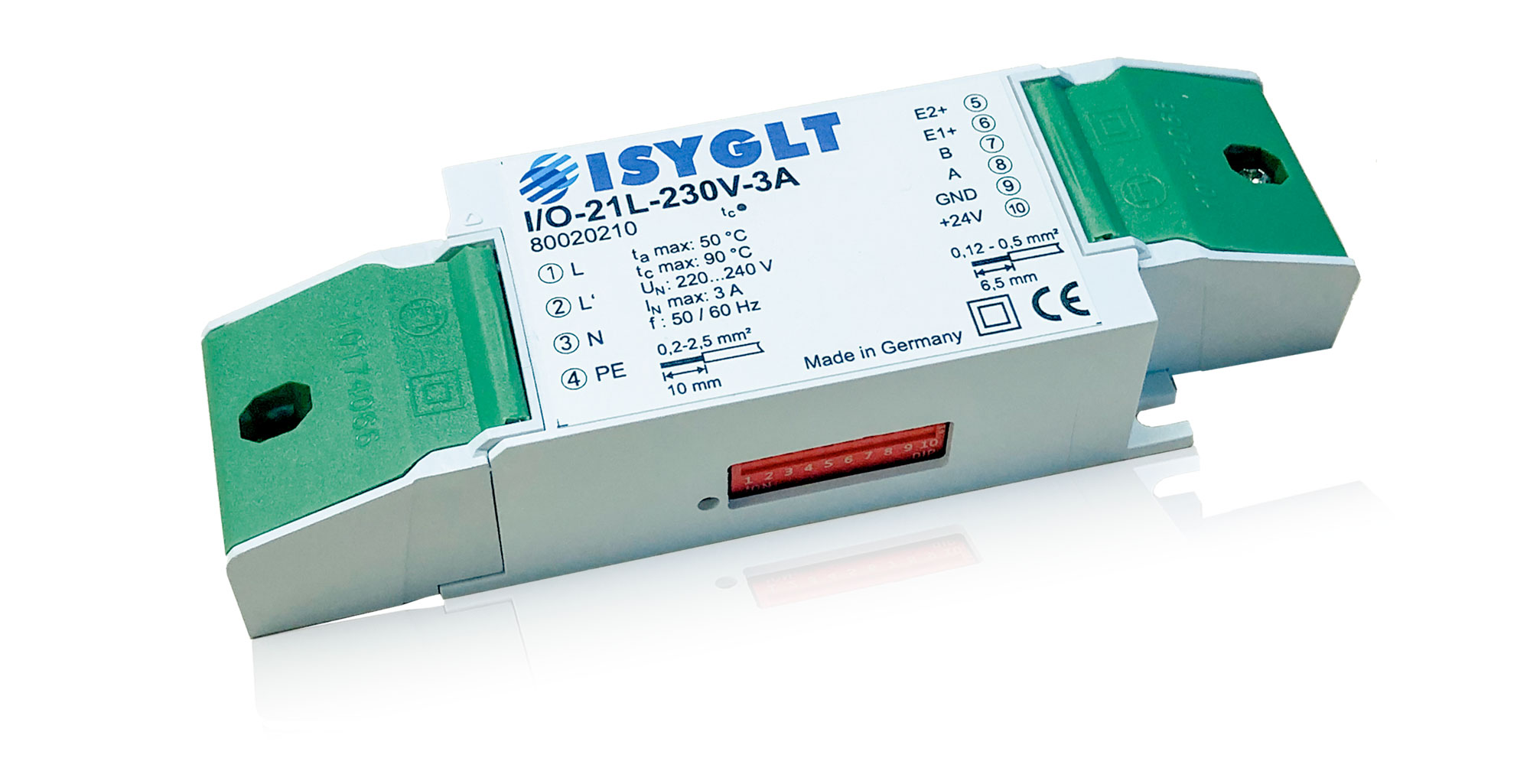

I/O Module I/O-21L-230V-3A

I/O Module with 2 binary inputs and 1 triac output for 1 circuit.

Quick Facts

  • 2 binary inputs 24V DC
  • 1 Triac output 230V/3A (700W) "zero crossing circuit"

The Installation Device is a module that has been specially designed for direct installation in lamps in terms of housing and technical data. With the triac output 1 lighting circuit, or heating circuit can be switched. The inputs can be queried via the subnet.

Electrical Data

Operating voltage 15V to 30V DC, Triac output 230V AC
Current consumption max. 15mA at 24V
Inputs 2x 24V DC, input current per input 5mA at 24V
Outputs 1x triac 230V AC 3A (700W),"zero crossing circuit"
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Connection 230V Push-in connection 2x 0,2 - 2.5mm²
Connection BUS Push-in connection 2x 0.12 - 0.5mm²
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0...85 % r.h. non-condensing
Protection in not installed state IP20

Design, Dimensions, Weight

Design plastic housing for installation in lamps
Dimensions LxWxH 143 (97) x 43 x 30 mm
Weight 90g

Ordering Data and Conformity

Type designation I/O-21L-230V-3A
Article no. 80020210
Conformity CE

Tender Documents

Instruction Manuals

Technical Drawings

Wiring Diagrams

DIP switches

10-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the side of the module. DIP switch 1 - 3 are not addressed at this module and remain OFF. DIP switches 4 to 10 are used for the ISYGLT address.

Function Indicators (LEDs on the Module)

yellowBUSOffError BUS - no activity
OnISYGLT-BUS signal detected, but no valid address
blinkingInterference-free data transmission via the BUS line

Pin Assignment

Spring type terminals

+24V Operating voltage
GND Operating voltage
A Subnet (BUS A, RS-485)
B Subnet (BUS B, RS-485)
E1+ Input 1
E2+ Input 2

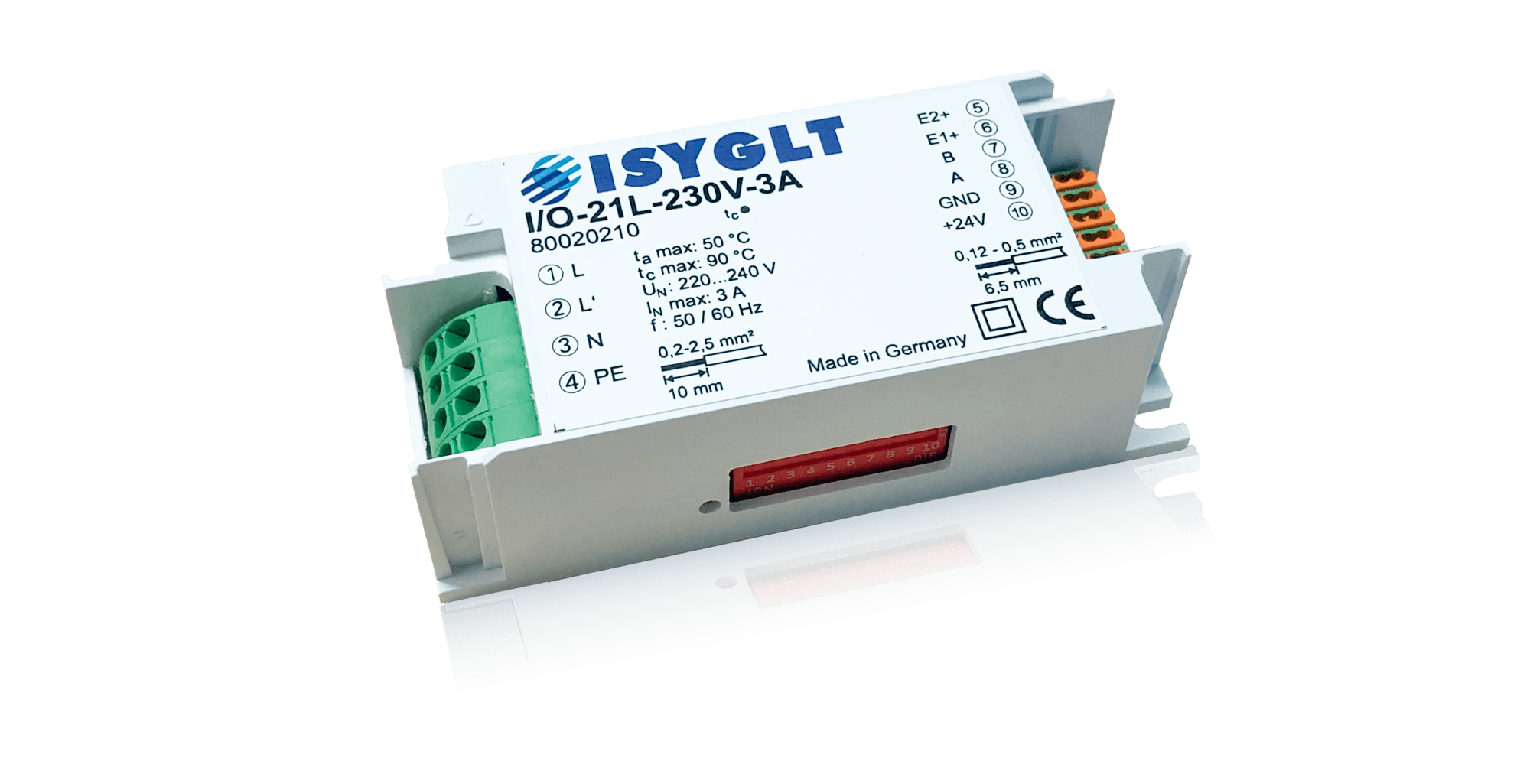

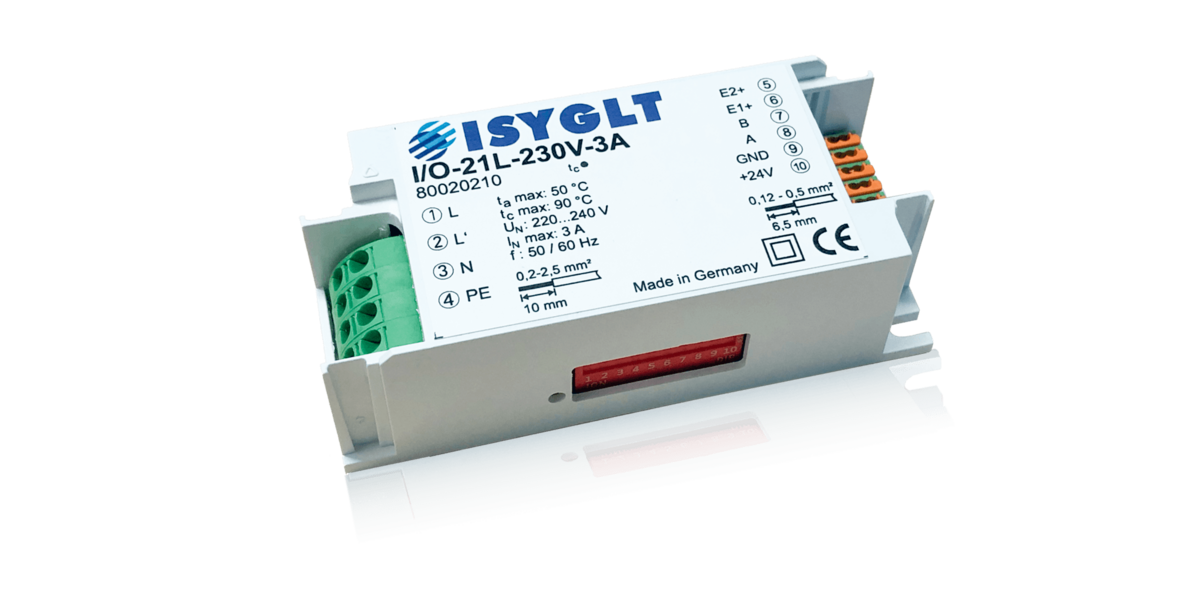

Screw terminals

L Mains voltage 230V
L' Switching output
N Neutral conductor
PE Protective conductor
