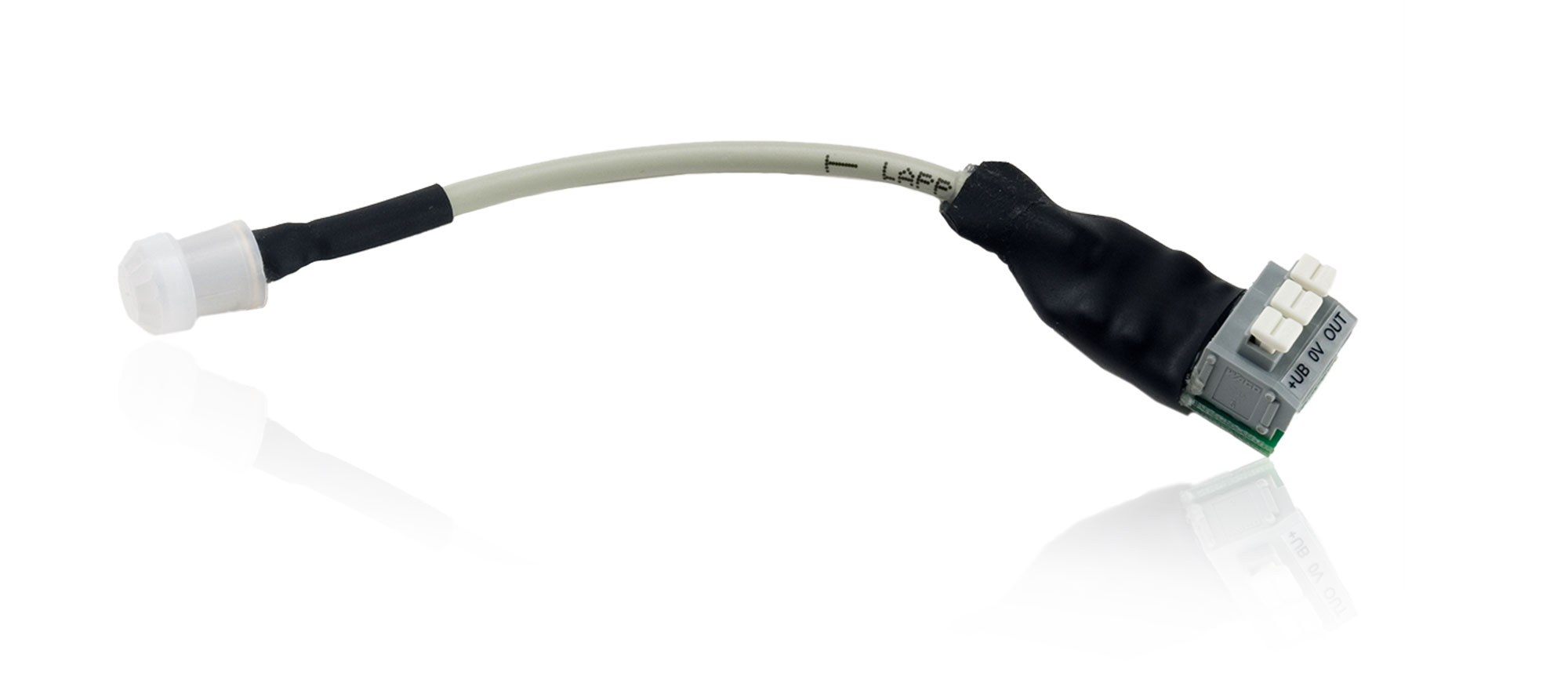

Mini Motion Sensor BW-02

The Mini Motion Sensor detects even the smallest movements and is suitable for many applications with motion or presence detection with a range between 0.5m and 5m. The BW-02 requires 24V and has an output which outputs the motion pulses. Optimum function is guaranteed by the connection to a binary input of an I/O Module.

Quick Facts

  • Range max. 5m
  • For mounting height 2.5m optimised
  • Detection angle oval 92°x92°
  • Highly sensitive PIR sensor
  • Miniature design

The ISYGLT BW-02 Motion Sensor is based on passive infrared monitoring technology. The very small round lens monitors 36 zones radiatingly. The range of 2.5m in the radius and the detection angle of 92° are guaranteed. Due to the integrated line amplifier, the length of the control line up to the I/O Module or 24V power component can be up to 100m. Due to its small size, the Motion Sensor can be easily integrated into devices or luminaires. The sensor can be supplied in many different versions (e.g. surface-mounted, flush-mounted, recessed in ceiling,...).

Electrical Data

Operating voltage 12V to 30V DC
Current consumption max. 10mA without load
Output Vin -1.5V, 200mA short-circuit proof PNP, max. 100m cable length to input module
Connection spring type terminal 3-pole 2x 0.25 - 0.75 mm² each
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design (sensor only, loose) white plastic lens for gluing into devices or lamps
Dimensions (sensor only) DxH 12x15mm + 125mm cable
Weight (sensor only) 11g

Ordering Data and Conformity

Type designation BW-02 (only sensor, loose)
Article no. 80087152
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Information on the detection range


Pin Assignment

3-pole connection

Ub Operating voltage +24V DC
0V Operating voltage 0V DC
OUT Switching output (pulses +24V DC)

To top

Additional Equipment

  • 80085032 ISYGLT - LSR ball protection basket for sensor protection

Variants

Type designation Article no. Description
BW-02-UP 80087153 For mounting in flush-mounted box; supplied in switch range
BW-02-SA 80087154 For wall mounting in flush-mounted box e.g. above doors for optimised detection
BW-02-LP 80087155 Smart Mini Sensor for discreet installation in suspended ceiling
BW-02-LP-K4M 80087156 Like BW-02-LP, but with 4m connection cable
BW-02-LP-K5M 80087157 Like BW-02-LP, but with 5m connection cable
