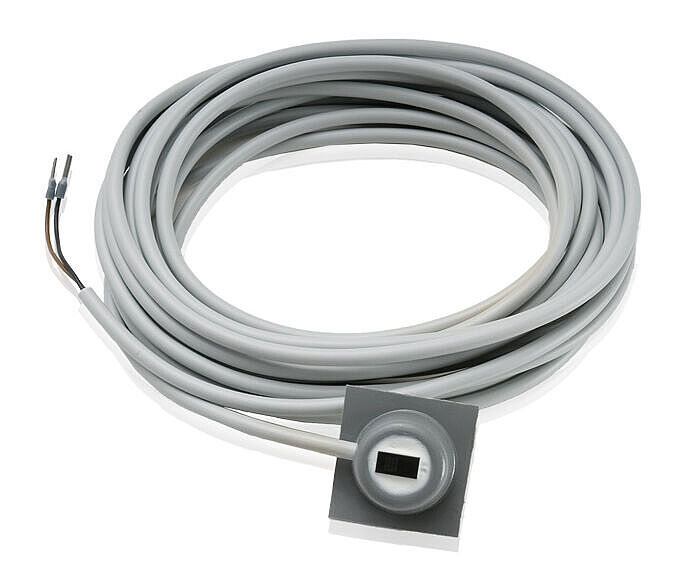

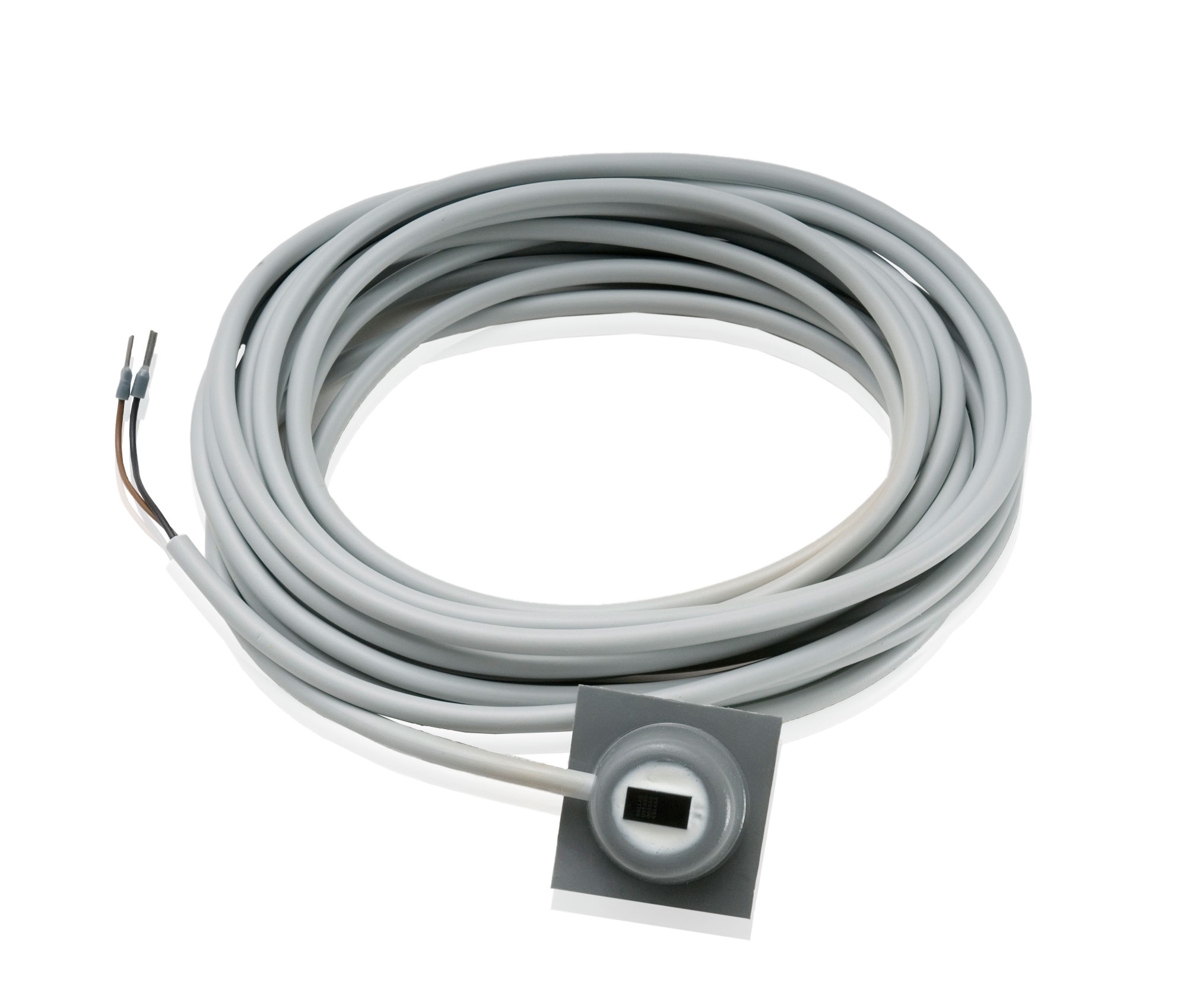

Temperature Sensor TF-A

The Temperature Sensor TF-A is designed for connection to the ISYGLT modules TEMP-02U or ER-04U.

Quick Facts

  • -55°C to +105°C
  • Cable 2m or 20m
  • Temperature monitoring
  • Room temperature measurement

The Temperature Sensor TF-A is designed for connection to the ISYGLT modules TEMP-02U or ER-04U. The delivery is as a contact sensor. The measuring range of the sensor is from -55°C to +105°C.

The Temperature Sensor can be mounted as required.

Electrical Data

Cable length 2m / 20m heat resistant
Measuring range -55 to +105°C
Measuring element semiconductor sensor calibrated ± 0.5K
Precision ± 0,5 °C in the range -15°C to +105°C
± 2°C in the range -55°C to -15°C
Operating temperature -55...+125°C
Storage temperature -55...+125°C
Protection class IP 65

Design, Dimensions, Weight

Design surface mounting version
Dimensions diameter: 20mm for gluing on
Weight approx. 10 g (without connection cable)

Ordering Data and Conformity

Type designation TF-A / TF-A-20m
Article no. 80081101 / 80081102
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Alignment

There is a mark with an entered value on the cable of the sensor. This can be in the range from -7 to +7. This correction value is determined during production of the sensors and indicates the sensor deviation in 0.5K steps.
The Temperature Module TEMP-02U has 2 sensor inputs. With the SETTEMP command, these can be easily adjusted.

Example:

SETTEMP10 ;Address TEMP-02U
-3 ;Correction value sensor 1
+1 ; Correction value sensor 2

The sensor is showing too low:

DisplayActual valueErrorCorrection value
10,0°C10,5°C-0,5K+1
10,0°C12,0°C-2,0K+4
10,0°C13,5°C-3,5K+7

The sensor is showing too much:

DisplayActual valueErrorCorrection value
20,0°C18,5°C+1,5K-3
21,0°C18,0°C+3,0K-6
21,5°C18,0°C+3,5K-7

Pin Assignment

2-pole cable

Brown +sensor
Black GND sensor

To top

Variants

  • Surface mounting version cable 2m: TF-A (80081101)
  • Surface mounting version cable 20m: TF-A-20m (80081102)

To top

TF-A

Article no.: 80081101
