Small digital Combi Sensor for light, movement and presence. The Motion Sensor works with HF technology (high-frequency technology) and consists of 4 internal, separately adjustable sensor units. The 16-bit Light Sensor measures the visible spectrum (V-lambda) and is perfectly suited for exact daylight-dependent control.
The LS-05-HF-xx is a digital Light Sensor with HF Motion Sensor (HF = high-frequency) for indoor applications. The sensor is connected directly to the ISYGLT BUS. The Light Sensor supplies a 16 bit brightness value that can be calibrated. Daylight controls and switching thresholds can be implemented with this light value. The measured spectrum corresponds to the standardized V-lambda curve (λ).
The HF Motion Sensor is based on 4 internal, separately adjustable sensor units. The sensitivity as well as the minimum and maximum detection speed of each unit can be parameterized. Thus, individual adjustments to customer requirements and local conditions are possible. The direction of movement (towards or away from the sensor) of one of the sensor units can also be evaluated for control functions.
Electrical Data
| Operating voltage | 12V to 35V DC |
| Current consumption (24V) | at 24V DC max. 18mA |
| Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
| Measuring range illuminance | 0 to 4500 lx (depending on mounting) |
| HF sensor | SMR-313, frequency 24.150 to 24.250 GHz |
| Connection |
mini-plug Molex 51021-0400, 4-pole cable to RJ10 incl. terminal adapter |
| Delivery scope | sensor, 250mm connection cable, RJ10 adapter |
| Operating temperature ta | -20°C to +45°C |
| Storage temperature | -25°C to +70°C |
| Humidity | 0-90% r. h. non-condensing |
| Protection class | IP20 |
Address Setting
Due to its design, the sensor does not provide space for the usual DIP switch for address setting. At this sensor, the address is set via software parameterization with the ISYGLT ProgramDesigner.
Display and buttons at the sensor
| State | Meaning / Function | |
|---|---|---|
| LED red | slow flashing | Sensor has no address |
| fast flashing | Sensor is in programming mode | |
| Off | Sensor has a BUS address | |
| individual | In BUS operation, the LED is freely programmable, e.g. motion active. | |
| Button right | Activating the programming mode, actuation with a small screwdriver or plastic, e.g. small cable tie | |
| Button left | Deactivating the programming mode |

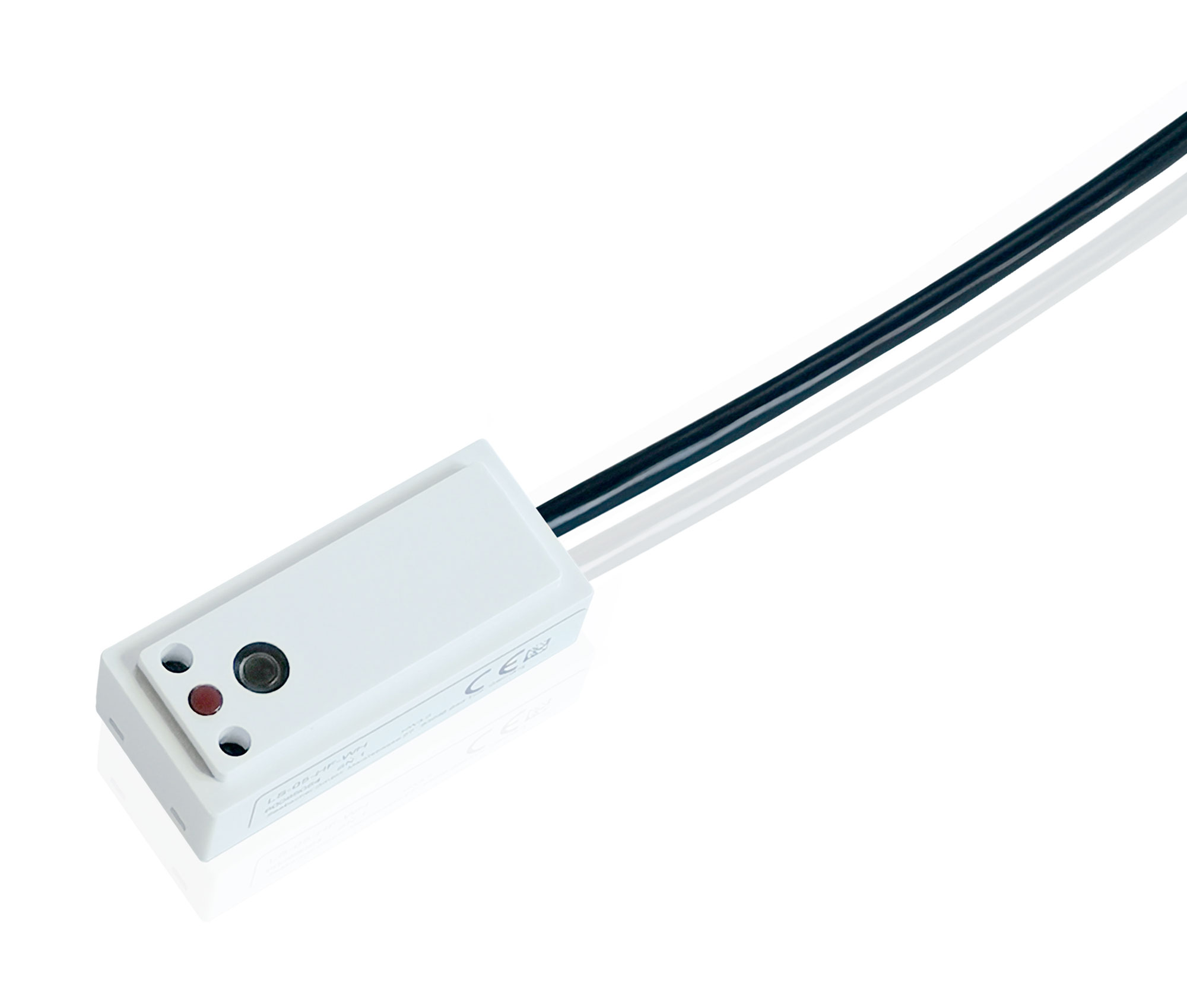

LS-05-HF-WH
Article no.: 80085064
