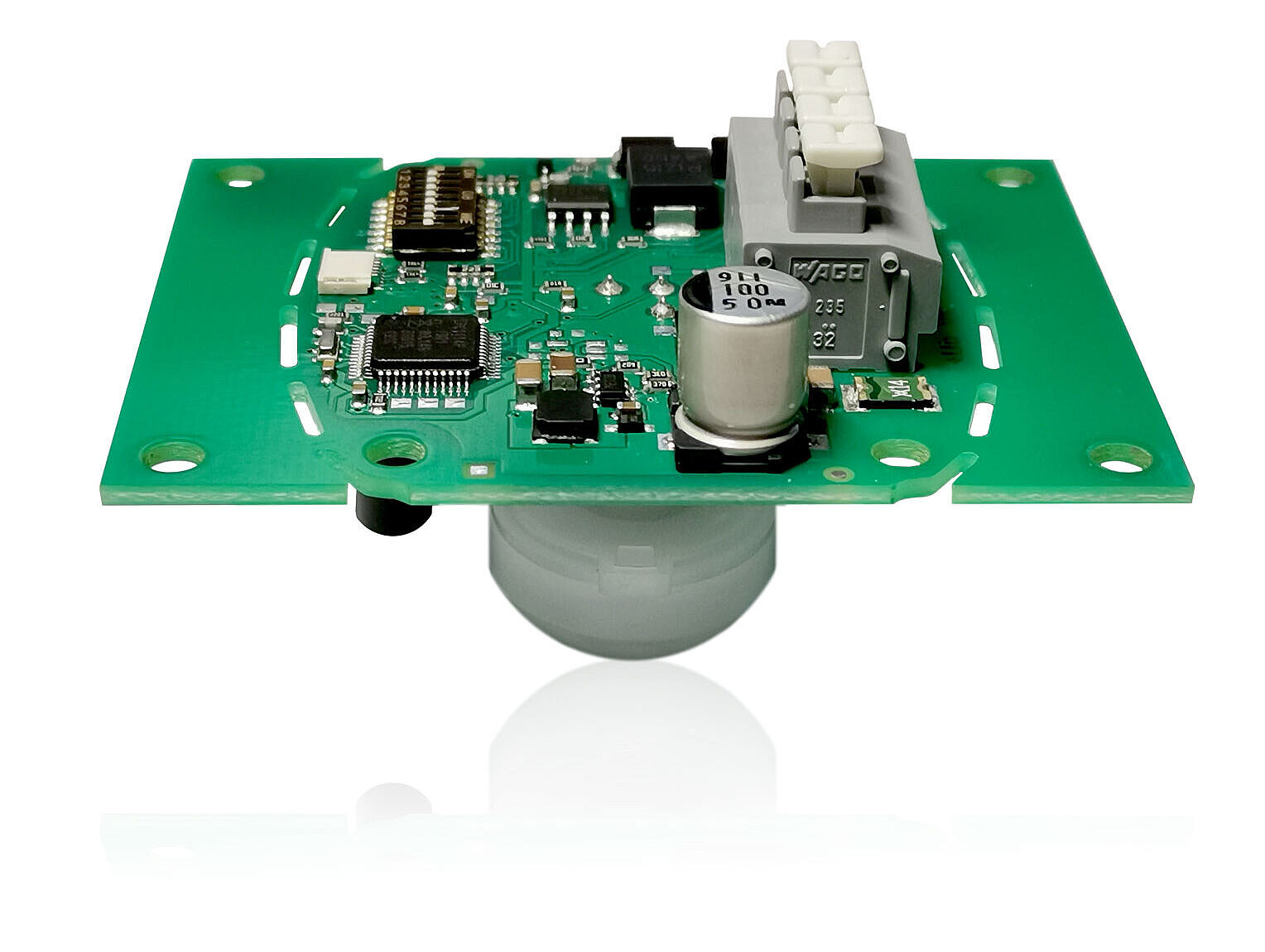

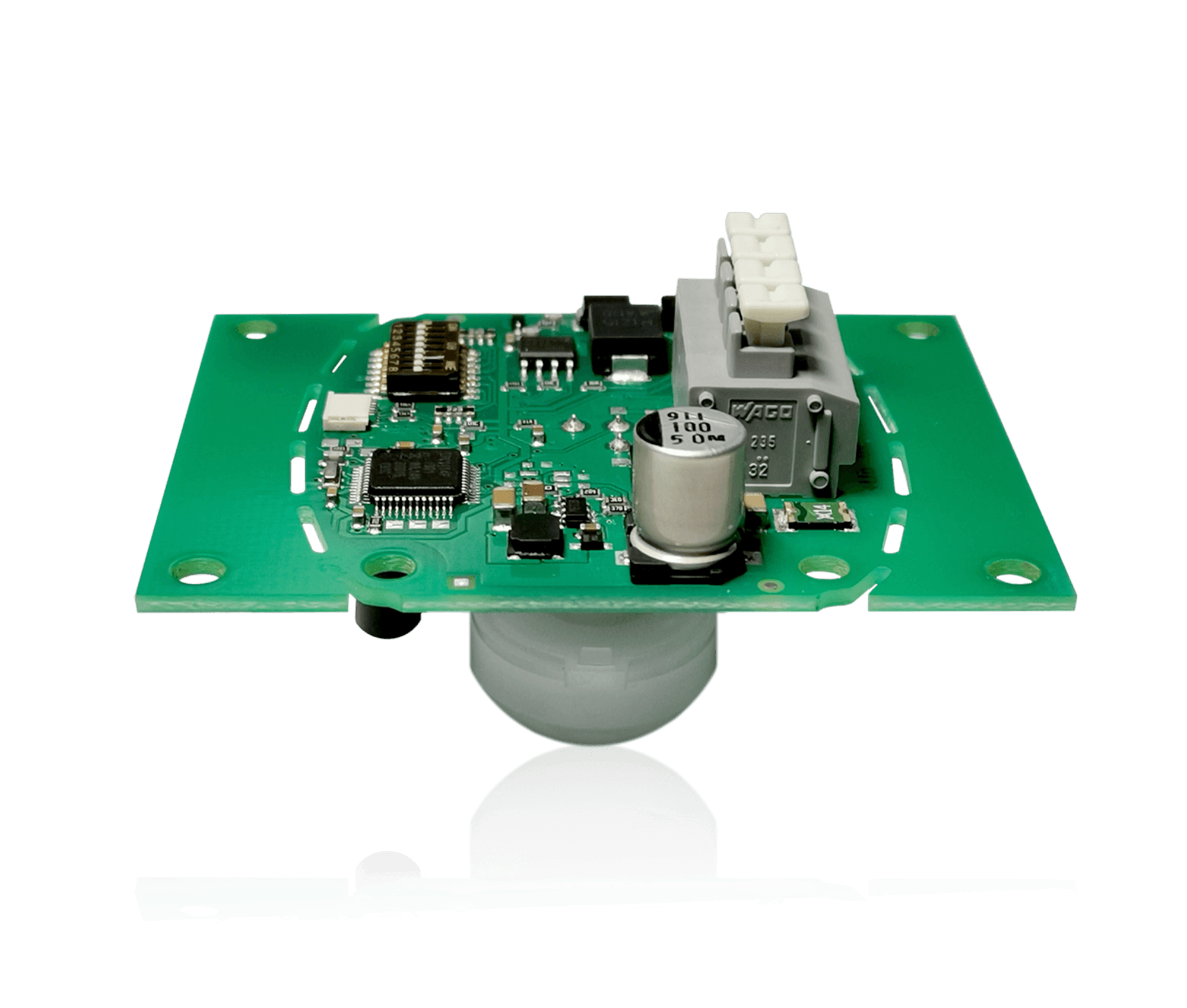

The LS-07-PIR-02-WH is a digital Light Sensor with Motion Sensor for indoor applications. The sensor is connected directly to the ISYGLT BUS. The Light Sensor provides a calibratable 16-bit brightness value. Daylight controls, regulation and switching thresholds can be realised with this light value. The measured spectrum corresponds to the standardised V-lambda curve (λ).
The PIR Motion Sensor is equipped with different detection lenses depending on the type. Up to 4 separately parameterisable sensitivity setups are available for evaluation. Thus, adjustments to customer requirements and local conditions are individually possible, such as activating the lighting only in the case of large movement or maintaining the „ON“ state even in the case of small movement detections.
| Operating voltage | 12-24V DC (max. 30V DC) |
| Current consumption | max. 10mA |
| Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
| Measuring range illuminance | 0 to 4500 lx (depending on mounting) |
| PIR motion sensor |
High Density Long Distance Detection Type Detection: 69° x 69° Typical mounting height: 12m Range: 12m - 14.5m Sensor EKMC2606111K |
| Connection | Push-in terminals |
| Operating temperature ta | -20°C to +45°C |
| Storage temperature | -25°C to +70°C |
| Humidity | 0-90% r. h. non-condensing |
| Protection class | IP00 |
8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the circuit board of the module.
| DIP | Function |
|---|---|
| S1 | Reserve (must be set to OFF) |
| S2 to S8 | ISYGLT module address |
| Type designation | Article no. | Description |
|---|---|---|
| LS-07-PIR-01-WH | 80085081 | Loose printed circuit board (PCB) without housing Long Distance Detection Type Detection area: 108° x 99° Typical mounting height: 7m Range: up to 12m Sensor EKMC2603111K |
| LS-07-PIR-01-WH-AP | 80085081-11 | Sensor in surface-mounted plastic housing halogen-free grey Long Distance Detection Type Detection area: 108° x 99° Typical mounting height: 7m Range: up to 12m Sensor EKMC2603111K |
| LS-07-PIR-01-WH-APG | 80085081-61 | Sensor in surface-mounted housing GIRA System 55 Long Distance Detection Type Detection area: 108° x 99° Typical mounting height: 7m Range: up to 12m Sensor EKMC2603111K |
| LS-07-PIR-01-WH-UP | 80085081-31 | Sensor in flush-mounted cover and frame GIRA System 55 pure white shiny Long Distance Detection Type Detection area: 108° x 99° Typical mounting height: 7m Range: up to 12m Sensor EKMC2603111K |
| LS-07-PIR-02-WH | 80085082 | Loose printed circuit board (PCB) without housing High Density Long Distance Detection Type Detection area: 69° x 69° Typical mounting height: 12m Range: 12m - 14.5m Sensor EKMC2606111K |
| LS-07-PIR-02-WH-AP | 80085082-11 | Sensor in surface-mounted plastic housing halogen-free grey High Density Long Distance Detection Type Detection area: 69° x 69° Typical mounting height: 12m Range: 12m - 14.5m Sensor EKMC2606111K |
| LS-07-PIR-02-WH-APG | 80085082-61 | Sensor in surface-mounted housing GIRA System 55 High Density Long Distance Detection Type Detection area: 69° x 69° Typical mounting height: 12m Range: 12m - 14.5m Sensor EKMC2606111K |
| LS-07-PIR-02-WH-UP | 80085082-31 | Sensor in flush-mounted cover and frame GIRA System 55 pure white shiny High Density Long Distance Detection Type Detection area: 69° x 69° Typical mounting height: 12m Range: 12m - 14.5m Sensor EKMC2606111K |
