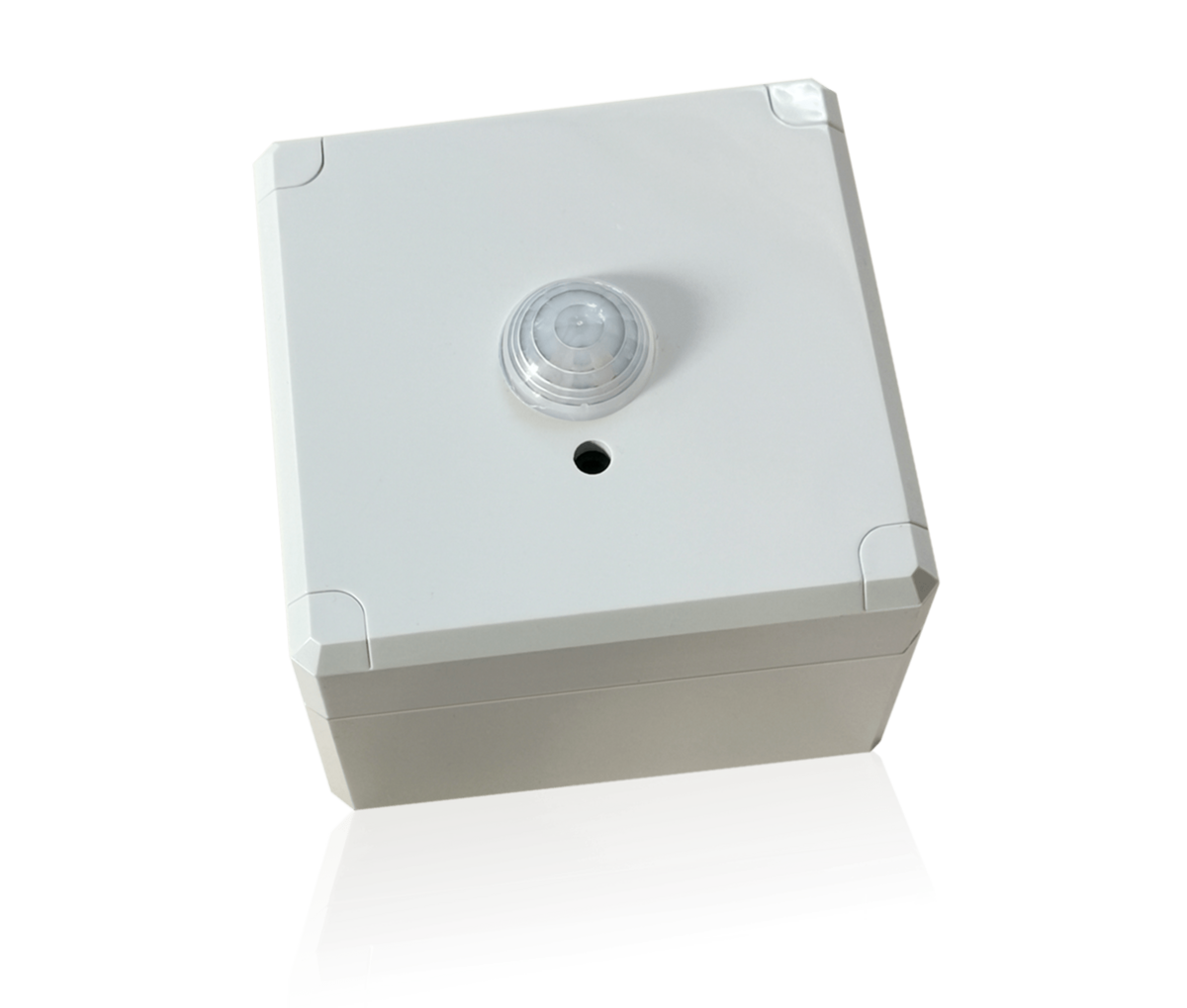

The LS-07-PIR-02-WH-AP is a digital Light Sensor with Motion Sensor for indoor applications. The sensor is connected directly to the ISYGLT BUS. The Light Sensor provides a calibratable 16-bit brightness value. Daylight controls, regulation and switching thresholds can be realised with this light value. The measured spectrum corresponds to the standardised V-lambda curve (λ).
The PIR Motion Sensor is equipped with different detection lenses depending on the type. Up to 4 separately parameterisable sensitivity setups are available for evaluation. Thus, adjustments to customer requirements and local conditions are individually possible, such as activating the lighting only in the case of large movement or maintaining the „ON“ state even in the case of small movement detections.
