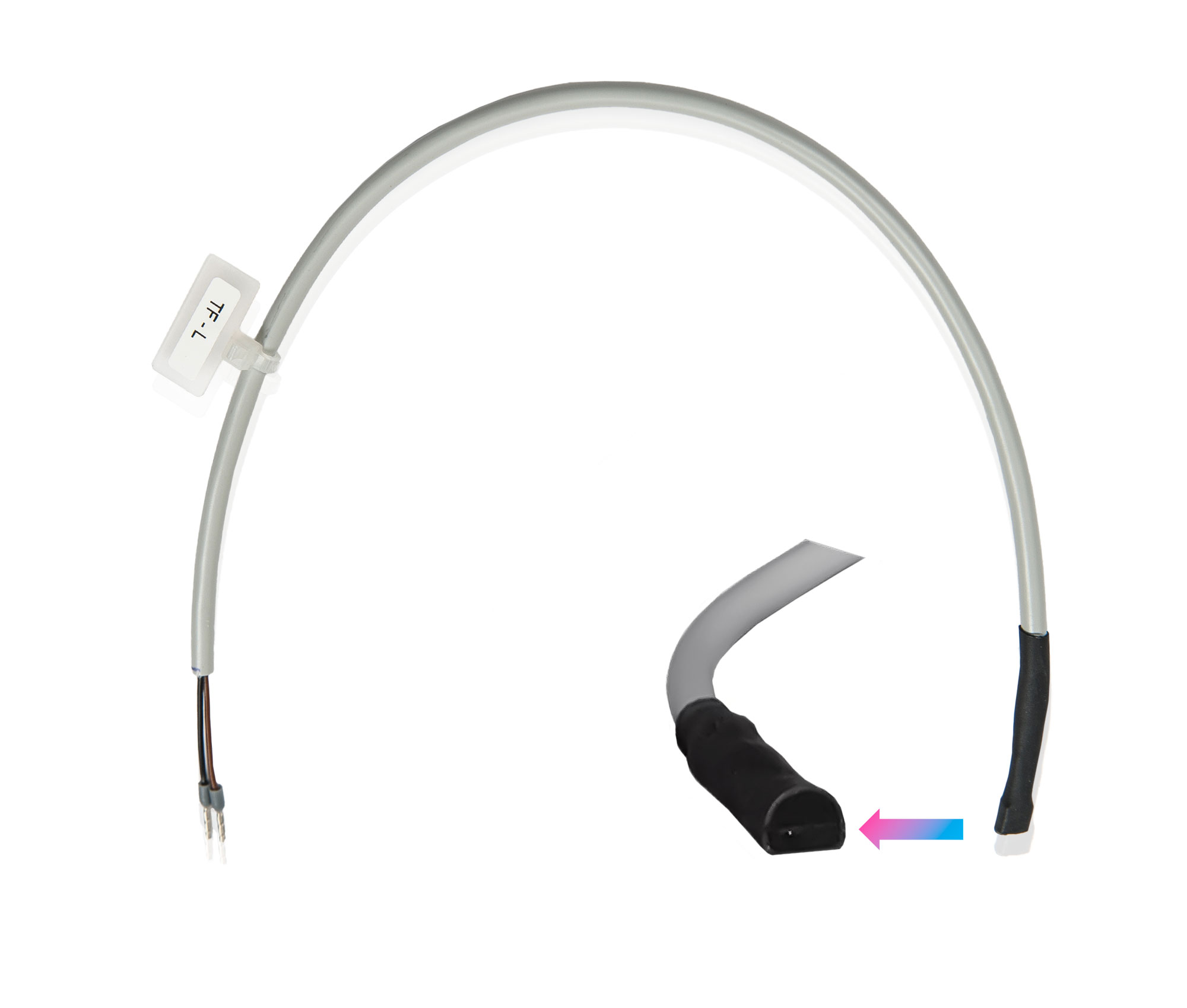

Temperature Sensor TF-L

The Temperature Sensor TF-L is designed for connection to the ISYGLT modules TEMP-02U or ER-04U.

Quick Facts

  • -55°C to +105°C
  • Cable 0.3m
  • Temperature monitoring
  • Room temperature measurement

The Temperature Sensor TF-L is designed for connection to the ISYGLT modules TEMP-02U or ER-04U. It is supplied as a loose component. The measuring range of the sensor is -55°C to +105°C.

The following must be observed when mounting the sensor for room temperature measurement:
The sensor must be freely surrounded by the room air. Installation in the occupied zone approx. 1.5m high above the floor and at least 0.5m away from the next wall. Do not expose to direct sunlight. Do not mount on an external wall, in niches, behind curtains, near doors or near heat sources (lamps, fireplaces).

Electrical Data

Cable length 0.3m heat resistant
Measuring range -55 to +105°C
Measuring element semiconductor sensor calibrated ± 0.5K
Precision ± 0,5°C in the range -15°C to +105°C
± 2°C in the range -55°C to -15°C
Operating temperature -55...+125°C
Storage temperature -55...+125°C
Protection class IP 65

Design, Dimensions, Weight

Design loose in TO-92 housing
Weight approx. 10 g (without connection cable)

Ordering Data and Conformity

Type designation TF-L
Article no. 80081110
Make ISYGLT
Conformity CE

Tender Documents

Instruction Manuals

Pin Assignment

2-pole cable

Brown +sensor
Black GND sensor
