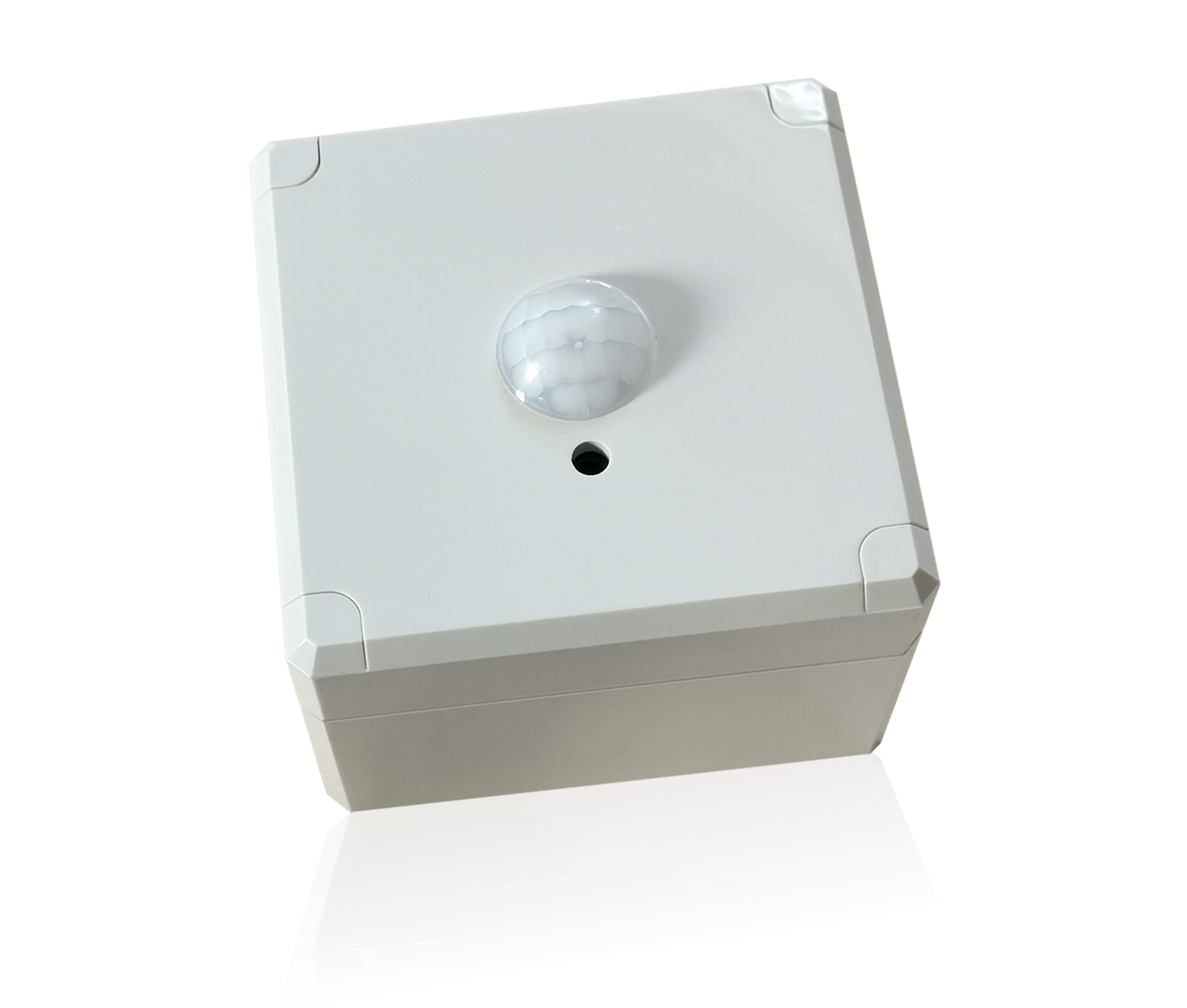

Light and Motion Sensor LS-07-PIR-01-WH-AP

The digital Light Sensor with PIR Motion Sensor (Passive-Infrared) provides a calibratable 16-bit brightness value and is suitable for daylight controls, regulation and switching thresholds indoors.

Quick Facts

  1. digital light sensor in surface-mounted plastic housing
  2. PIR motion detection
  3. up to 4 adjustable sensitivities
  4. daylight controls, regulation and switching thresholds can be implemented

The LS-07-PIR-01-WH-AP is a digital Light Sensor with Motion Sensor for indoor applications. The sensor is connected directly to the ISYGLT BUS. The Light Sensor provides a calibratable 16-bit brightness value. Daylight controls, regulation and switching thresholds can be realised with this light value. The measured spectrum corresponds to the standardised V-lambda curve (λ).

The PIR Motion Sensor is equipped with different detection lenses depending on the type. Up to 4 separately parameterisable sensitivity setups are available for evaluation. Thus, adjustments to customer requirements and local conditions are individually possible, such as activating the lighting only in the case of large movement or maintaining the „ON“ state even in the case of small movement detections.

Electrical Data

Operating voltage 12-24V DC (max. 30V DC)
Current consumption max. 10mA
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Measuring range illuminance 0 to 4500 lx (depending on mounting)
PIR motion sensor Long Distance Detection Type
Detection: 108° x 99°
Typical mounting height: 7m
Range: up to 12m
Sensor EKMC2603111K
Connection Push-in terminals
Operating temperature ta -20°C to +45°C
Storage temperature -25°C to +70°C
Humidity 0-90% r. h. non-condensing
Protection class >IP20

Design, Dimensions, Weight

Design in surface-mounted plastic housing halogen-free grey
Dimensions LxWxH 80 x 82 x 56mm
Weight 160g

Ordering Data and Conformity

Type designation LS-07-PIR-01-WH-AP
Article no. 80085081-11
Make ISYGLT
Conformity CE

Tender Documents

Technical Drawings

DIP Switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the circuit board of the module.

DIP Function
S1 Reserve (must be set to OFF)
S2 to S8 ISYGLT module address

Function Indicators (LEDs on the Module)

LED Meaning / Function
1x red Function can be freely parameterised via the ProgramDesigner.

Software


Detection Range PIR Sensor


Pin Assignment

4-pole terminal

+ Operating voltage
- Operating voltage
A Subnet BUS A
B Subnet BUS B

Variants

Type designation Article no. Description
LS-07-PIR-01-WH 80085081 Loose printed circuit board (PCB) without housing
Long Distance Detection Type
Detection area: 108° x 99°
Typical mounting height: 7m
Range: up to 12m
Sensor EKMC2603111K
LS-07-PIR-01-WH-AP 80085081-11 Sensor in surface-mounted plastic housing halogen-free grey
Long Distance Detection Type
Detection area: 108° x 99°
Typical mounting height: 7m
Range: up to 12m
Sensor EKMC2603111K
LS-07-PIR-01-WH-APG 80085081-61 Sensor in surface-mounted housing GIRA System 55
Long Distance Detection Type
Detection area: 108° x 99°
Typical mounting height: 7m
Range: up to 12m
Sensor EKMC2603111K
LS-07-PIR-01-WH-UP 80085081-31 Sensor in flush-mounted cover and frame GIRA System 55 pure white shiny
Long Distance Detection Type
Detection area: 108° x 99°
Typical mounting height: 7m
Range: up to 12m
Sensor EKMC2603111K
LS-07-PIR-02-WH 80085082 Loose printed circuit board (PCB) without housing
High Density Long Distance Detection Type
Detection area: 69° x 69°
Typical mounting height: 12m
Range: 12m - 14.5m
Sensor EKMC2606111K
LS-07-PIR-02-WH-AP 80085082-11 Sensor in surface-mounted plastic housing halogen-free grey
High Density Long Distance Detection Type
Detection area: 69° x 69°
Typical mounting height: 12m
Range: 12m - 14.5m
Sensor EKMC2606111K
LS-07-PIR-02-WH-APG 80085082-61 Sensor in surface-mounted housing GIRA System 55
High Density Long Distance Detection Type
Detection area: 69° x 69°
Typical mounting height: 12m
Range: 12m - 14.5m
Sensor EKMC2606111K
LS-07-PIR-02-WH-UP 80085082-31 Sensor in flush-mounted cover and frame GIRA System 55 pure white shiny
High Density Long Distance Detection Type
Detection area: 69° x 69°
Typical mounting height: 12m
Range: 12m - 14.5m
Sensor EKMC2606111K
