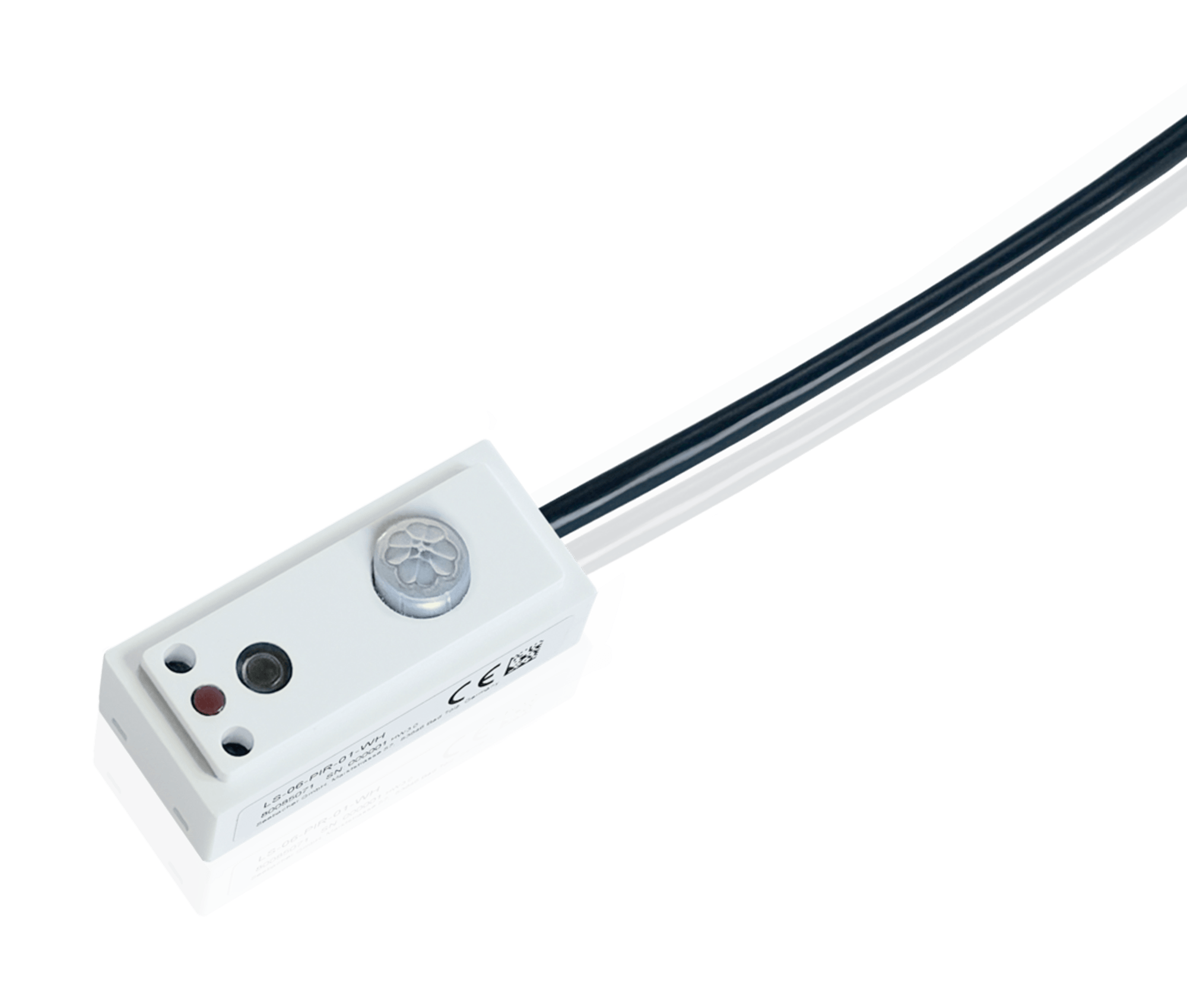

Light and Motion Sensor LS-06-PIR-01-WH

The digital Light Sensor with PIR Motion Sensor (Passive-Infrared) provides a calibratable 16-bit brightness value and is suitable for daylight controls, regulation and switching thresholds indoors.

Quick Facts

  • digital light sensor
  • PIR motion detection
  • up to 4 adjustable sensitivities
  • daylight controls, regulation and switching thresholds can be implemented

The LS-06-PIR-01-WH is a digital Light Sensor with Motion Sensor for indoor applications. The sensor is connected directly to the ISYGLT BUS. The Light Sensor provides a calibratable 16-bit brightness value. Daylight controls, regulation and switching thresholds can be realised with this light value. The measured spectrum corresponds to the standardised V-lambda curve (λ).

The PIR Motion Sensor is equipped with different detection lenses depending on the type. Up to 4 separately parameterisable sensitivity setups are available for evaluation. Thus, adjustments to customer requirements and local conditions are individually possible, such as activating the lighting only in the case of large movement or maintaining the „ON“ state even in the case of small movement detections.

Electrical Data

Operating voltage 12-24V DC (max. 30V DC)
Current consumption max. 10mA
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Measuring range illuminance 0 to 4500 lx (depending on mounting)
PIR motion sensor Low Profile Type
Detection: 110° x 110°
Typical mounting height: 3m
Range: 3m - 5m
Sensor EKMC2607111K
Connection Mini-plug Molex 51021-0400, 4-pole cable to RJ10 incl. terminal adapter
Delivery scope Sensor, 250mm connection cable, RJ10 adapter für cable cross-section 0.25-0.75mm²
Operating temperature ta -20°C to +45°C
Storage temperature -25°C to +70°C
Humidity 0-90% r. h. non-condensing
Protection class >IP20

Design, Dimensions, Weight

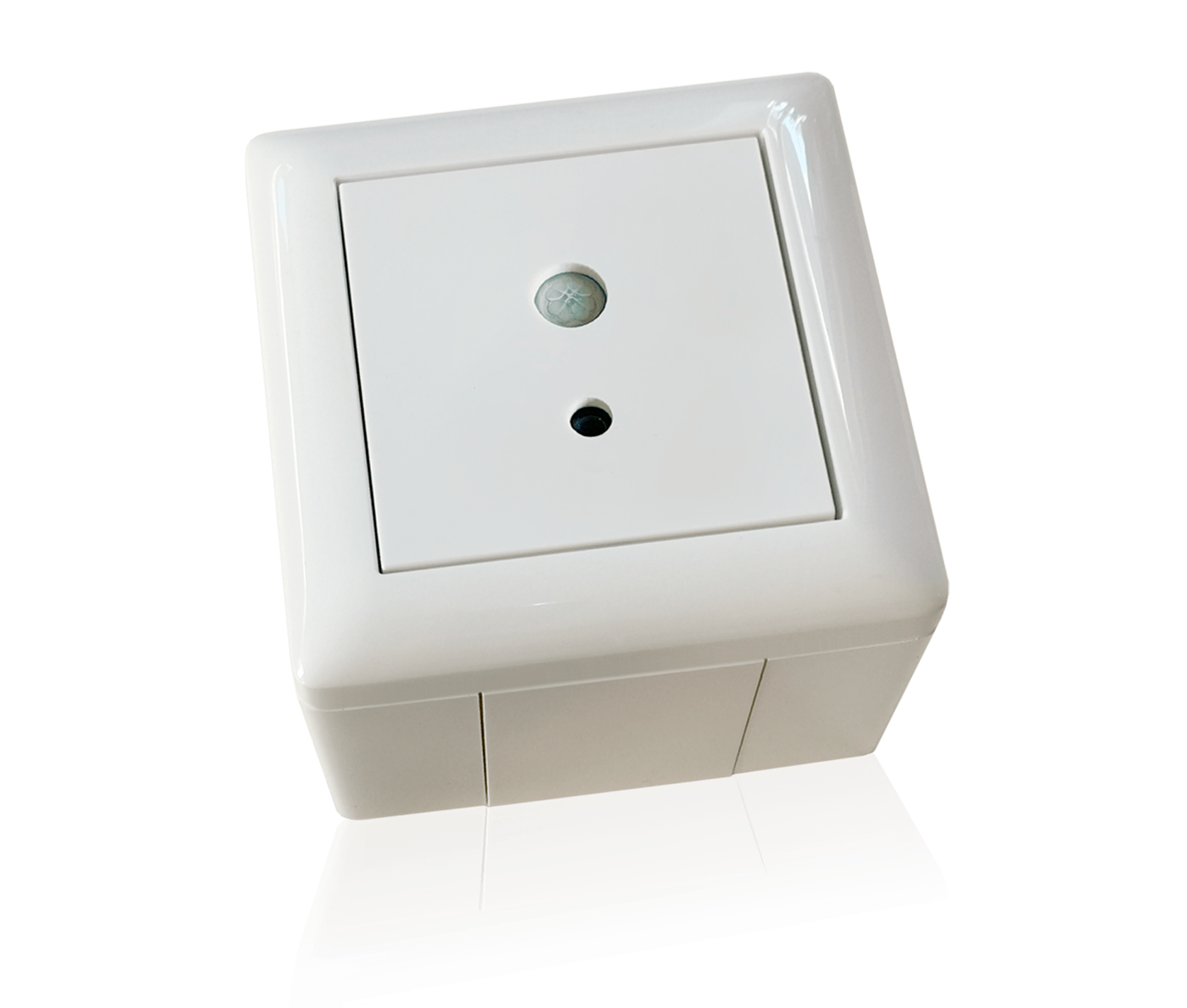

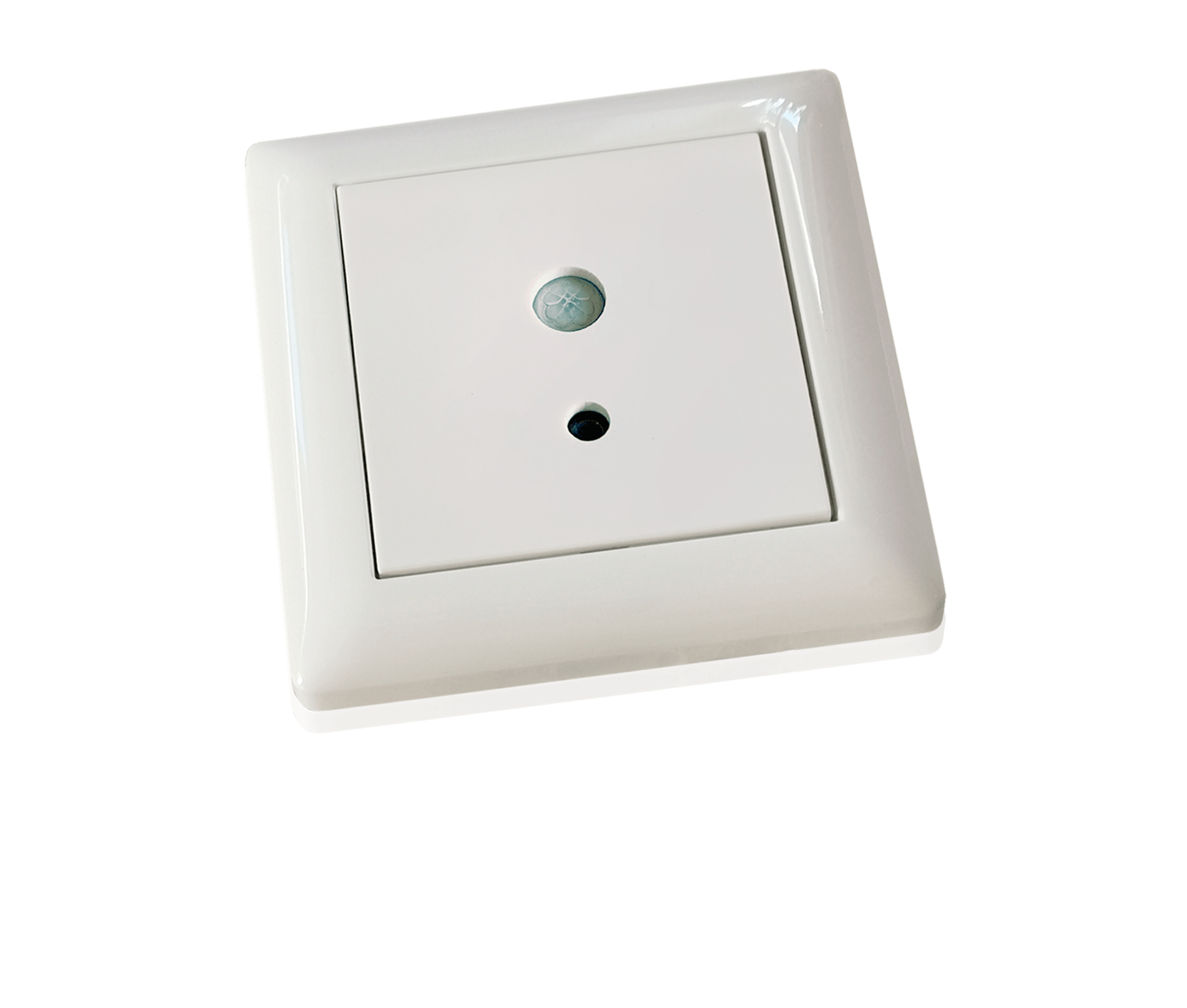

Design White mini plastic housing for installation in luminaires / profiles, other housing variants on request
Dimensions LxWxH 46.4mm x 20.4mm x 14mm
Weight 12g (sensor unit only)

Ordering Data and Conformity

Type designation LS-06-PIR-01-WH
Article no. 80085071
Conformity CE

Tender Documents

Instruction Manuals

Technical Drawings

Wiring Diagrams

Address setting

Due to the design of the sensor, there is no space for the usual DIP switch for address setting. With this sensor, the address is set via software parameterisation with the ISYGLT ProgramDesigner.

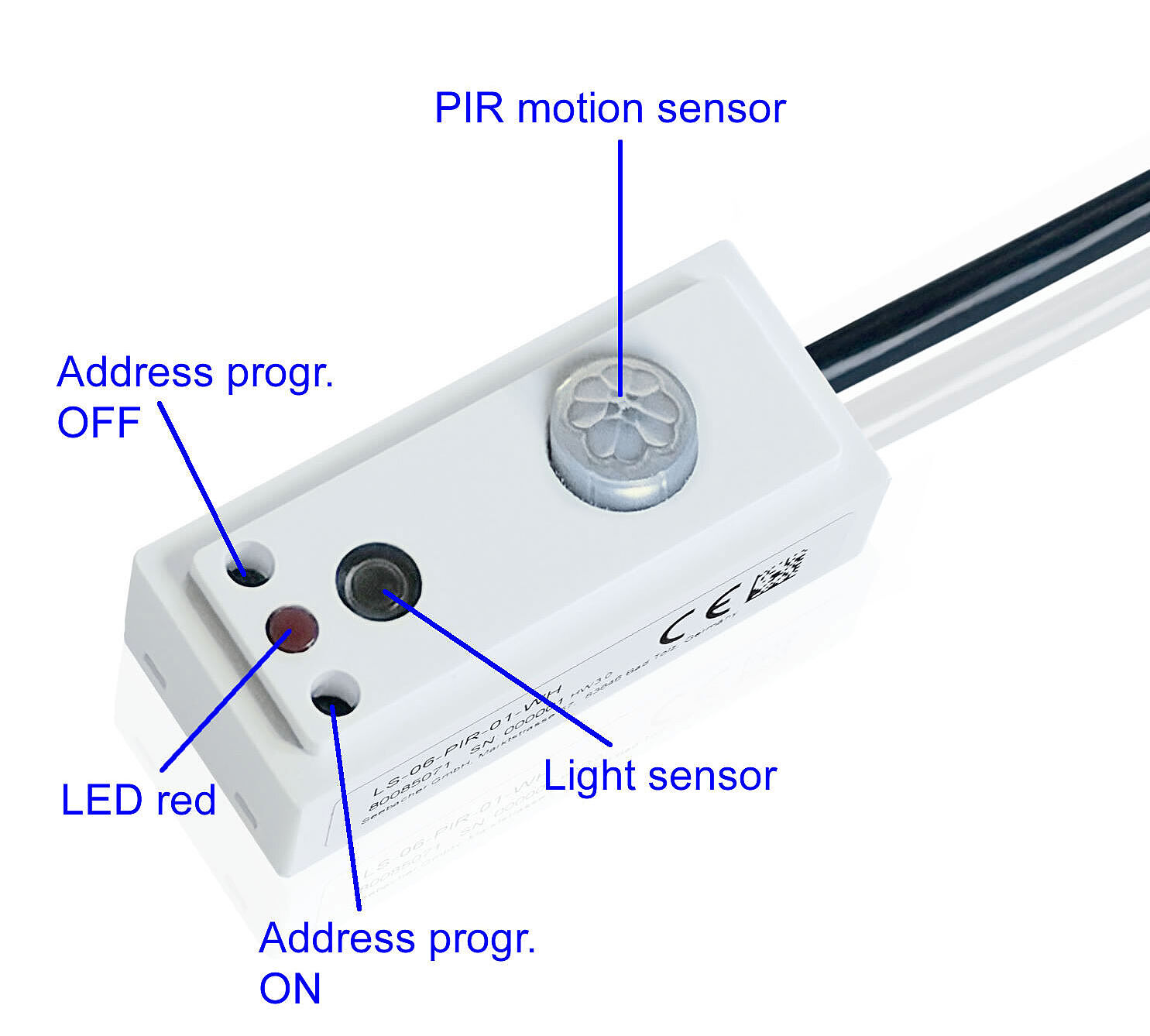

Display and buttons at the sensor

 StateMeaning / Function
LED redslow blinkingSensor has no address
fast blinkingSensor is in programming mode
OffSensor has a BUS address
IndividualIn BUS operation, the LED is freely programmable, e.g. movement active.
Button right Activation of the programming mode, actuation with small screwdriver or plastic, e.g. small cable tie
Button left Switching off the programming mode

In the ProgramDesigner (from version R095), the sensor must be created as a module.
In addition, a virtual module „ISYGLT_ADR“ is required.

To be able to set the BUS address, the desired address must be entered in the Parameter tab.

Now the sensor to be addressed must be set to addressing mode - the red LED now flashes quickly. Click on "Sende Parameter" in the ProgramDesigner - the red LED on the LS-06-PIR-01-WH turns off and the sensor now reports to the BUS.


Detection range PIR sensor

Pin Assignment

4-pole terminal

+ Operating voltage
- Operating voltage
A Subnet BUS A
B Subnet BUS B

Additional Equipment

  • 250mm connection cable (included in delivery)
  • RJ10 terminal adapter (included in delivery)


TypeArticle no.Description
LS-06-PIR-01-WH80085071Compact housing white
Low Profile Type
Detection: 110°x110°
Typical mounting height: 3m
Range: up to 5m
Sensor EKMC2607111K
LS-06-PIR-02-WH80085073Compact housing white
Standard + Slight Motion
Detection (Slight Motion): 44°x44°
Detection (Standard Motion): 91°x91°
Typical mounting height: 3m
Range: 2.2m - 3.1m
Sensor EKMC2693111K
