The Weather Sensor Module was developed especially for connecting the Weather Station WETTER-01.
The Weather Sensor Module was specially developed for the Weather Station WETTER-01 available in the ISYGLT product range. By parameterising the module in the ProgramDesigner, the correct basic initialisation and transfer of the meteorological data to the desired flags and variables in the correct format in the subnet of the ISYGLT system takes place automatically.
The following values can be selected per parameter:
Outdoor temperature, dew point temperature, relative humidity, light twilight 0-255lx, wind speed in m/s, km/h, kn or according to ISYGLT standard, wind direction in ° or according to ISYGLT standard, precipitation (rain), absolute air pressure, relative air pressure, GPS clock as system clock, sky brightness east, south, west and north, sun azimuth and elevation.
| Type | WSM-02E-RS485 |
| Item number | 80086057 |
| Operating voltage | 12-30V DC |
| Current consumption | max. 30mA |
| Subnet (RS-485) | max. 5.6V limitation by Z-diodes |
| RS-485 for Weather Station | 2nd interface, electrically isolated from subnet |
| Connection | plug-in screw terminals max. 0.75mm² |
| Operating temperature | -10...+50°C |
| Storage temperature | -25...+70°C |
| Humidity | 0...85 % r.h. non-condensing |
| Protection class | IP20 |
| Design | molded in yellow plastic cap for installation in boxes or external devices |
| Dimensions | DxH 50x27mm |
| Weight | 60g |
| Brand | ISYGLT |
| Compliance | CE |
DIP switch
8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located on the module.
Function Indicators (LEDs on the Module)
| LED | Designation | State | Meaning |
|---|---|---|---|
| red | Power | Off | No operating voltage |
| On | Operating voltage, no error, weather station not yet connected | ||
| blinking | Error-free communication with the weather station | ||
| yellow | BUS | Off | No BUS signal detected |
| On | Error BUS communication (wrong address) | ||
| blinking | Interference-free data transmission via the BUS line |
Parameterisation with ProgramDesigner
- blue sensor LED active/inactive
- station height
- north correction
- filter time constants of the weather data

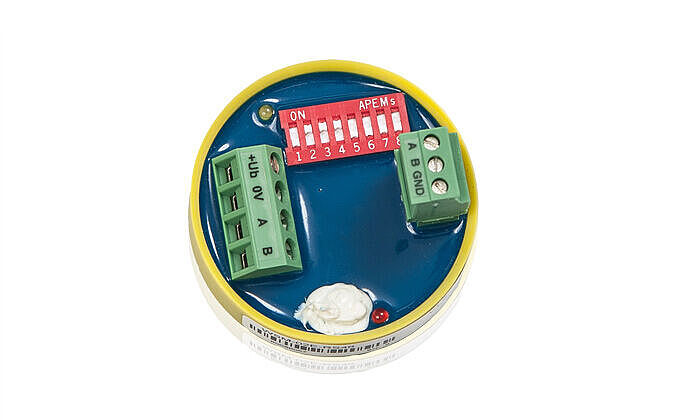

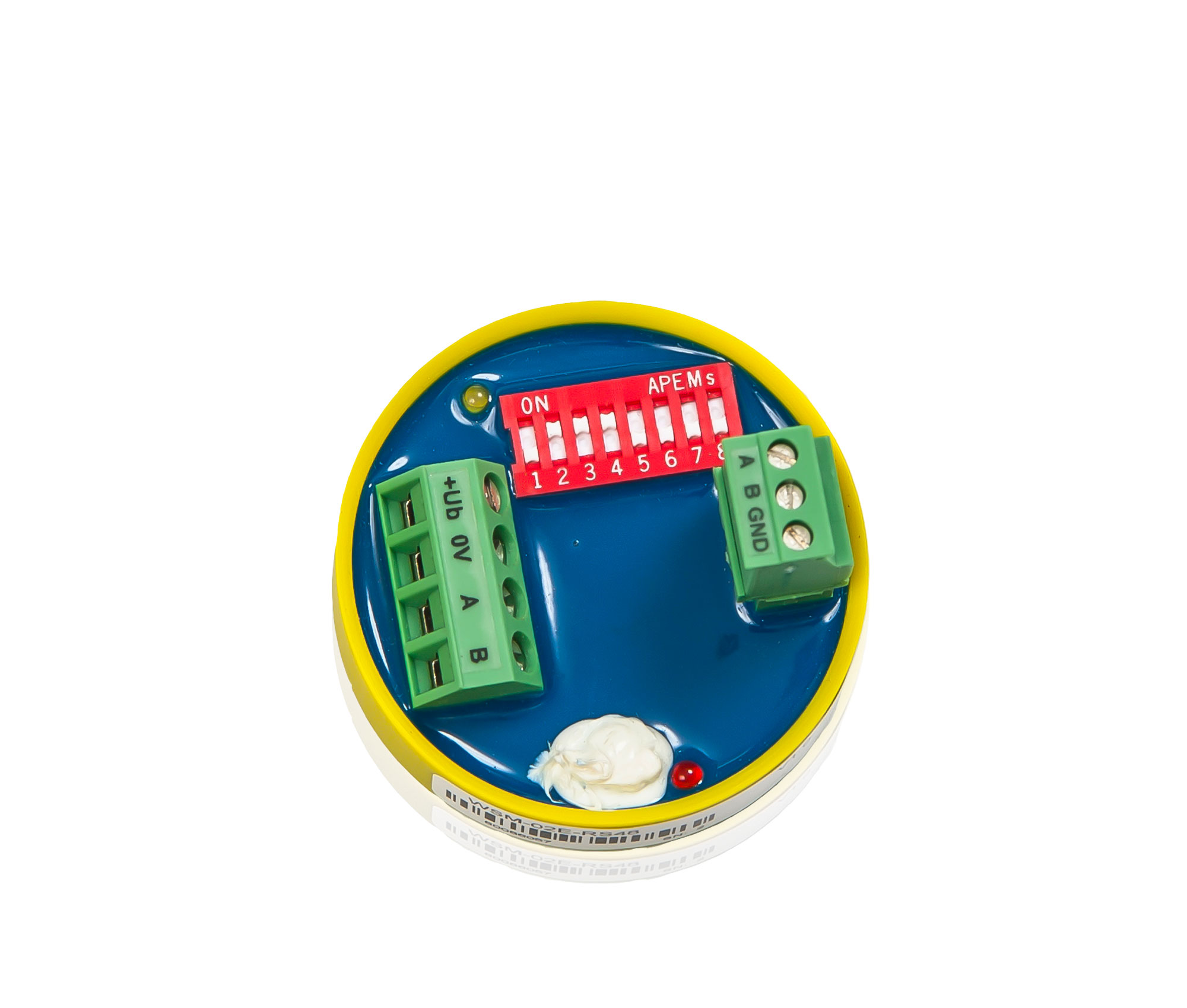

Pin Assignment Module
Pin Assignment Weather Sensor
Variant with 7-pole connector, changed wire colours (2021)
| PIN | Wire colour | Function |
|---|---|---|
| 1 | NC | |
| 2 | White | GND |
| 3 | Brown | A |
| 4 | Green | B |
| 5 | NC | |
| 6 | Yellow | 24V / Ub |
| 7 | Grey | 0V |
Variant with 7-pole connector from 2015
| PIN | Wire colour | Function |
|---|---|---|
| 1 | White | NC |
| 2 | Brown | GND |
| 3 | Green | A |
| 4 | Yellow | B |
| 5 | Grey | NC |
| 6 | Pink | 24V / Ub |
| 7 | Blue | 0V |
Variant with 5-pole connector from 2014
| PIN | Wire colour | Function |
|---|---|---|
| 1 | White | 24V / Ub |
| 2 | Brown | 0V |
| 3 | Black | A |
| 4 | Blue | B |
| 5 | Grey | GND |
WSM-02E-RS485
Article no.: 80086057
