| Type designation | TF-E-02 / TF-E-02-20m |
| Article no. | 80081105 / 80081106 |
| Cable length | 2m / 20m heat resistant |
| Measuring range | -55 to +105°C |
| Measuring element | semiconductor sensor calibrated ± 0.5K |
| Precision |
± 0.5°C in the range -15°C to +105°C ± 2°C in the range -55°C to -15°C |
| Operating temperature | -55...+125°C |
| Storage temperature | -55...+125°C |
| Protection class | IP 65 |
| Design | installed version |
| Dimensions | DxL 7 x 40 mm |
| Weight | approx. 10 g (without connection line) |
| Make | ISYGLT |
| Conformity | CE |
Alignment
There is a mark with an entered value on the cable of the sensor. This can be in the range from -7 to +7. This correction value is determined during production of the sensors and indicates the sensor deviation in 0.5K steps.
The Temperature Module TEMP-02U has 2 sensor inputs. With the SETTEMP command, these can be easily adjusted.
Example:
| SETTEMP | 10 ;Address TEMP-02U -3 ; Correction value sensor 1 +1 ; Correction value sensor 2 |
The sensor is showing too low:
| Display | Actual value | Error | Correction value |
|---|---|---|---|
| 10,0°C | 10,5°C | -0,5K | +1 |
| 10,0°C | 12,0°C | -2,0K | +4 |
| 10,0°C | 13,5°C | -3,5K | +7 |
The sensor is showing too much:
| Display | Actual value | Error | Correction value |
|---|---|---|---|
| 20,0°C | 18,5°C | +1,5K | -3 |
| 21,0°C | 18,0°C | +3,0K | -6 |
| 21,5°C | 18,0°C | +3,5K | -7 |
Pin Assignment
Additional Equipment
Variants
- Built-in version cable 2m: TF-E-02 (80081105)
- Built-in version cable 20m: TF-E-02-20m (80081106)
- Surface mounting version cable 2m: TF-A (80081101)
- Surface mounting version cable 20m: TF-A-20m (80081102)
New
Sale

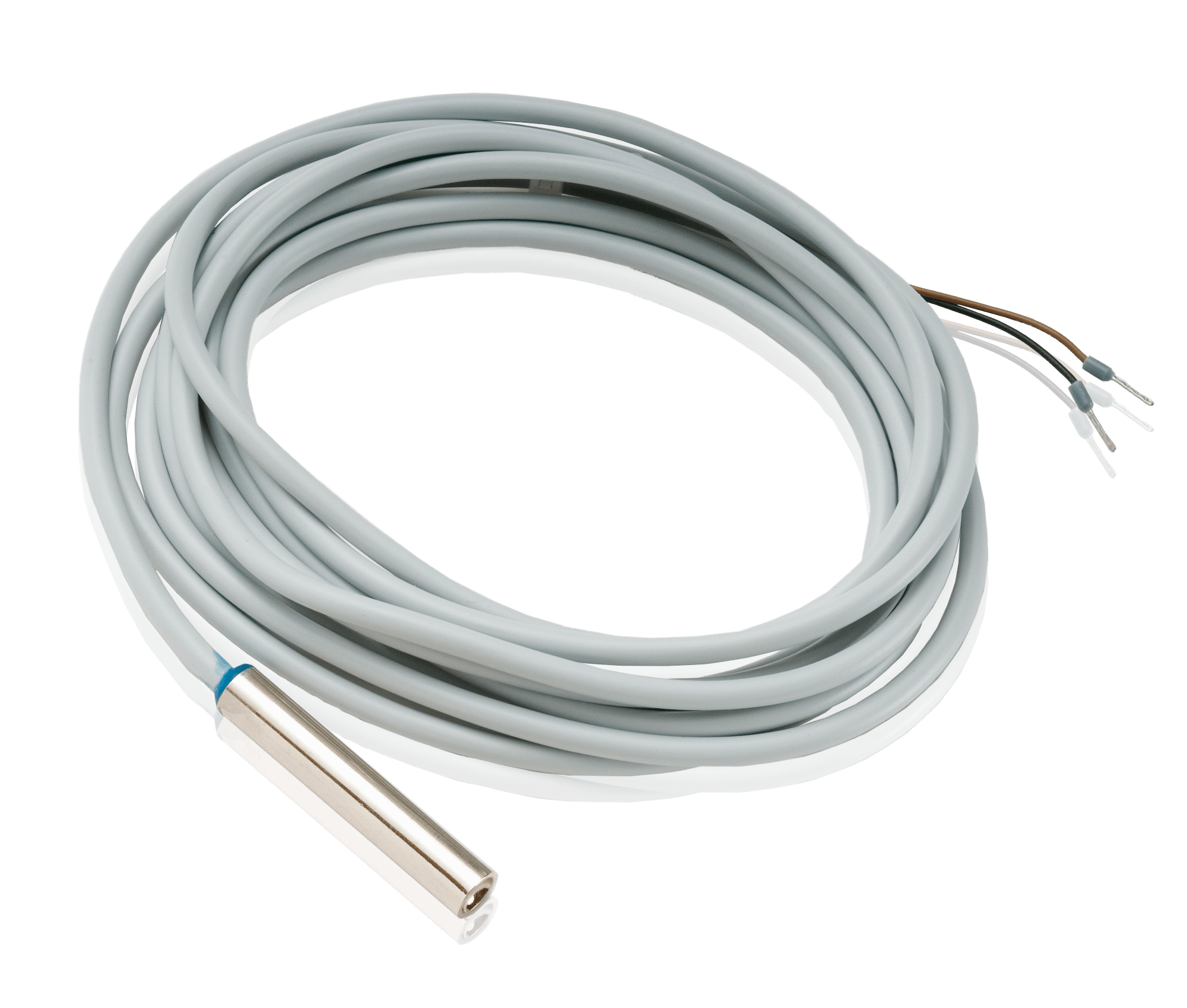

TF-E-02
Article no.: 80081105
The Temperature Sensor TF-E-02 is designed for connection to the ISYGLT modules TEMP-02U or ER-04U.
