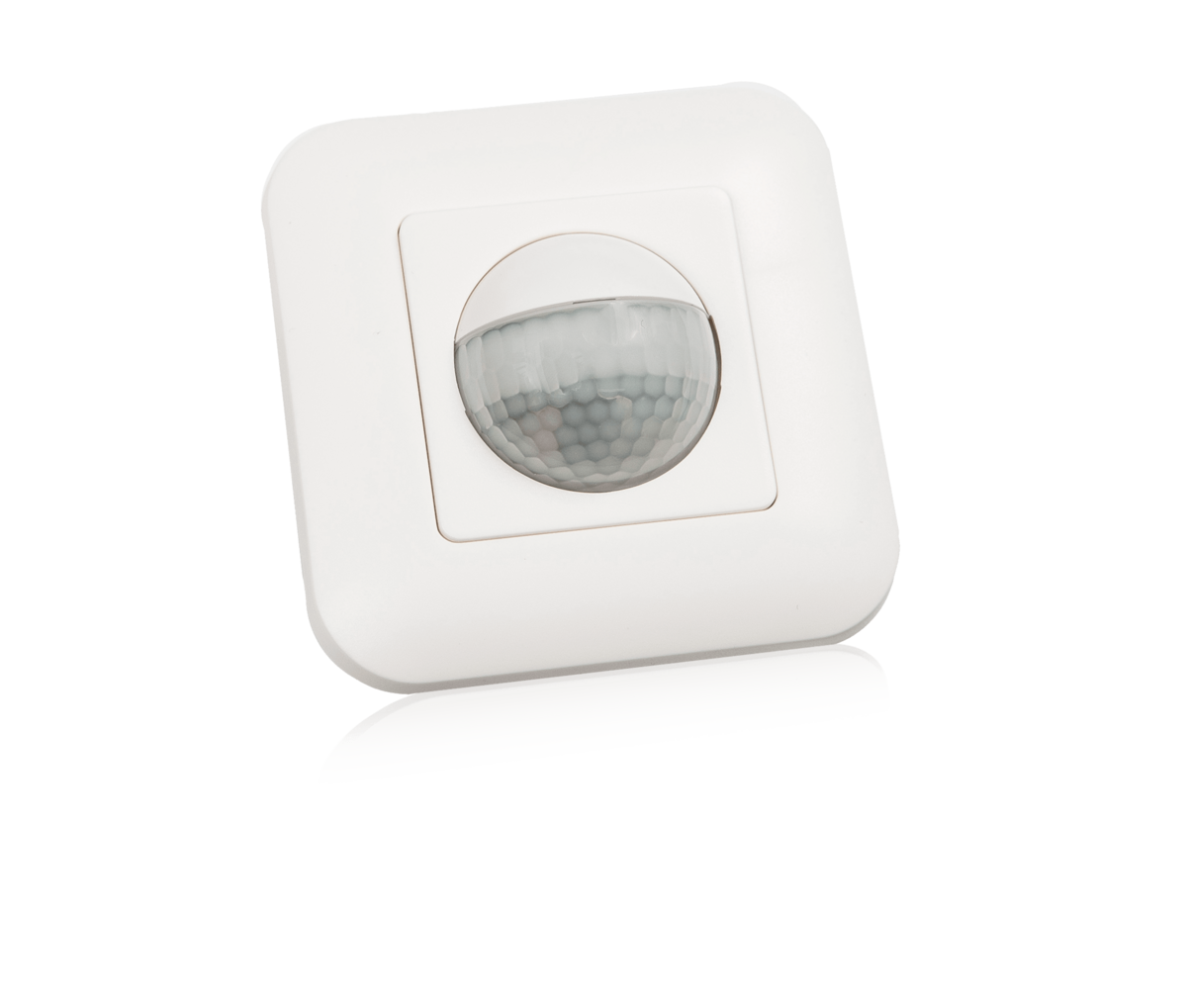

Wall Presence Sensor BW-WS-180-24V

The Wall Presence Sensor detects even the smallest movements and is ideally suited for installation in corridors and rooms with a range of up to 20m. The Presence Sensor requires 24V and has an output that outputs the movement impulses. Optimum function is guaranteed by connection to a binary input of an I/O Module.

Quick Facts

  • Range up to 10m (at 2.20m mounting height)
  • Range up to 2.20m (at 1.10m mounting height)
  • Detection angle 180°
  • Corridors
  • WC Areas
  • Offices
  • Kindergardens

The Wall Presence Sensor is ideally suited for installation in corridors and rooms.

The Presence Sensor reacts to the smallest movements by means of high-resolution and precise sensor technology. In addition to motion detection, the noise level in the room can also be used to extend the switch-off time after the delay time has elapsed.
In addition to lighting control, the ISYGLT BUS system can also be used to intelligently and reliably integrate energy-efficient functions such as heating and air conditioning. This guarantees a savings potential of up to 80%.

Connection and operation takes place directly at the digital inputs of the ISYGLT I/O Modules or IN Modules.

Sensor type PIR
Detection angle 180°
Range 10m at 2.20m mounting height
Mounting height 1.10m to 2.20m

Application areas
Light control and presence detection for medium-sized rooms/surfaces, e.g:

  • corridors
  • WC areas
  • offices
  • kindergardens
  • hospitals
  • garages

Electrical data

Operating voltage 24V DC
Current consumption 100mA
Power consumption <1W
Output reed relay contact, max. 24V 100mA
Connection spring type terminal 5-pole 2x 0.25 - 0.75 mm² each
Operating temperature -25...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r.h. non-condensing
Protection class IP20

Design, Dimensions, Weight

Design flush-mounted housing white
Dimensions HxWxD 87x87x61mm
Weight 105g

Ordering Data and Conformity

Type designation BW-WS-180-24V
Article no. 80180001
Make ISYnet
Conformity CE

Tender Documents

Instruction Manuals

Technical Drawings

Wiring Diagrams

Information on the detection range

Pin Assignment

5-pole connection

R Remote connection
+ Operating voltage +24V
- Operating voltage -0V
R1 Reed switching contact
R1 Reed switching contact
