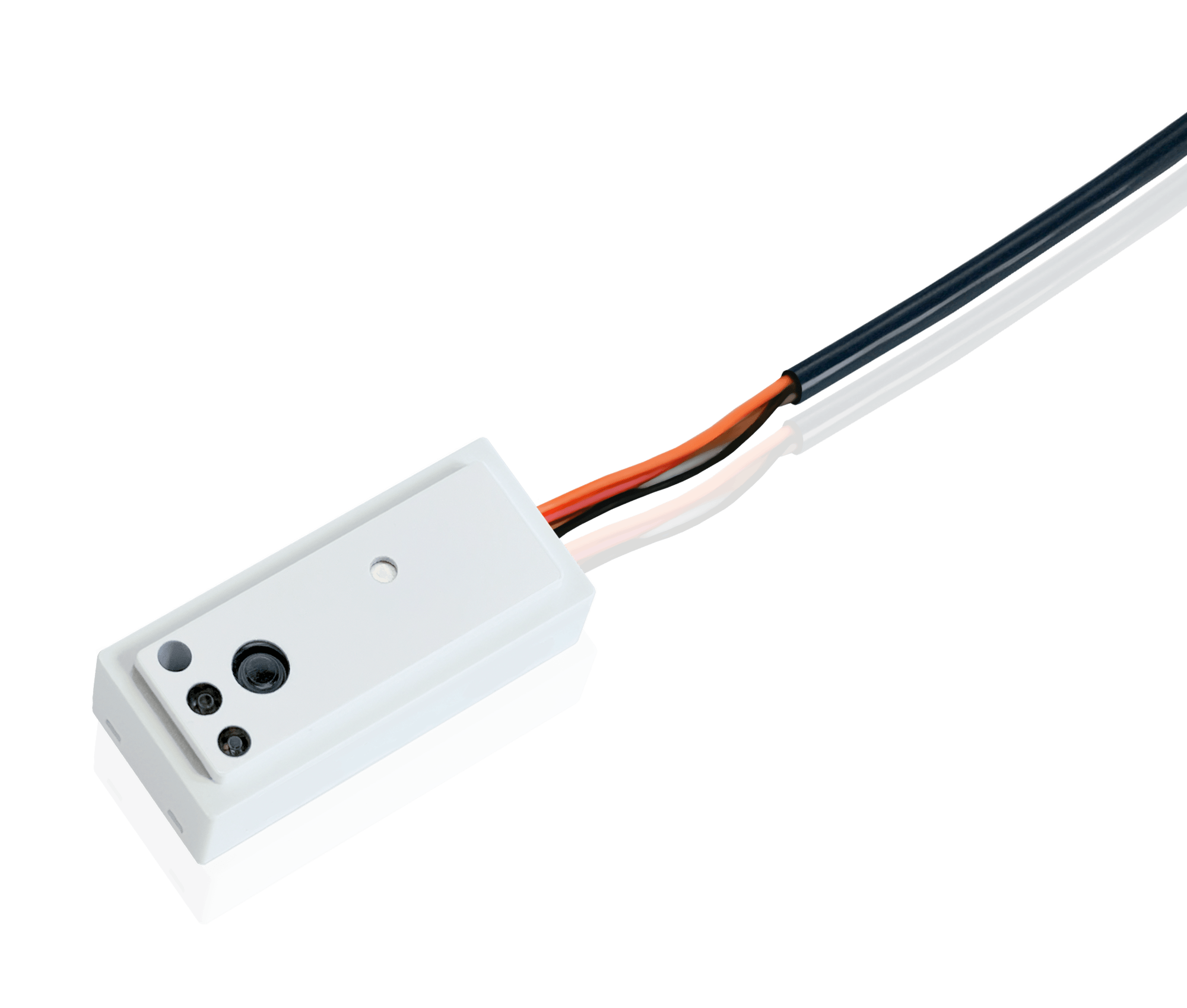

The module is used to evaluate indoor air quality and is connected directly to the ISYGLT BUS. Installation can be carried out in luminaires or, through additional mounting options, as surface-mounted or flush-mounted.
The internal CO₂ sensor measures the CO₂ concentration in the ambient air and indicates this via a multi-color LED. The evaluation is carried out in three levels: green indicates good air quality, yellow indicates moderate air quality, and red indicates poor air quality.
This information is available directly within the ISYGLT system and can be further processed there, for example, to enable targeted automatic ventilation of the room.
In addition, the ISYGLT system allows the brightness of the LED to be adjusted, thresholds to be set, and the LED to be controlled in a defined manner.
| Type | CO2-01 |
| Item number | 80081300 |
| Operating voltage | 17V-27V DC |
| Current consumption | Max. 20mA at 24V DC |
| Subnet (RS-485) | Max. 5.6 V limited by Zener diodes |
| Connection | Mini connector Molex 51021-0400, 4-pin cable to RJ10 incl. terminal adapter |
| Operating temperature | 0...+50°C |
| Storage temperature | -25...+70°C |
| Humidity | 0...85% RH, non-condensing |
| Protection rating | IP20 |
| Housing | Mini plastic housing for installation in luminaires/profiles, other housing variants available on request |
| Dimensions | LxWxH 46,4x20,4x14mm |
| Weight | 20g |
| Brand | ISYGLT |
| Compliance | CE |
Address Setting
Due to its design, the sensor does not provide space for the usual DIP switch for address setting. At this sensor, the address is set via software parameterization with the ISYGLT ProgramDesigner.
Display and buttons at the sensor
| Zustand / Betätigung | Bedeutung / Funktion | |
|---|---|---|
| LED | Blinks alternately red and green | Sensor has no BUS address (factory default) |
| Blinks red | Sensor is in programming mode | |
| Lights up green, yellow, or red | Indicates CO₂ thresholds: Good, moderate, or poor air quality | |
| Button left | Short press | Activates/deactivates programming mode |
| Long press (approx. 10s) | Resets the sensor to factory default |
In the ProgramDesigner (from version 8.00.17.1006 R103 onwards), the sensor must be created as a module.
In addition, a virtual module “ISYGLT_ADR” is required.
To set the BUS address, enter the desired address in the parameter tab.
Next, the sensor to be addressed must be switched to addressing mode: the red LED will start blinking rapidly. In the ProgramDesigner, click “Send Parameters” – the red LED will go off, and the sensor will now register on the BUS.
