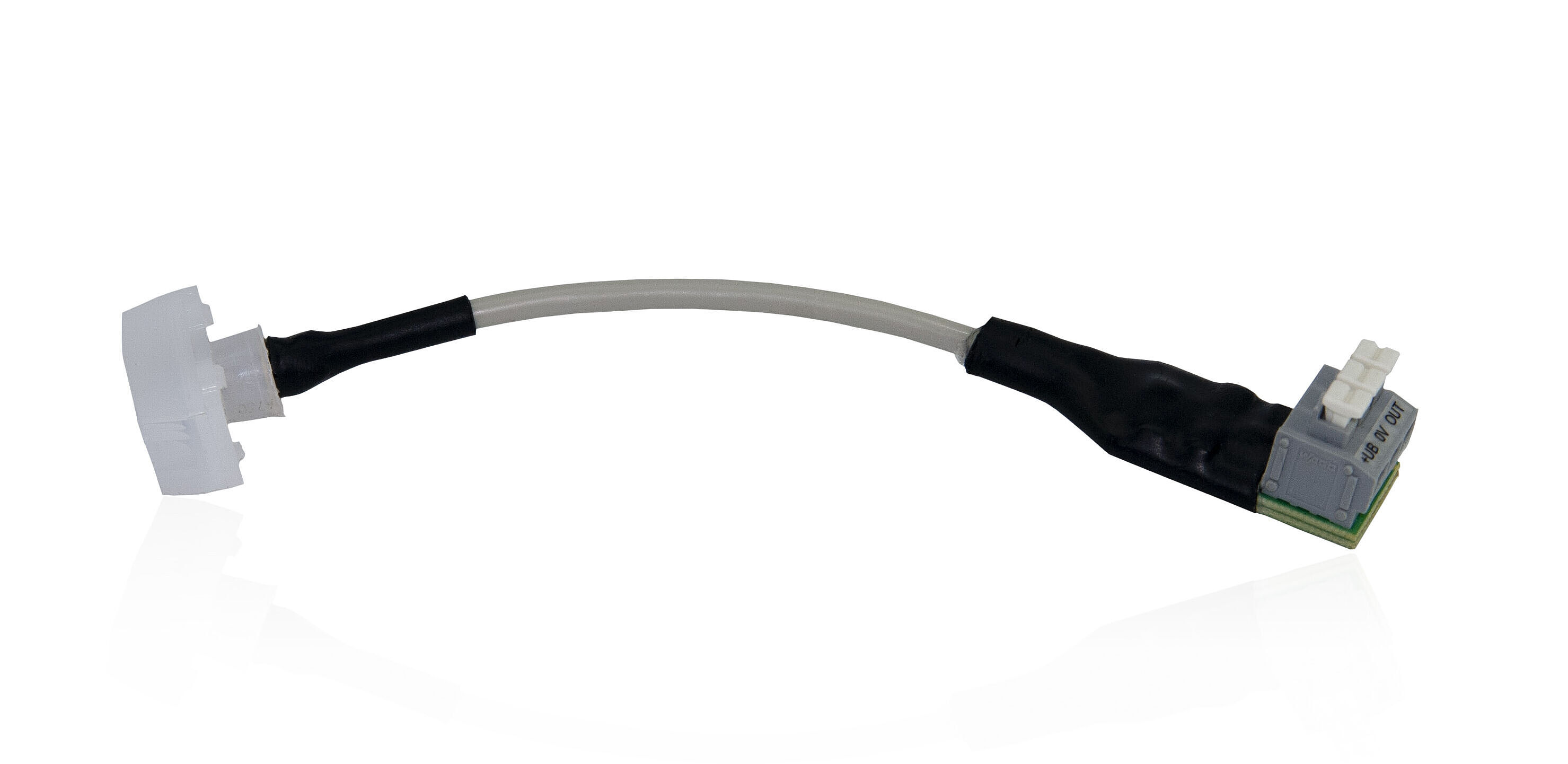

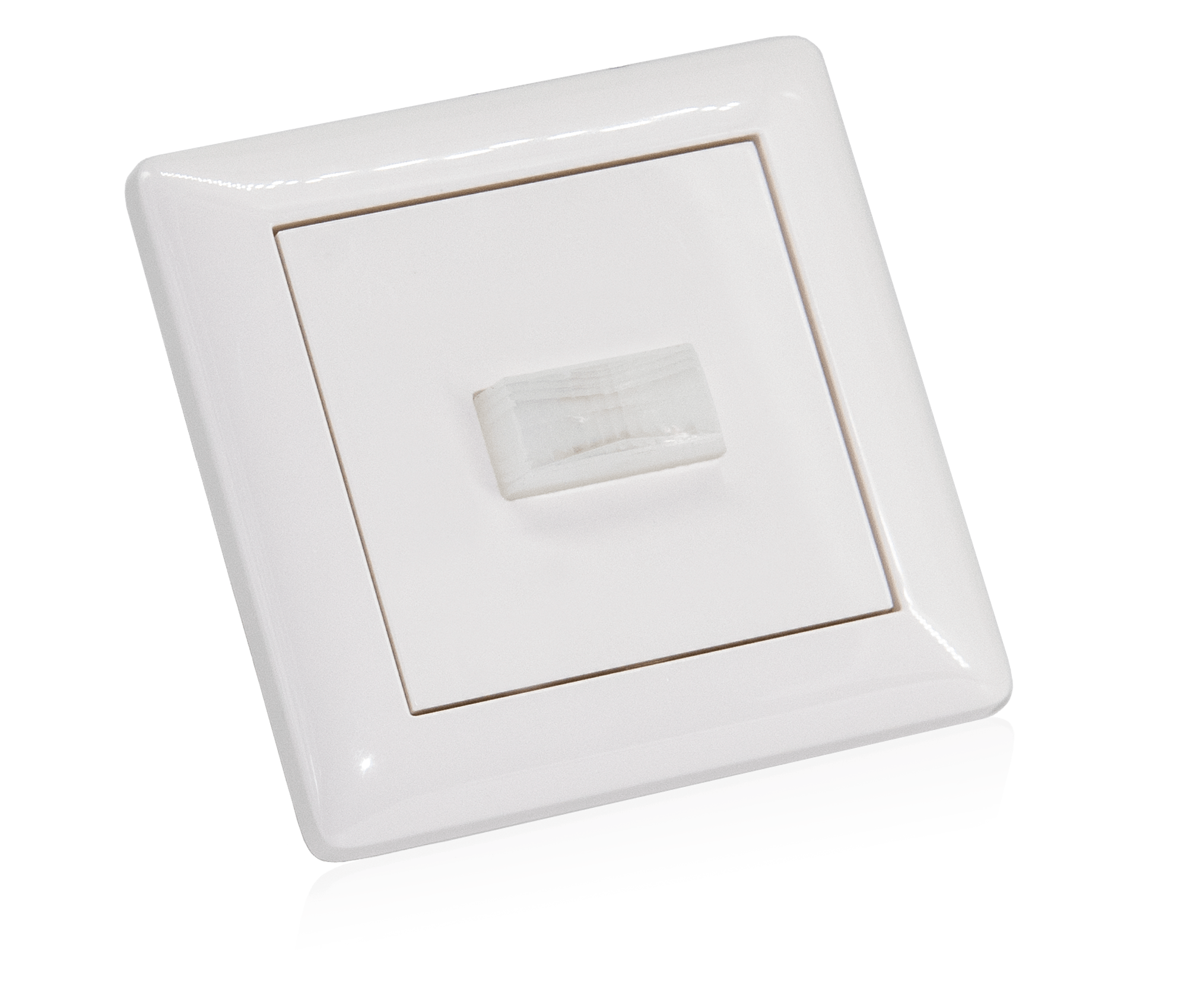

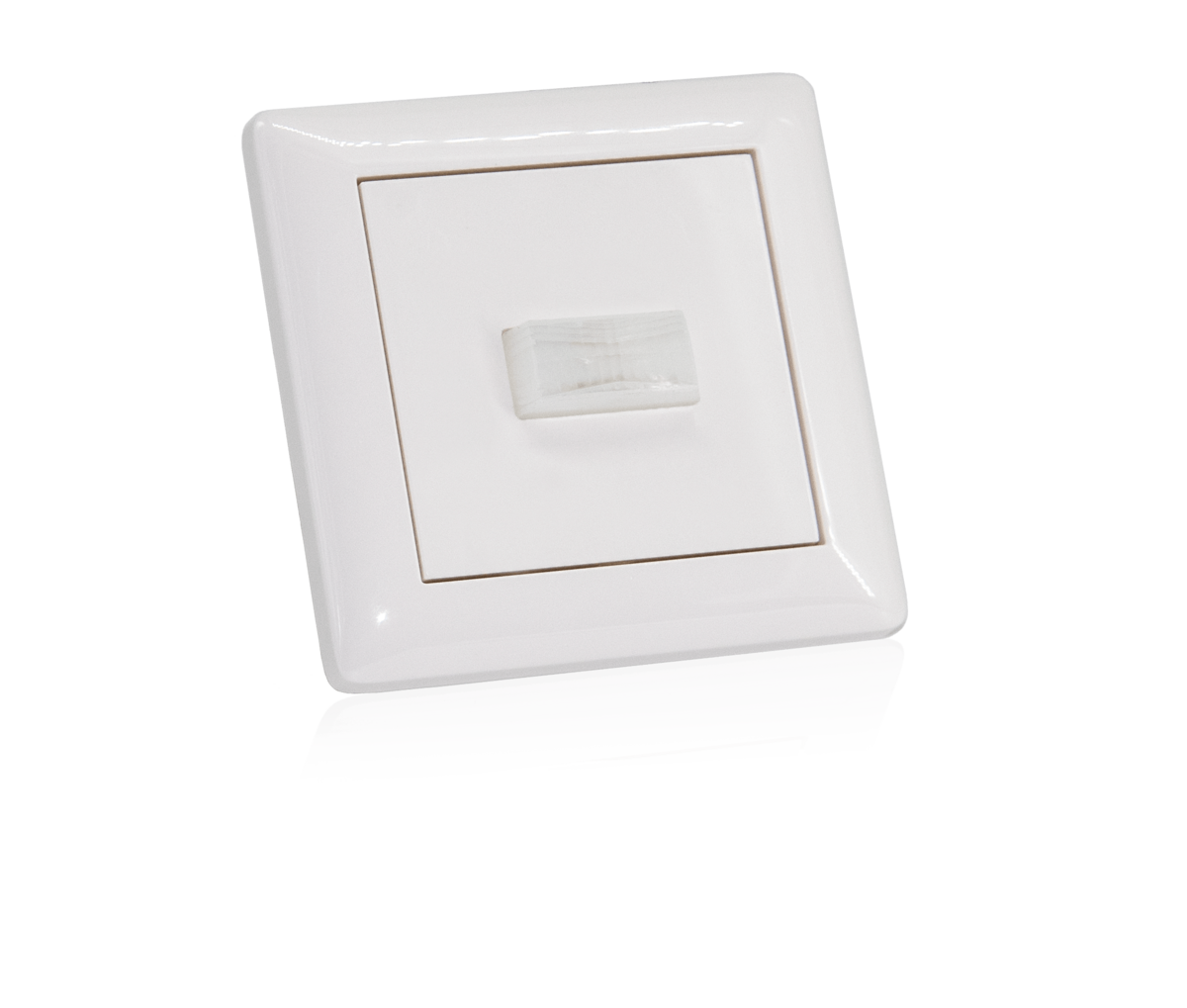

The BW-07 Motion Sensor is based on PIR monitoring technology. Due to the integrated line amplifier, the length of the control line up to the I/O Module or 24V power module can be up to 100m. Thanks to its small design, the Motion Sensor can be easily integrated into devices or luminaires.
The ISYGLT BW-07 Motion Sensor is based on passive-infrared monitoring technology. Here, 88 zones are monitored radially via the small rectangular lens. The detection range at a distance of 1m is 7.8m x 0.8m. Due to the integrated line amplifier, the length of the control line up to the I/O Module or 24V power module can be up to 100m. Thanks to its small design, the Motion Sensor can be easily integrated into devices or luminaires.
If required, please enquire about the options for corresponding switch ranges from the various manufacturers.
| Operating voltage | 12V to 30V DC |
| Current consumption | max. 10mA without load |
| Output | Vin -1.5V, 200mA short-circuit proof PNP, max. 100m cable length to input module |
| Connection | Spring-loaded terminal 3-pole |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +70°C |
| Humidity | 0-85% r.h. non-condensing |
| Protection class | IP20 |
Article no.: 80087184
The BW-07 PIR Motion Sensor is ideally suited for narrow long areas such as hallways or corridors. Due to the integrated line amplifier, the length of the control line up to the I/O module or 24V power component can be up to 100m.
