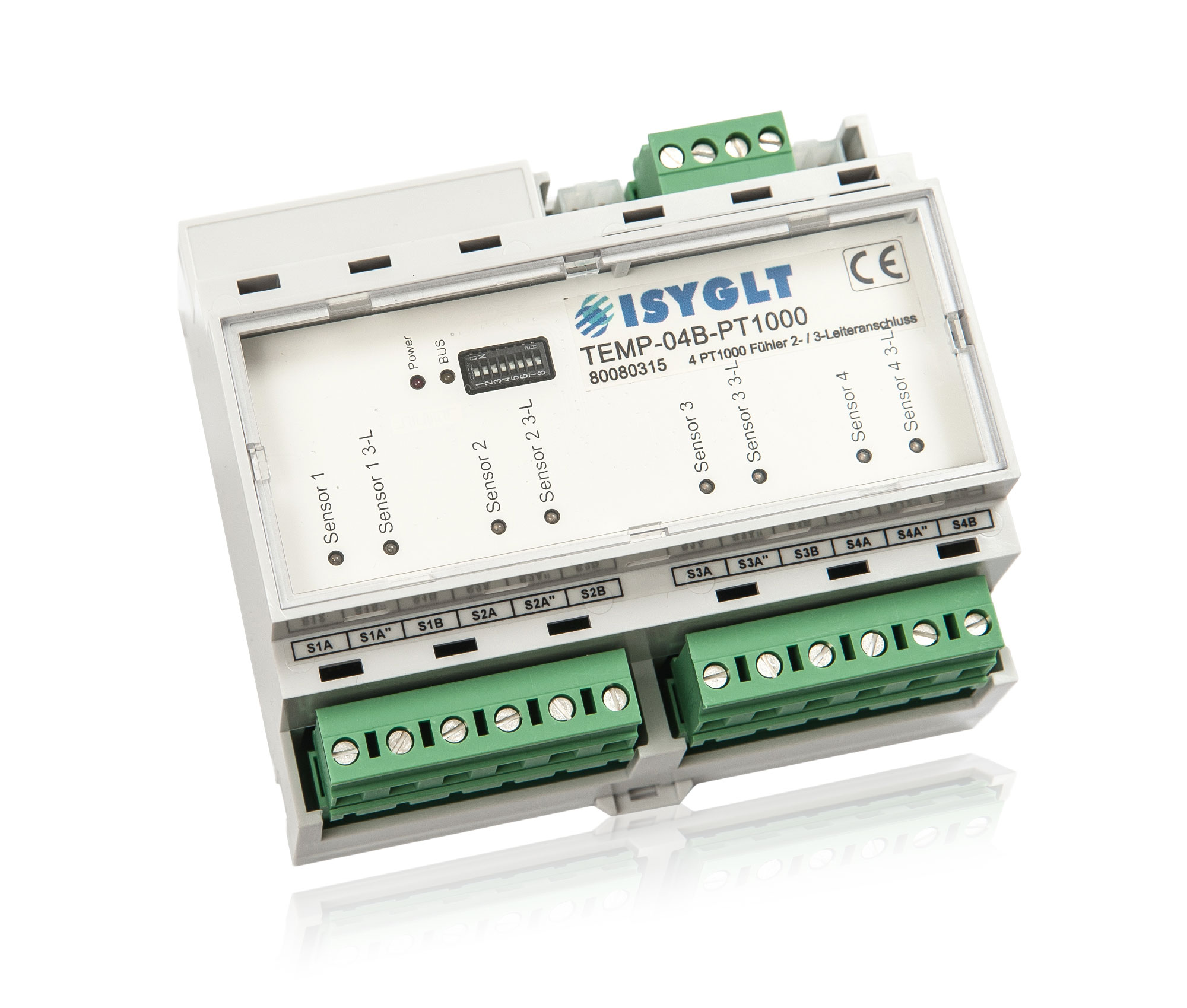

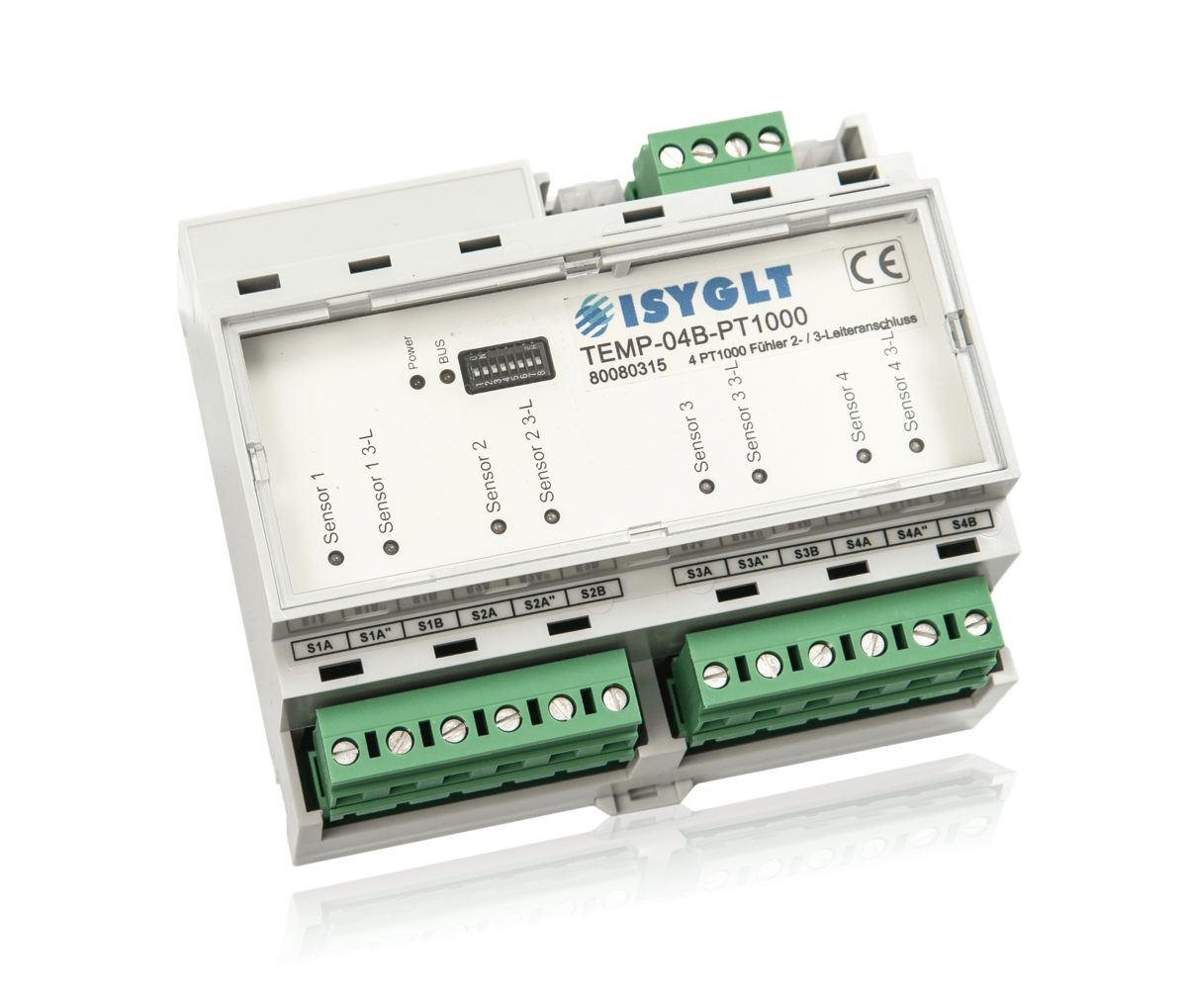

Temperature Module TEMP-04B-PT1000

The Temperature Module is used to connect PT1000 temperature sensors which are widely used on the market.

Quick Facts

  • For connection of 4x temperature sensor PT1000
  • 2- or 3-wire
  • Can process temperature values from -100°C to +300°C
  • Resolution from 0.1K

The Temperature Module is used to connect PT1000 temperature sensors which are widely used on the market. There are 4 inputs available. At each input, a sensor can be operated either in 2-wire or 3-wire wiring. The difference in the connection variants lies in the accuracy of the evaluation. In the 2-wire circuit, the line resistance is added to the sensor resistance. In the 3-wire circuit, the line resistance is taken into account in the evaluation - thus a considerably higher measuring accuracy can be achieved. The transmission of the data to the ISYGLT-BUS takes place optionally as 8- or 16-bit value. The measuring range in this technology is defined from -100°C to +300°C, but depends on the design and specification of the sensor used.

Electrical Data

Operating voltage 12-27V DC
Current consumption max. 50mA at 24V DC
Measuring range 8-bit mode:
-100°C to +250°C (depending on sensor used) Signed Byte max. +127°C!
resolution 1°C

16-bit mode:
-100°C to +300°C (depending on sensor used)
resolution 0,1°C
Temperature sensor standard PT1000, 2-wire or 3-wire
Mounting DIN rail 35mm
Connection screw terminals 1.5mm² pluggable
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Operating temperature -10...+50°C
Storage temperature -25...+70°C
Humidity 0...85 % r.h. non-condensing
Protection IP 30

Design, Dimensions, Weight

Design DIN rail mounting plastic housing light grey, snap-on on 35mm DIN rail 6 HP
Dimensions WxHxD 106x90x59mm
Weight 300g

Ordering Data and Conformity

Type designation TEMP-04B-PT1000
Article no. 80080315
Make ISYGLT
Conformity CE

DIP switch

8-pole DIP switch for setting the ISYGLT BUS address (0-127) is located under the cover of the module.


Function Indicators (LEDs on the Module)

LEDDesignationStateMeaning
redPowerOffNo operating voltage
OnOperating voltage, no error
yellowBUSOffBUS wiring error
OnError BUS communication (address)
blinkingInterference-free data transmission via the BUS line
4x greenSensorOffNo sensor
OnSensor detected and in function
4x greenSensor 3-LOffNo sensor
On3-wire connected or in 2-wire operation the required connection was inserted

Parameterisation with ProgramDesigner

In the ISYGLT ProgramDesigner it is possible to enter a correction for each sensor.
Further special configurations and changes to the VISOR curve are only possible at the factory.


Pin Assignment

4-pole plug top right

+Ub Voltage supply +12-24V
0V Voltage supply 0V
A Subnet (BUS A, RS-485)
B Subnet (BUS B, RS-485)

2x P-COM connectors

P-COM Subnet and operating voltage

4-pole plug bottom left

S1A 1st sensor PT1000 sensor connection A
S1A" 1st sensor PT1000 sensor connection 3rd wire, or connection to SxA
S1B 1st sensor PT1000 sensor connection B
S2A 2nd sensor PT1000 sensor connection A
S2A" 2nd sensor PT1000 sensor connection 3rd wire, or connection to SxA
S2B 2nd sensor PT1000 sensor connection B

4-pole plug bottom right

S3A 3rd sensor PT1000 sensor connection A
S3A" 3rd sensor PT1000 sensor connection 3rd wire, or connection to SxA
S3B 3rd sensor PT1000 sensor connection B
S4A 4th sensor PT1000 sensor connection A
S4A" 4th sensor PT1000 sensor connection 3rd wire, or connection to SxA
S4B 4th sensor PT1000 sensor connection B
